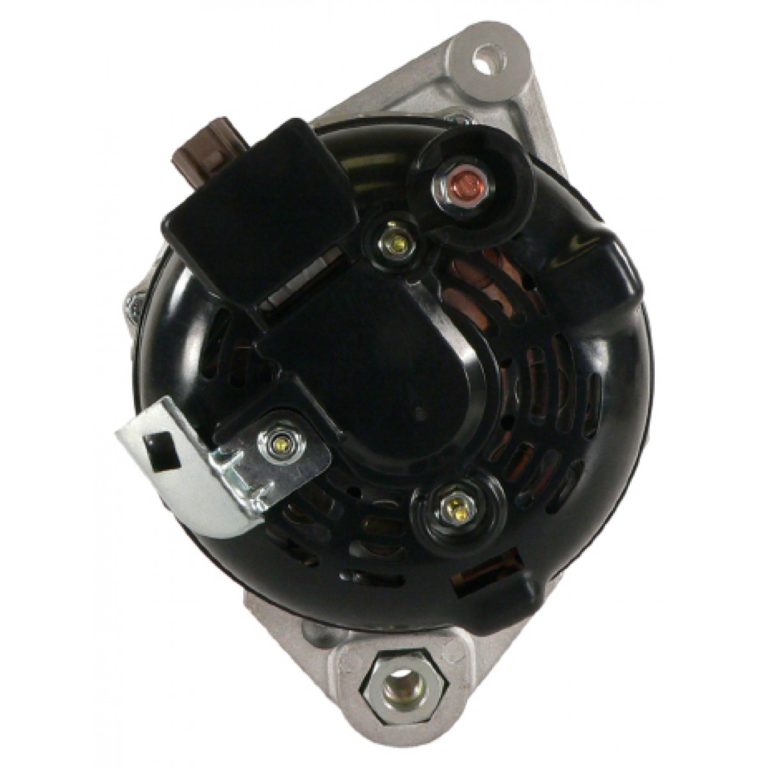

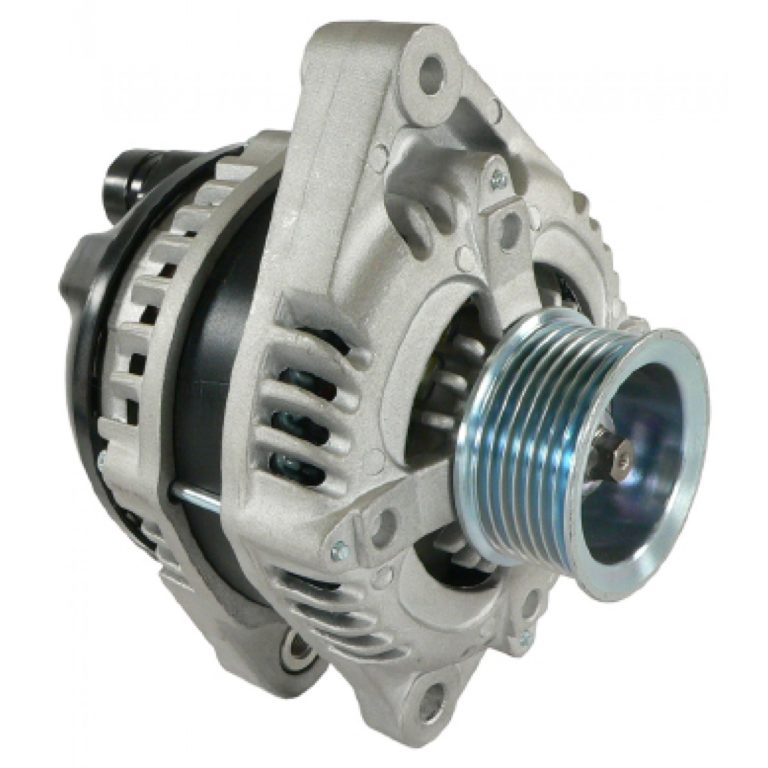

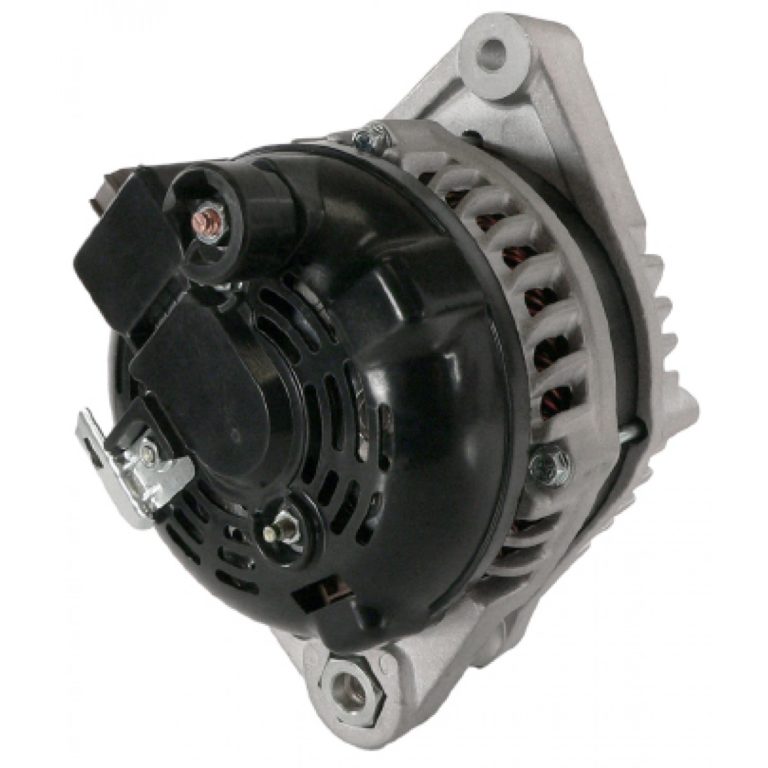

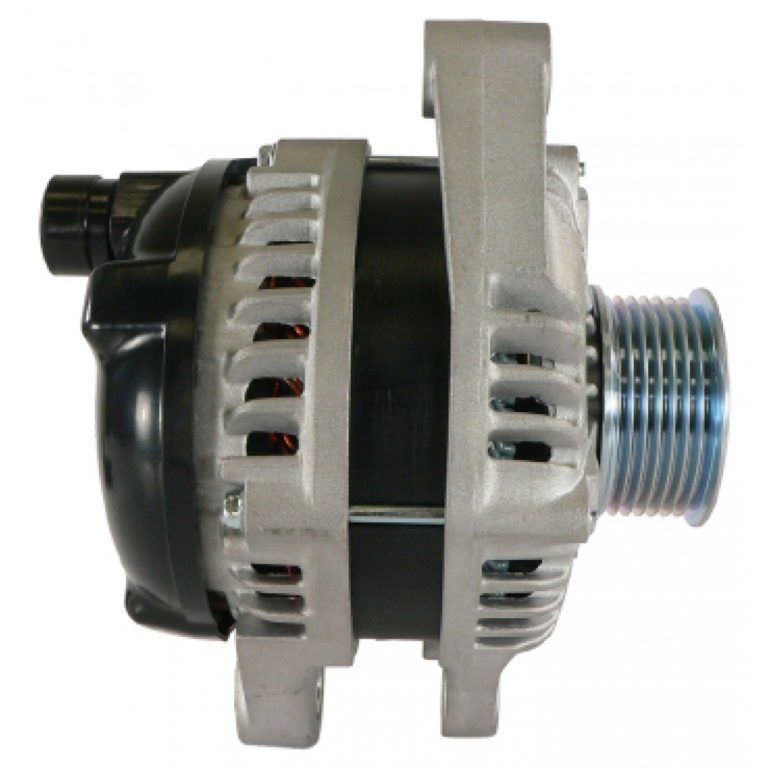

NEW Alternator for ACURA TSX 2009-2014 | HONDA ACCORD 2008-2012; AND0511, 104210-5890, 210-0644, [HONDA 06311-R40-505, 06311R40-505, 31100R40A01, 31100-R40-A01, CSF89]; LESTER 11390

$269.99

Email

Specifications

UNIT TYPE Alternator
FAMILY Denso SC (Hairpin)
VOLT 12
AMPS 130
REGULATOR CLOCK 10:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 8.700mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 M10x1.25
MOUNT HOLE 3 TYPE Threaded
MOUNTING EAR THICKNESS 1.181″
MOUNTING EAR THICKNESS 30mm
MOUNTING EAR 2 THICKNESS 0.594″
MOUNTING EAR 2 THICKNESS 15.100mm
MOUNTING EAR 3 THICKNESS 0.906″
MOUNTING EAR 3 THICKNESS 23mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 IG
TERMINAL 3 SIZE Spade
TERMINAL ID 4 C
TERMINAL 4 SIZE Spade
TERMINAL ID 5 L
TERMINAL 5 SIZE Spade
TERMINAL ID 6 FR
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 7
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.559″
ADD’L INFO ALSO USED IN EUROPE:

HONDA ACCORD VIII 2.4L CU 2008-15

7-GROOVE PULLEY 60mm OD

DIFFERENT PLUG FROM EARLIER ACCORDS



WRITE YOUR OWN REVIEW


We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AND0511
ARROWHEAD (OEM) VND0511
J & N 400-52394R
LESTER 11390
BBB 11390
BBB NEW 11390
DENSO 104210-5890
DENSO FIRST TIME FIT 210-0644
DIXIE A-80395
EXCEL 10877
FAMILY Denso Hairpin
HONDA 31100-R40-A01
HONDA 06311-R40-505
HONDA CSF89
LUCAS ELECTRICAL EUROPE LRA03974
REMY LIGHT DUTY 12870
USA INDUSTRIES A3390
WILSON 90-29-5722
WILSON NEW 90-29-5722
WOOD AUTO ALT30483
WORLDWIDE 12870

Part fit

Year Make Model Engine
Year Make Model Engine
2008 - 2012 HONDA ACCORD 2.4L
2009 - 2014 ACURA TSX 2.4L
