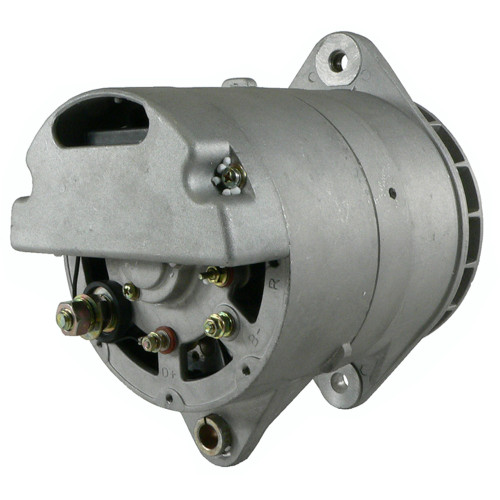

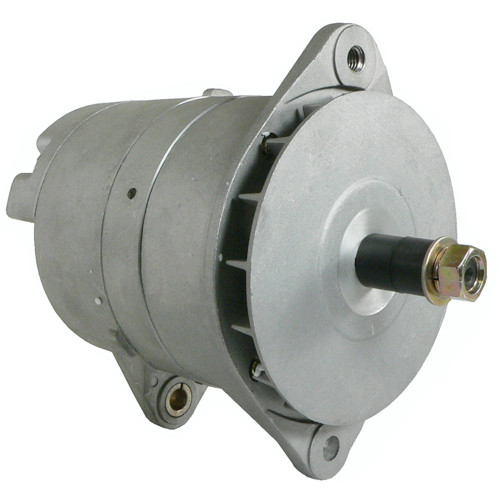

NEW Alternator for ALLIS CHALMERS, CATERPILLAR, CUMMINS, FIAT-ALLIS, JOHN DEERE & TUG Applications; 400-24091, 0R3482, 0R3668, AT85458, SE501370, [OSCH 0-122-469-001, 0-122-469-002, 0-122-469-003, …]; LESTER 12165, 12166

$299.99



Email

Specifications

UNIT TYPE Alternator
CRITICAL NOTE Requires Ignition or Trio Activation, Unit is NOT Compatible with systems utilizing Self Excited Activation
VOLT 24
AMPS 50
REGULATOR CLOCK 12:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 7/16-14
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 13mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.563″
MOUNTING EAR THICKNESS 14.300mm
MOUNTING EAR 2 THICKNESS 0.551″
MOUNTING EAR 2 THICKNESS 14mm
MOUNTING EAR 3 THICKNESS 0.787″
MOUNTING EAR 3 THICKNESS 20mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE 7/16/2014
TERMINAL ID 3 D+
TERMINAL 3 SIZE M4x0.7
TERMINAL ID 4 B-
TERMINAL 4 SIZE M5x0.8
POLARITY Negative
SHAFT PULLEY OD 0.875″
SHAFT PULLEY OD 22.220mm
WARRANTY 1 Year
ADD’L INFO Includes Fan



WRITE YOUR OWN REVIEW





We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD ABO0001, ABO0120, BAL9933X, BAL9934X
ATLANTIC QUALITY PARTS 1400-0534
BOSCH 0122469001, 0-122-469-001, 0122469002, 0-122-469-002, 0122469003, 0-122-469-003, 0122469004, 0-122-469-004, 1-120-240-038, AL9933X, AL9934X
CATERPILLAR 0R3482, 0R3668, 1005046, 100-5046, 3V8825, 6N9294, 7N9720, 7T6172, 9G9538
J&N ELECTRICAL PRODUCTS 400-24091
JOHN DEERE AT85458, SE501370, TY25949, TY6681
LESTER 12165, 12166
VOLVO 10039152

Applications

Part fit

MAKE MODEL ENGINE YEAR
Allis Chalmers 6138 Diesel Engine 1986
Allis Chalmers 685 Diesel Engine 1986
Allis Chalmers 945 25000 Diesel 1986
Caterpillar 120G Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 12G Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 130G Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 140G Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 140H Cat. 330 1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar 14G Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 16G Cat. 340 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 215 Cat. 320 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Caterpillar 215B Cat. 330 1985, 1986, 1987
Caterpillar 215C Cat. 330 1987, 1988, 1989
Caterpillar 215D Cat. 330 1989, 1990, 1991, 1992, 1993
Caterpillar 219 Cat. 330 1987, 1988, 1989
Caterpillar 219D Cat. 330 1989, 1990, 1991, 1992
Caterpillar 225 Cat. 320 1982, 1983, 1984, 1985, 1986
Caterpillar 225B Cat. 320 1986, 1987, 1988, 1989
Caterpillar 225D Cat. 320 1989, 1990, 1991, 1992
Caterpillar 229 Cat. 320 1986, 1987, 1988, 1989
Caterpillar 229D Cat. 330 1989, 1990, 1991
Caterpillar 231D Cat. 320 1989, 1990, 1991, 1992, 1993
Caterpillar 235 Cat. 330 1982, 1983, 1984, 1985
Caterpillar 235B Cat. 330 1985, 1986, 1987, 1988
Caterpillar 235C Cat. 330 1988, 1989, 1990, 1991, 1992
Caterpillar 235D Cat. 330 1991, 1992, 1993, 1994
Caterpillar 245 Cat. 340 1982, 1983, 1984, 1985, 1986, 1987, 1988
Caterpillar 245B Series II Cat. 340 1990, 1991, 1992
Caterpillar 245B Cat. 340 1988, 1989, 1990
Caterpillar 245D Cat. 340 1992, 1993, 1994
Caterpillar 3208 Al 1986, 1987, 1988, 1989, 1990
Caterpillar 330 L Cat. 330 1992, 1993, 1994, 1995, 1996
Caterpillar 330 LN Cat. 330 1992, 1993, 1994, 1995, 1996
Caterpillar 330 Cat. 330 1992, 1993, 1994, 1995, 1996
Caterpillar 3304 Al 1986, 1987, 1988, 1989, 1990
Caterpillar 3306 All 1985, 1986, 1987, 1988, 1989, 1990
Caterpillar 330B L Cat. 330 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar 330B LN Cat. 330 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar 330B Cat. 330 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar 3406 All 1986, 1987, 1988, 1989, 1990
Caterpillar 3408 All 1986, 1987, 1988, 1989, 1990
Caterpillar 3412 All 1986, 1987, 1988, 1989, 1990
Caterpillar 350 L Track Type Cat. 330 1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar 350 Track Type Cat. 330 1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar 508 Cat. 320 1987, 1988, 1989
Caterpillar 518 Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 528 Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 530B Cat. 330 1992, 1993, 1994, 1995, 1996, 1997, 1998
Caterpillar 583K D-342 Diesel 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
Caterpillar 589 Cat. 340 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 591 Cat. 341 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 613B Cat. 320 1982, 1983, 1984
Caterpillar 613C Cat. 320 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 615C Cat. 330 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 621B Cat. 340 1982, 1983, 1984, 1985, 1986
Caterpillar 621E Cat. 340 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 623B Cat. 340 1985, 1986
Caterpillar 627B Cat. 330 1985, 1986
Caterpillar 657E Cat. 341 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 768C Cat. 340 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 769C Cat. 340 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 771C Cat. 340 1992, 1993
Caterpillar 772B Cat. 341 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 773B Cat. 341 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 776B Cat. 350 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 776C Cat. 350 1992, 1993
Caterpillar 777B Cat. 350 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 777C Cat. 350 1992, 1993
Caterpillar 784 Cat. 351 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 785 Cat. 351 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 789 Cat. 351 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 815B Soil Cat. 330 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 816 Landfill Cat. 330 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
Caterpillar 816B Landfill Cat. 330 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 825C Soil Cat. 340 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 825G Soil Cat. 340 1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar 836 Landfill Cat. 340 1993, 1994, 1995, 1996
Caterpillar 910 D-393 Diesel 1985, 1986, 1987, 1988, 1989
Caterpillar 916 Cat. 320 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 926 Cat. 320 1985, 1986, 1987
Caterpillar 926E Cat. 320 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar 936 Cat. 330 1983, 1984, 1985, 1986, 1987
Caterpillar 936E Cat. 330 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 936F Cat. 330 1992, 1993, 1994, 1995, 1996
Caterpillar 938F Cat. 311 1994, 1995, 1996, 1997
Caterpillar 941B Cat. 330 1982, 1983
Caterpillar 943 Cat. 320 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 950E Cat. 330 1987, 1988, 1989, 1990, 1991
Caterpillar 950F Cat. 311 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 953 Cat. 320 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar 963 Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 963B Cat. 330 1995, 1996
Caterpillar 966C Cat. 330 1982, 1983
Caterpillar 966D Cat. 330 1985, 1986, 1987
Caterpillar 966E Cat. 330 1987, 1988, 1989, 1990
Caterpillar 966F Cat. 330 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar 973 Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar 977L Cat. 330 1982
Caterpillar 980B Cat. 330 1982, 1983, 1984
Caterpillar 980C Cat. 340 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar D10N Cat. 341 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar D11N Cat. 340 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar D20D Cat. 311
Caterpillar D250B Cat. 330
Caterpillar D250D Cat. 311
Caterpillar D25D Cat. 330
Caterpillar D300B Cat. 330
Caterpillar D300D Cat. 330
Caterpillar D30C Cat. 330
Caterpillar D30D Cat. 330
Caterpillar D350C Cat. 330
Caterpillar D350D Cat. 330
Caterpillar D350E Series II Cat. 3406
Caterpillar D350E Cat. 340
Caterpillar D35C Cat. 330
Caterpillar D400D Cat. 340
Caterpillar D400E Series II Cat. 3406
Caterpillar D400E Cat. 340
Caterpillar D40D Cat. 340
Caterpillar D44B Cat. 340
Caterpillar D4H Cat. 320 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar D5 Cat. 330 1982, 1983, 1984
Caterpillar D550B Cat. 340
Caterpillar D5H Cat. 330 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar D6C Cat. 330 1982, 1983, 1984
Caterpillar D6D Cat. 330 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Caterpillar D6H Cat. 330 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar D7G Cat. 330 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar D7H Cat. 330 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar D8L Cat. 340 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar D8N Cat. 340 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar D9N Cat. 340 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar E240 Cat. 3304 1985, 1986, 1987, 1988, 1989, 1990
Caterpillar E300 Cat. 3306 1985, 1986, 1987, 1988, 1989, 1990, 1991
Caterpillar E300B Cat. 3306T 1988, 1989, 1990, 1991, 1992, 1993, 1994
Caterpillar EL180 Cat. 3204 1985, 1986, 1987, 1988, 1989
Caterpillar EL240 Cat. 3304 1985, 1986, 1987, 1988, 1989, 1990
Caterpillar EL300 Cat. 3306 1985, 1986, 1987, 1988, 1989, 1990, 1991
Caterpillar EL300B Cat. 3306T 1988, 1989, 1990, 1991, 1992, 1993, 1994
Caterpillar FB227 Cat. 320 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar IT18B Cat. 320 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar IT24B Cat. 311 1994, 1995, 1996, 1997
Caterpillar IT28B Cat. 320 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar Various Models 320 1986, 1987, 1988, 1989, 1990
Caterpillar Various Models 330 1986, 1987, 1988, 1989, 1990
Caterpillar Various Models 340 1986, 1987, 1988, 1989, 1990
Caterpillar Various Models 341 1986, 1987, 1988, 1989, 1990
Caterpillar Various Models 350 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar Various Models 351 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Cummins C Series 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Fiat-Allis 10C
Fiat-Allis 14C
Fiat-Allis 260B
Fiat-Allis 261B
Fiat-Allis 645B
Fiat-Allis 65B
Fiat-Allis 745
Fiat-Allis 8B
Fiat-Allis 8BL CO3 Diesel 1985
Fiat-Allis 8C 8065 Diesel 1985
Fiat-Allis 945
Fiat-Allis 945B
Fiat-Allis FD-10C 8365 Diesel 1985
Fiat-Allis FD-20
Fiat-Allis FD-30
Fiat-Allis FD-5
Fiat-Allis FD-7
Fiat-Allis FD-9
Fiat-Allis FG-75
Fiat-Allis FG-85
Fiat-Allis FG-95
Fiat-Allis FL-10C
Fiat-Allis FL-14C
Fiat-Allis FL-20
Fiat-Allis FL-5
Fiat-Allis FL-7
Fiat-Allis FL-9
Fiat-Allis FR-10
Fiat-Allis FR-12
Fiat-Allis FR-15 8365 Diesel 1986
Fiat-Allis FR-20 8215 Diesel 1991
Fiat-Allis FR-35
Fiat-Allis FS-11
Fiat-Allis FS-20
Fiat-Allis FS-21
Fiat-Allis FS-22
Fiat-Allis FS-23
Fiat-Allis HD-16DD / PS 16000 Diesel 1982
Fiat-Allis HD-21 21000 Diesel 1982
Fiat-Allis HD-31
Fiat-Allis HD-41 Cummins VT-171 1985
John Deere 670B JD 6.8L 142HP Ds 1982
John Deere 672B JD 6.8L 142HP Ds 1988
John Deere 690E LC JD 6.8L 140HP Ds 1993
John Deere 690E LC JD 6.8L 140HP Ds
John Deere 690E JD 6.8L 140HP Ds
John Deere 744E All
John Deere 762B 7600cc, 7.6L 6-Cyl John Deere 6-466A
John Deere 770B / BH JD 7.6L 162HP Ds
John Deere 770B 1982
John Deere 772B / BH JD 7.6L 165HP Ds
John Deere 772B 1982
John Deere 850 All 1978, 1979, 1980, 1981
John Deere 850B 619 Diesel 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere 855 JD 10.1L 200HP Ds 1979, 1980, 1981
John Deere 862B All
John Deere JD762B
Tug GPU 400-140 Cummins QSB 6.7 Tier
