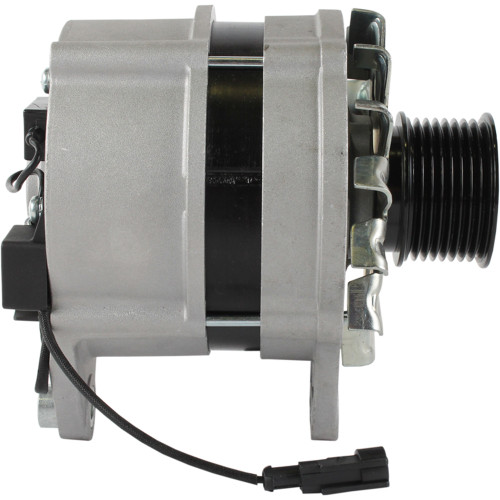

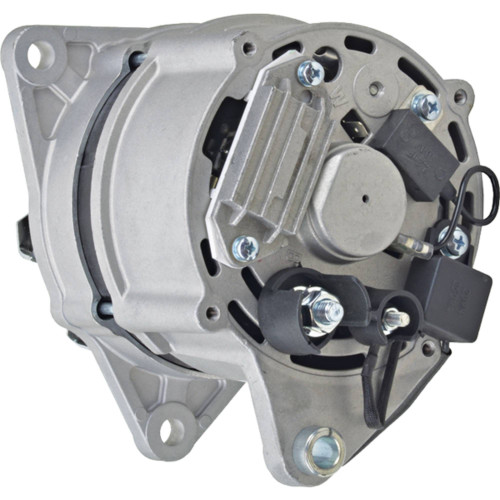

NEW Alternator for CASE IH & NEW HOLLAND Tractors; 400-29024, 1100-0599, 1700-0541, 4800-0502, 5000-0501, 47383500, 87311822; LESTER 12785

$199.99

Email
Categories: , ,

Specifications

UNIT TYPE Alternator
FAMILY Letrika/MAHLE AAK
VOLT 12
AMPS 120
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 10.200mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 10.200mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.433″
MOUNTING EAR THICKNESS 11mm
MOUNTING EAR 2 THICKNESS 0.484″
MOUNTING EAR 2 THICKNESS 12.300mm
MOUNTING EAR 3 THICKNESS 0.795″
MOUNTING EAR 3 THICKNESS 20.200mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE Pin
TERMINAL ID 4 W
TERMINAL 4 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 8
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.343″
PULLEY OUTER DIAMETER 59.500mm
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD IA1352, IA1504, MG223
ATLANTIC QUALITY PARTS 1100-0599, 1700-0541, 4800-0502, 5000-0501
CASEIH 47383500, 87311822
FORD/NEW HOLLAND 47383500, 87311822
IVECO 504271461, 5801453378
J&N ELECTRICAL PRODUCTS 400-29024
LANDINI 6510784M92
LESTER 12785
LETRIKA/ISKRA 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA 1205, IA 1352, IA 1504
LUCAS ELECTRIC LRA03793
MAHLE 11.203.302, 11.203.714, 11.204.327, 11.204.484, 11.204.490, AAK1832, AAK4314, AAK4810, AAK4858, AAK4860, IA1352, MG223, MG673
PERKINS T412776

Applications

Part fit

MAKE MODEL ENGINE YEAR
Case/International Harvester Farmall 105U 4-274 Diesel 2008
Case/International Harvester Farmall 65C 4-195 Diesel 2008
Case/International Harvester Farmall 70 4-238 Diesel 2009
Case/International Harvester Farmall 75C 4-195 Diesel 2008
Case/International Harvester Farmall 75N 4-195 Diesel 2009
Case/International Harvester Farmall 80 4-238 Diesel 2009
Case/International Harvester Farmall 85U 4-274 Diesel 2008
Case/International Harvester Farmall 90 4-274 Diesel 2007
Case/International Harvester Farmall 95 4-274 Diesel 2007
Case/International Harvester Farmall 95N 4-274 Diesel 2009
Case/International Harvester Farmall 95U 4-274 Diesel 2008
Case/International Harvester JX1080U 4-274 Diesel 2004, 2005, 2006, 2007, 2008
Case/International Harvester JX1080U Case 4-274 Diesel 2004, 2005, 2006, 2007, 2008
Case/International Harvester JX1090U 4-274 Diesel 2004, 2005, 2006, 2007, 2008
Case/International Harvester JX1090U Case 4-274 Diesel 2004, 2005, 2006, 2007, 2008
Case/International Harvester JX1100U 4-274  Diesel 2004, 2005, 2006, 2007, 2008
Case/International Harvester JX1100U Case 4-274 Diesel 2004, 2005, 2006, 2007, 2008
New Holland T4020 3.2L 4cyl 64HP Diesel 2008
New Holland T4020V 3.2L 4cyl 64HP Diesel 2008
New Holland T4030 3.2L 4cyl 76HP Diesel 2008
New Holland T4030F 3.2L 4cyl 76HP Diesel 2008
New Holland T4030V 3.2L 4cyl 76HP Diesel 2008
New Holland T4040 4.5L 4cyl 84HP Diesel 2008
New Holland T4040F 3.2L 4cyl 87HP Diesel 2008
New Holland T4040V 3.2L 4cyl 87HP Diesel 2008
New Holland T4050 4.5L 4cyl 95HP Diesel 2008
New Holland T4050F 4.5L 4cyl 95HP Diesel 2008
New Holland T4050V 4.5L 4cyl 95HP Diesel 2008
New Holland T5040 4.5L 4cyl 85HP Diesel 2008
New Holland T5050 4.5L 4cyl 95HP Diesel 2008
New Holland T5060 4.5L 4cyl 105HP Diesel 2008
New Holland T5070 4.5L 4cyl 115HP Diesel 2008
New Holland TD5010 3.2L 4cyl 60HP Diesel 2008
New Holland TD5050 4.5L 4cyl 93HP Diesel 2008
New Holland TK4020F 3.2L 4cyl 65HP Diesel 2009
New Holland TK4020V 3.2L 4cyl 65HP Diesel 2009
New Holland TK4030 3.2L 4cyl 76HP Diesel 2009
New Holland TK4030F 3.2L 4cyl 76HP Diesel 2009
New Holland TK4030V 3.2L 4cyl 76HP Diesel 2009
New Holland TK4040 3.2L 4cyl 88HP Diesel 2009
New Holland TK4040M 3.2L 4cyl 88HP Diesel 2009
New Holland TK4050 4.5L 4cyl 94HP Diesel 2009
New Holland TK4050M 4.5L 4cyl 94HP Diesel 2009
New Holland TK4060 4.5L 4cyl 99HP Diesel 2009
New Holland TL100A 4.5L 4cyl 98HP Diesel 2004
New Holland TL80A 4.5L 4cyl 80HP Diesel 2004, 2005, 2006, 2007, 2008
New Holland TL90A 4.5L 4cyl 90HP Diesel 2004
