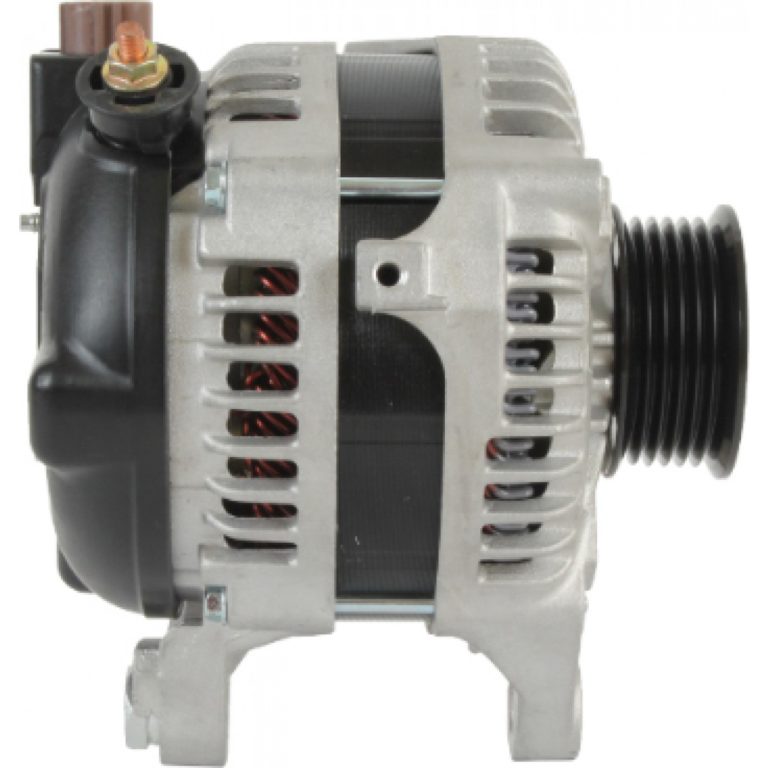

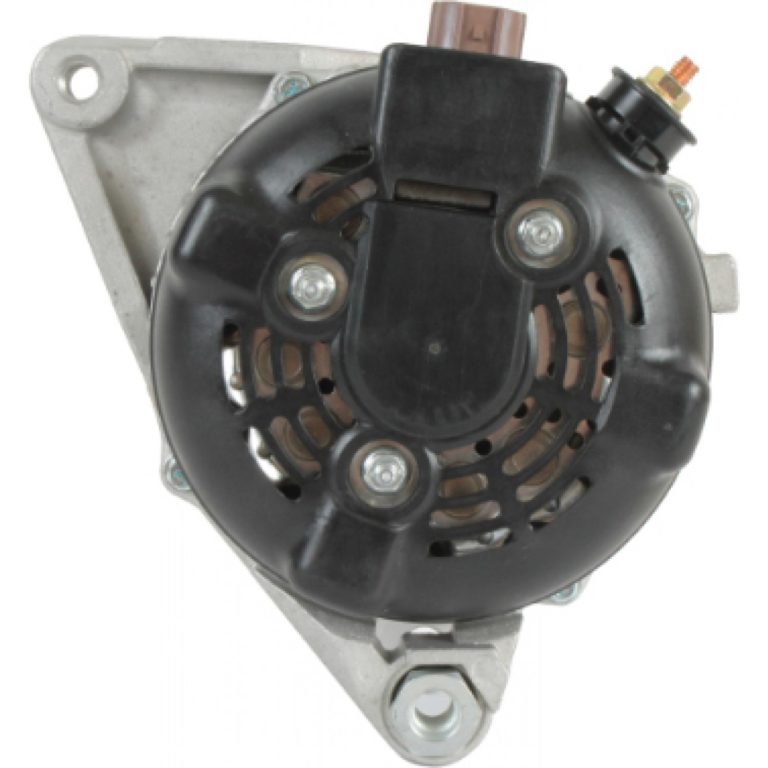

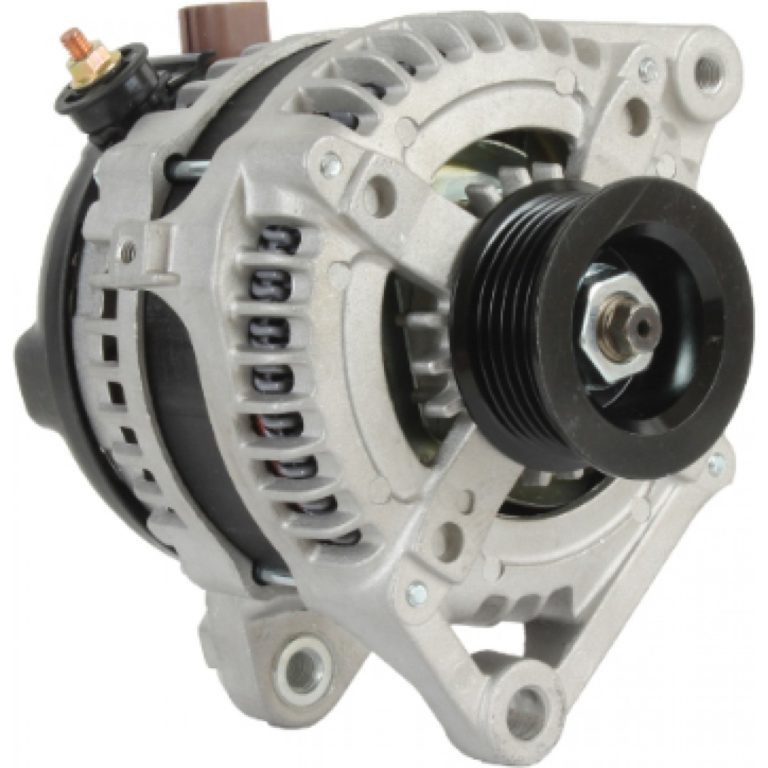

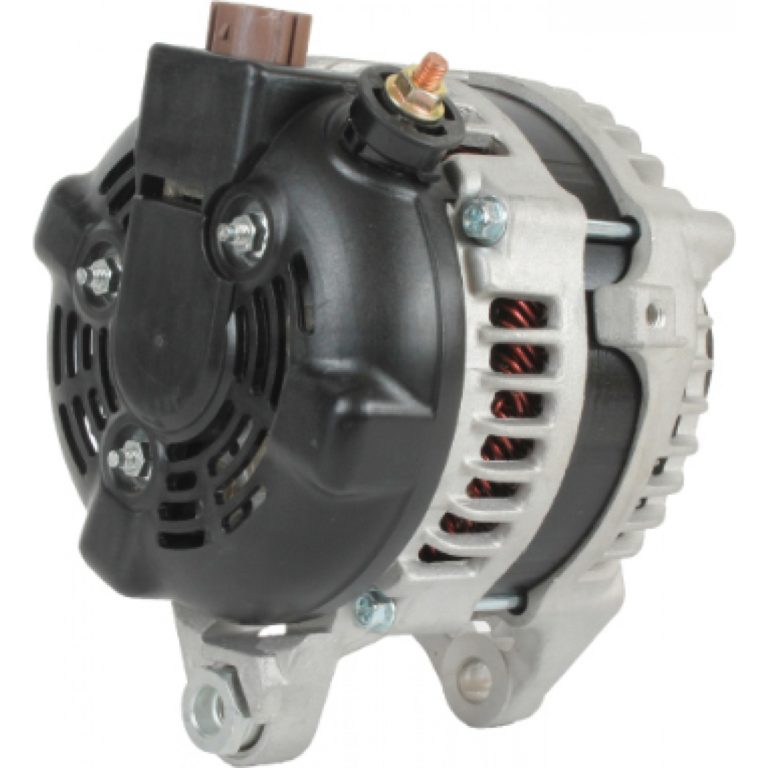

NEW Alternator for TOYOTA Highlander & Venza Applications; AND0513, 104210-2360, 104210-2570, 27060-0V030, 27060-36040; LESTER 11404, 11407

$299.99

Email

Specifications

UNIT TYPE Alternator
FAMILY Denso SC (Hairpin)
VOLT 12
AMPS 150
REGULATOR CLOCK 12:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 M10x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 M10x1.25
MOUNT HOLE 3 TYPE Threaded
MOUNTING EAR THICKNESS 0.866″
MOUNTING EAR THICKNESS 22mm
MOUNTING EAR 2 THICKNESS 0.591″
MOUNTING EAR 2 THICKNESS 15mm
MOUNTING EAR 3 THICKNESS 0.906″
MOUNTING EAR 3 THICKNESS 23mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 IG
TERMINAL 3 SIZE Spade
TERMINAL ID 4 S
TERMINAL 4 SIZE Spade
TERMINAL ID 5 L
TERMINAL 5 SIZE Spade
TERMINAL ID 6 FR
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 6
GROOVE OD 2.303″
GROOVE OD 58.500mm
PULLEY TYPE Decoupler
PULLEY OUTER DIAMETER 2.520″
PULLEY OUTER DIAMETER 64mm



WRITE YOUR OWN REVIEW


We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AND0513, VND0513
DENSO 104210-2360, 104210-2570
J&N 400-52395, 400-52395R
LESTER 11404, 11407
TOYOTA 27060-0V030, 27060-36040

Part fit

Year Make Model Engine
Year Make Model Engine
2009 - 2015 TOYOTA VENZA 2.7L
2010 - 2014 TOYOTA HIGHLANDER 2.7L
