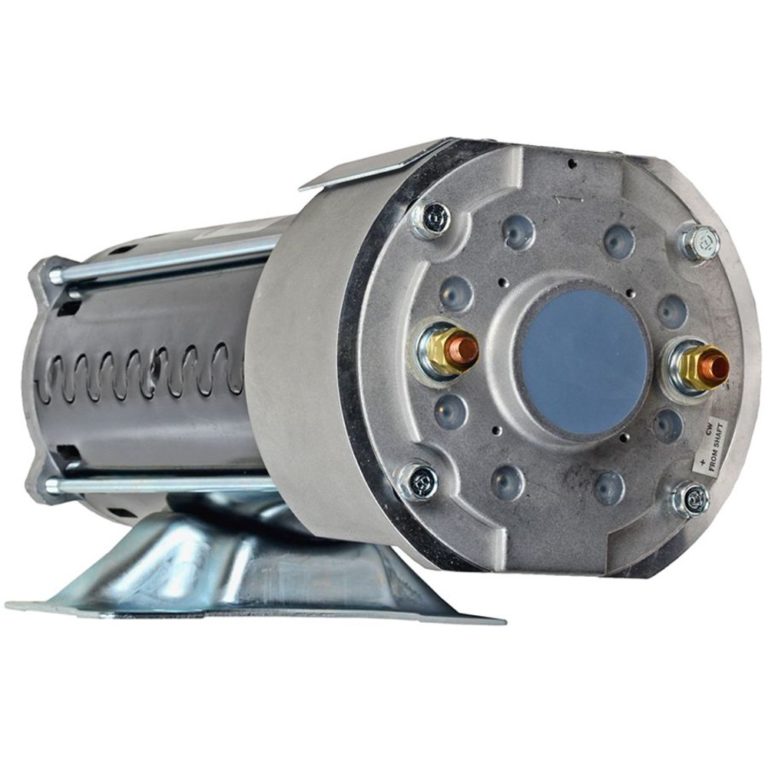

New SCOTT Hydraulic Motor for HALDEX-BARNES, AERIAL – SCISSOR LIFTS& SCOTT MOTORS Applications; SCO-4BD2273, 430-22049, 4BD02273, 4BD2273

$1,049.99

Available on backorder

Email

Specifications

UNIT TYPE Hydraulic Motor
CURRENT TYPE DC
ROTATION DIRECTION Clockwise
VOLT 24
POWER 2.985 kw
HP 4.003
AMPS 150
RPM 3600
OD 152.400 mm
OD 6″
LENGTH 14.197″
LENGTH 360.600 mm
TERMINAL 2 SIZE 5/16-24
TERMINAL 3 SIZE 5/16-24
SHAFT (2) Flat Sides with 1/4-20 Internal Thread
FIELD TYPE Permanent Magnet
WARRANTY 1 Year
(4) 5/16-18 Threaded Holes in DE Housing, (8) Brush Motor



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD LMN0008
ARROWHEAD 430-22049
ARROWHEAD (OEM) 4BD2273
J & N 430-22049
ARROWHEAD (OLD) LMN0008
LESTER 10773
EMS 10773N
MINNPAR 67-4741
SCOTT MOTORS 4BD2273
SCOTTS 2200945
SCOTTS 2200856
SCOTTS 4BD-02273
SKYJACK 106576
SKYJACK SJ-106576
SKYJACK 220856
WAI 82-6878
WAI (OLD) 82-6878
WESTERN MOTORS W-2273
