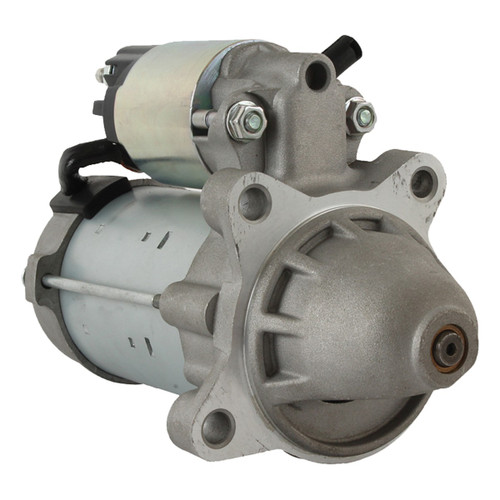

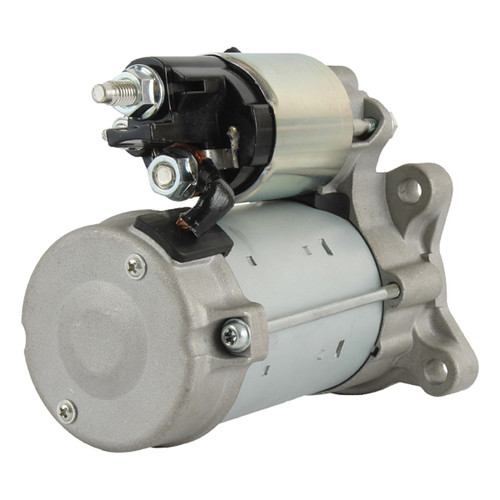

NEW Starter c/w START-STOP System for FORD E-Series, F-Series, Expedition & LINCOLN Navigator; 410-52472, [FORD DL3T11000AA, DL3Z11002A, DL3Z11002AFC, SA1026]; LESTER 19247

$144.99



Email

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Gear Reduction (PMGR)
START STOP SYSTEM COMPATIBLE TRUE
VOLT 12
POWER 1.200 kw
HP 1.609
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 12
GEAR OD 1.260″
GEAR OD 32mm
LENGTH 147 mm
LENGTH 5.787″
MOUNT HOLE ID 1 8.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 9.300mm
MOUNT HOLE 3 TYPE Unthreaded
REGISTRY OD 2.976″
REGISTRY OD 75.600mm
MOUNTING EAR DISTANCE 1 101.400mm
MOUNTING EAR DISTANCE 1 3.992″
MOUNTING EAR DISTANCE 2 2.374″
MOUNTING EAR DISTANCE 2 60.300mm
MOUNTING EAR DISTANCE 3 2.496″
MOUNTING EAR DISTANCE 3 63.400mm
WARRANTY 1 Year
ADD’L INFO M8 B+ & Motor Studs,
M6 S Terminal



Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SND0795
BOSCH SR7605X
DENSO 438000-041, 438000-0410, TN428000-0410
FORD DL3T11000AA, DL3Z11002A, DL3Z11002AFC, SA1026
LESTER 19247

Applications

Part fit

MAKE TYPE MODEL ENGINE YEAR
FORD Auto and Light Truck E-SERIES VANS 4.6L(281) V8 2014
FORD Auto and Light Truck E-SERIES VANS 5.4L(330) V8 2014
FORD Auto and Light Truck E-SERIES VANS 6.8L(415) V10 2014
FORD Auto and Light Truck EXPEDITION 5.4L(330) V8 2014
FORD Auto and Light Truck F-150 5.0L(302) V8 2014
FORD Auto and Light Truck F-150 6.2L(379) V8 2014
FORD Auto and Light Truck F-150 5.0L(302) V8 2015 – 2017
FORD Auto and Light Truck F-250 SUPER-DUTY 6.2L(379) V8 2014 – 2019
FORD Auto and Light Truck F-350 SUPER-DUTY 6.2L(379) V8 2014 – 2019
FORD Medium & Heavy-Duty Truck F-450 SUPER-DUTY 6.8L(415) V10 2013 – 2015
FORD Medium & Heavy-Duty Truck F-550 SUPER-DUTY 6.8L(415) V10 2013 – 2015
LINCOLN Auto and Light Truck NAVIGATOR 5.4L(330) V8 2014
