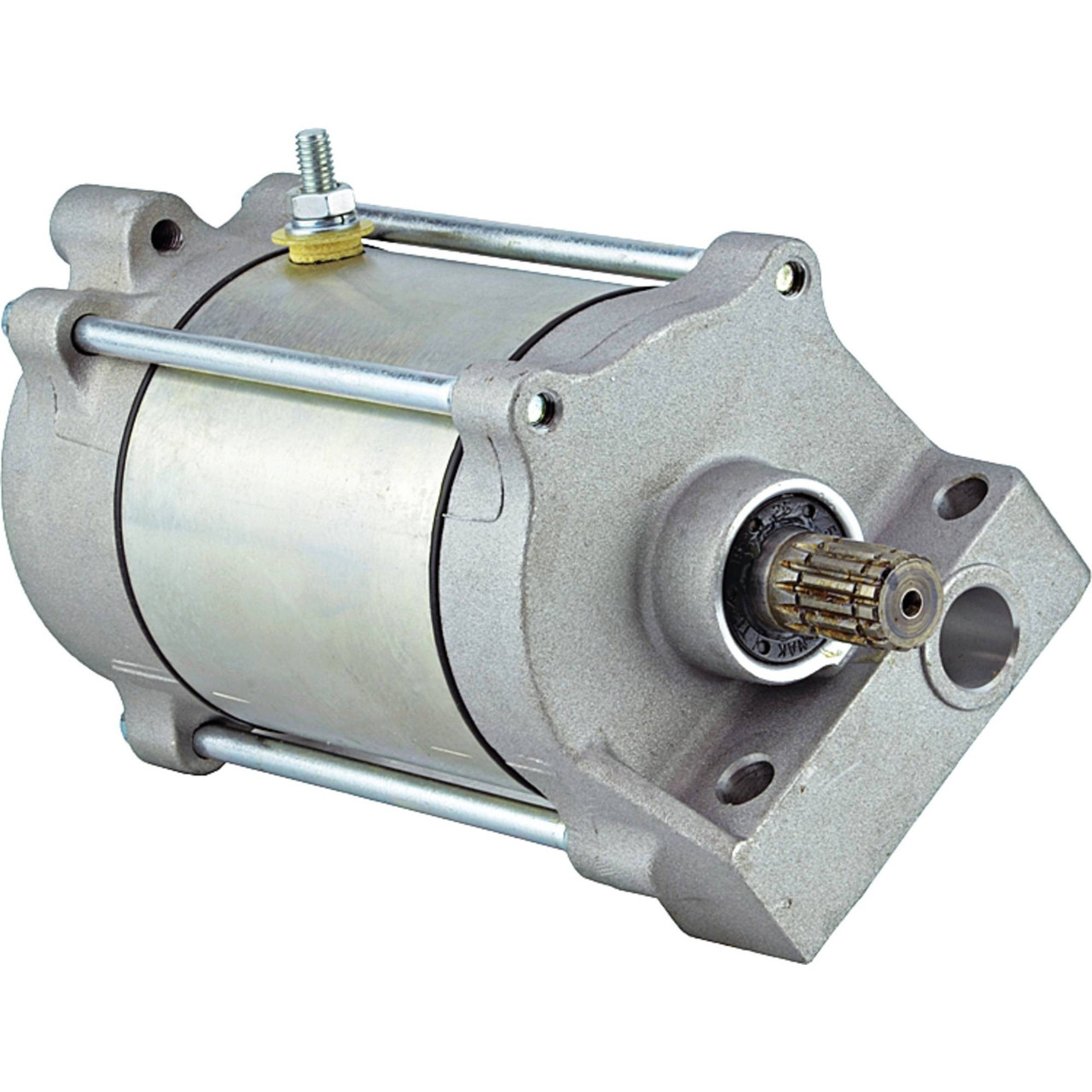

NEW Starter for ARCTIC CAT M 800, M 8000, XF 800, XF 8000 & ZR 8000 Series Snowmobiles; 410-58105, 0645-615J, 0745-370

$219.99

Email
Categories: , ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
NUMBER OF TEETH 14
GEAR OD 0.575″
GEAR OD 14.600mm
LENGTH 177.200 mm
LENGTH 6.976″
MOUNT HOLE ID 1 8.400mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 10.500mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR DISTANCE 2 2.201″
MOUNTING EAR DISTANCE 2 55.900mm
MOUNTING EAR DISTANCE 3 117.500mm
MOUNTING EAR DISTANCE 3 4.626″
ADD’L INFO 14 Toothed Straight Splined,
14.6mm Pinion Shaft

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARCTIC CAT 0645-615J, 0745-370
ARROWHEAD SCH0108
J&N ELECTRICAL PRODUCTS 410-58105

Applications

Part fit

MAKE MODEL ENGINE YEAR
Arctic Cat M 800 Sno Pro LTD ES  794cc 2013
Arctic Cat M 8000 Sno Pro LTD ES  794cc 2014, 2015
Arctic Cat XF 800 Cross Tour  794cc 2013
Arctic Cat XF 800 High Country Sno Pro LTD  794cc 2013
Arctic Cat XF 800 LXR  794cc 2013
Arctic Cat XF 800 Sno Pro LTD  794cc 2013
Arctic Cat XF 8000 Cross Country LTD  794cc 2015
Arctic Cat XF 8000 Cross Tour  794cc 2014, 2015
Arctic Cat XF 8000 High Country LTD  794cc 2015
Arctic Cat XF 8000 High Country Sno Pro LTD  794cc 2014
Arctic Cat XF 8000 LXR  794cc 2014, 2015
Arctic Cat XF 8000 Sno Pro LTD  794cc 2014, 2015
Arctic Cat ZR 8000 LXR  794cc 2014, 2015
Arctic Cat ZR 8000 Sno Pro LTD El Tigre ES  794cc 2015
Arctic Cat ZR 8000 Sno Pro LTD  794cc 2014, 2015
