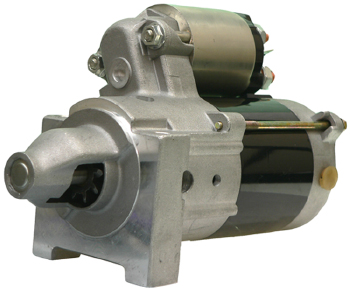

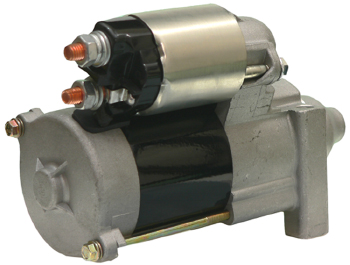

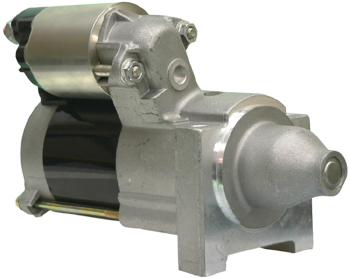

NEW Starter for JOHN DEERE GATOR TX & KAWASAKI KAF 400 Mule Series; 410-52101, AM134946, MIA11410, 21163-7020, 21163-7028, 428000-3130, 428000-3131; LESTER 18533

$129.99

Email

Specifications

UNIT TYPE Starter
VOLT 12
ROTATION DIRECTION Counter Clockwise
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
NUMBER OF TEETH 9
GEAR OD 1.087″
GEAR OD 27.600mm
MOUNT HOLE ID 1 8mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year
Short Description JOHN DEERE GATOR TX w/10HP ENGINE
KAWASAKI MULE 600, 610 401cc
KAWASAKI MULE SX 2017-20
ADDL INFO: MOUNTS LIKE A KOHLER UNIT



Part Number & Interchanges

Manufacturer Part # Manufacturer Name
SND0490 ARROWHEAD
3200-7020 ATLANTIC
1400-0134 ATLANTIC
410-52101 J & N
410-52395 J & N
18533 LESTER
610-18533 BARSANCO
22-18533 BBB SMALL MOTOR
428000-3131 DENSO
428000-3130 DENSO
MS-832 DIXIE
18533N EMS
STK0490 HI LEVEL
MIA11410 JOHN DEERE
AM134946 JOHN DEERE
21163-7020 KAWASAKI
21163-7028 KAWASAKI
57-2654 MINNPAR
P197N MPA SMALL MOTOR
RN18533 NAPA SMALL MOTOR
ST-18533 RCP
RS41305 REMY SMALL MOTOR
435-530 STENS
495776 TUCKER ROCKY
49-5776 TUCKER ROCKY
2-2743-ND WAI
2-2743-ND WAI (OLD)
71-29-18533 WILSON SMALL ENGINE

Part fit

Year Make Model Engine
Year Make Model Engine
2005 - 2016 KAWASAKI KAF400 Mule 600 401cc
2005 - 2016 KAWASAKI KAF400 Mule 610 4x4 401cc
2006 - 2009 KAWASAKI KAF400 Mule 610 4x4 Hardwoods 401cc
2006 - 2012 KAWASAKI KAF400 Mule 610 4x4 Realtree APG 401cc
2010 - 2015 KAWASAKI KAF400 Mule 610 4x4 XC 401cc
2011 - 2014 KAWASAKI KAF400 Mule 610 4x4 XC Realtree APG 401cc
2017 - 2019 KAWASAKI KAF400 Mule SX 401cc
All JOHN DEERE Gator TX Kawasaki 15.5HP
