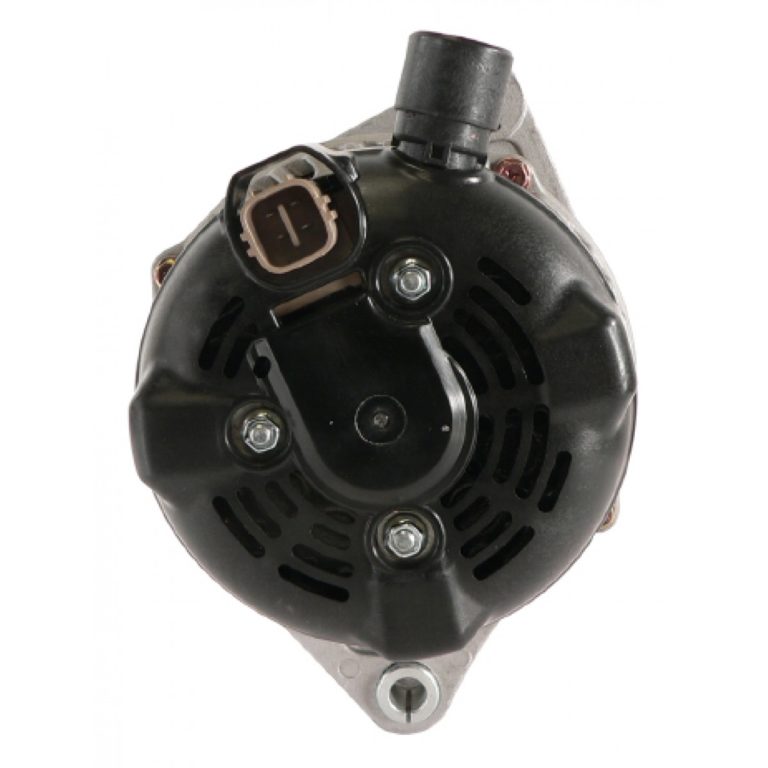

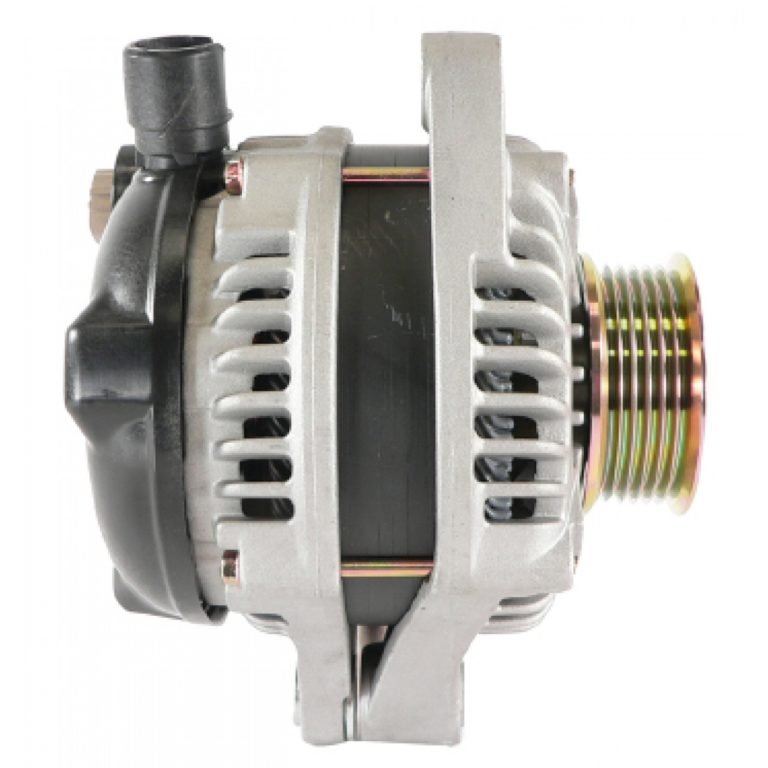

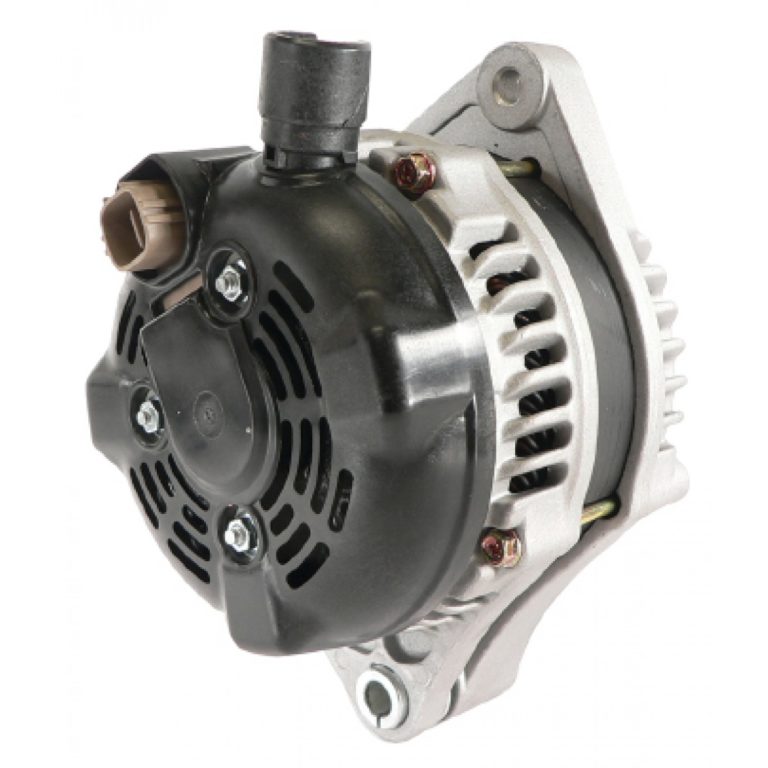

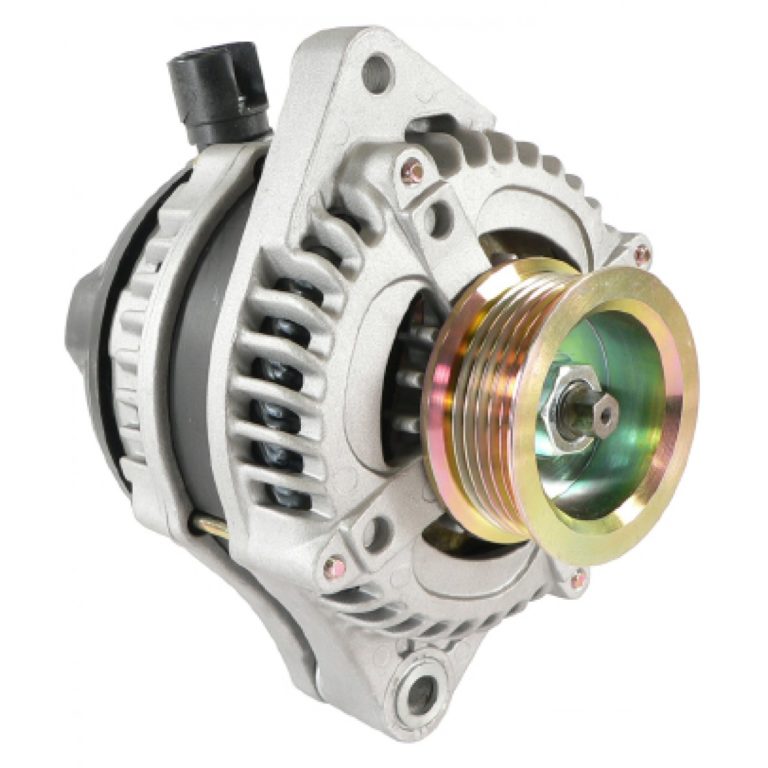

NEW Alternator for ACURA MDX, RL, TL 2005-2009; HONDA ODYSSEY, PILOT, RIDGELINE 2007-2008; AND0339, 400-52252R, 31100-RDJ-A01, 31100-RGL-A01, CSC10, CSD29, [DENSO 104210-3100, 104210-4290, 104210-4300, …]; LESTER 11151
$239.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 130 |
| CONDITION | Remanufactured |
| REGULATOR CLOCK | 11:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.748″ |
| MOUNTING EAR THICKNESS | 19mm |
| MOUNTING EAR 2 THICKNESS | 1.811″ |
| MOUNTING EAR 2 THICKNESS | 46mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | Ign |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | C |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.807″ |
| PULLEY OUTER DIAMETER | 71.300mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0339 |
| ARROWHEAD (OEM) | VND0339 |
| J & N | 400-52252R |
| ARROWHEAD (OEM) (OLD) | VND0339 |
| ARROWHEAD (OLD) | AND0340 |
| LESTER | 11151 |
| BBB | 11151 |
| BBB NEW | 11151 |
| BECK ARNLEY | 186-1240 |
| DENSO | 104210-4690 |
| DIXIE | A-80337 |
| EXCEL | 10803 |
| FAMILY | Denso Hairpin |
| HONDA | 31100-RJA-A01 |
| HONDA | 31100-RJA-A02 |
| HONDA | CSD69 |
| LUCAS ELECTRICAL EUROPE | LRA04171 |
| REMY LIGHT DUTY | 12723 |
| USA INDUSTRIES | A3150 |
| WAI | 1-2970-01ND-3 |
| WAI | 11151N |
| WAI | 11151R |
| WILSON | 90-29-5654 |
| WILSON NEW | 90-29-5654 |
| WORLDWIDE | 12723 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2005 - 2008 | ACURA | RL | 3.5L |
| 2006 | ACURA | MDX | 3.5L |
| 2006 - 2008 | ACURA | TL | 3.2L |
| 2007 - 2008 | ACURA | MDX | 3.7L |
| 2007 - 2008 | ACURA | TL | 3.5L |
| 2007 | HONDA | ODYSSEY | 3.5L |
| 2007 - 2008 | HONDA | PILOT | 3.5L |
| 2007 - 2008 | HONDA | RIDGELINE | 3.5L |
