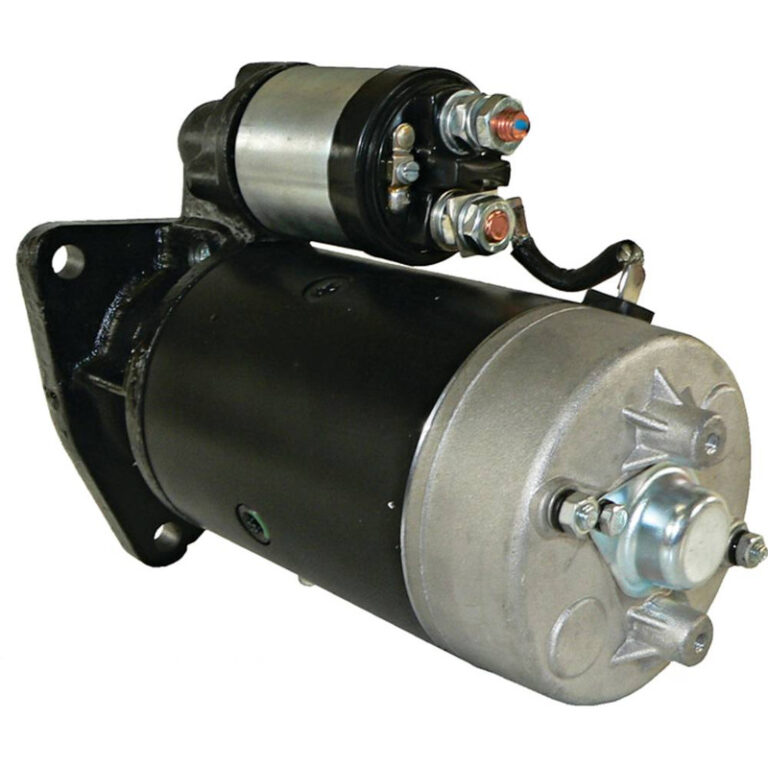

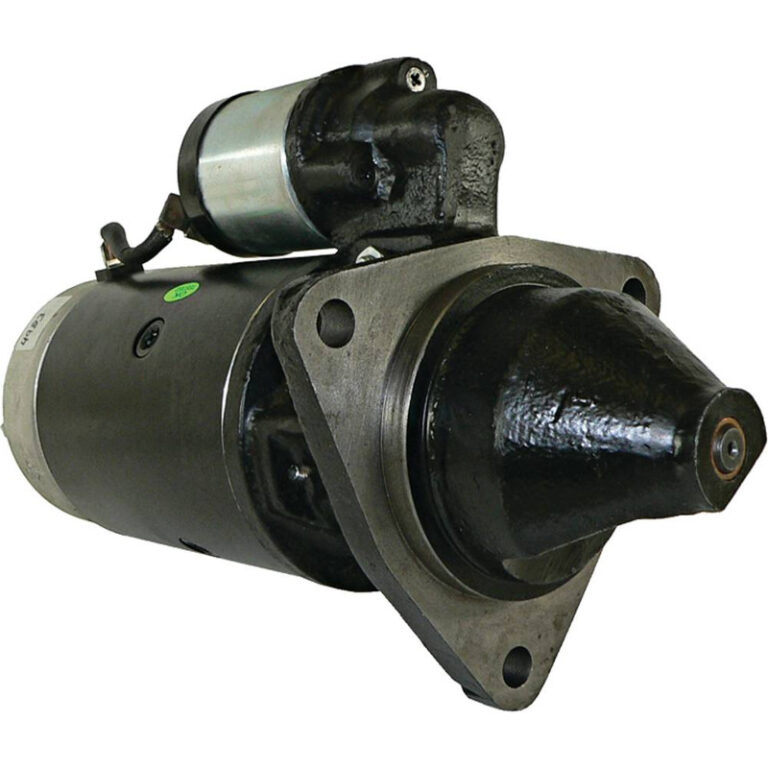

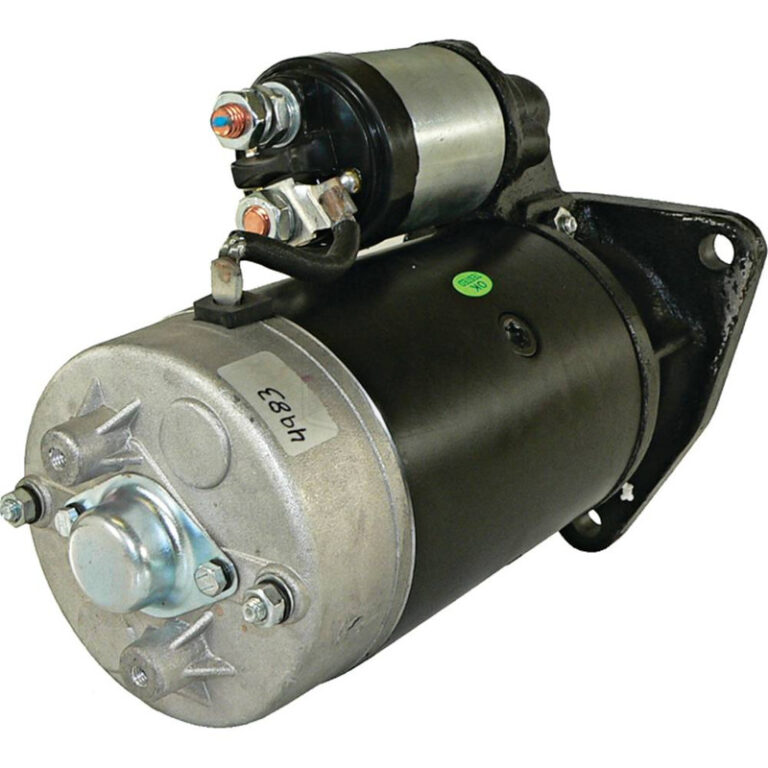

NEW Starter for BELARUS Belarus 250 / 250AS, 300 / 310, 400A / 400AN, Golfmaster Tractors – Farm; 410-42009, 24063708000, 243708, 37003084088, 920001103, CT212A; LESTER 18546
$304.99
Available on backorder
Specifications
| Unit Type | Starter |
| Part Type | Direct Drive (DD) |
| Voltage | 12 |
| POWER | 3 kw/ 4.023 HP |
| Rotation | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.476″/ 37.500mm |
| MOUNT HOLE ID 1 | 12.500mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| LENGTH | 10.276″/ 261 mm |
| REGISTRY OD | 100mm/ 3.937″ |
| MOUNTING EAR DISTANCE 1, 2 & 3 | 125.500mm/ 4.941″ |
| Addn Info | M10-1.5 B+ & Motor Studs
Spade S Terminal |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ATLANTIC QUALITY PARTS | 2300-0101 |
| BELARUS | 24063708000, 243708, 37003084088, 920001103, CT212A |
| IMI HI TORQUE | IMI25101-003 |
| J&N | 410-42009 |
| LISTER | 18546 |
| LUCAS ELECTRIC | LRS01368 |
| MAGNETON | 9142980 |
| MAHLE | 11.130.436, AZJ3124, IS1328, MS0185, MS0620, MS202, MS620 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Belarus | 250 / 250AS | 2cyl – 31H | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 |
| Belarus | 300 / 310 | 2cyl – 36H | 1995, 1996 |
| Belarus | 400A / 400AN | 4cyl – 57H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 405A / 405AN | 4cyl – 57H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 420A / 420AN | 4cyl – 57H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 425A / 425AN | 4cyl – 57H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 500 | 4cyl – 65H | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| Belarus | 505 | 4cyl – 65H | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| Belarus | 5111 | 4cyl – 55H | |
| Belarus | 5145 | 4cyl – 55H | |
| Belarus | 520 | 4cyl – 65H | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| Belarus | 525 | 4cyl – 65H | 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| Belarus | 530 | 4cyl – 55H | 1994, 1995, 1996 |
| Belarus | 532 | 4cyl – 55H | 1994, 1995, 1996 |
| Belarus | 560 | 4cyl – 65H | 1992, 1993, 1994, 1995, 1996 |
| Belarus | 562 | 4cyl – 65H | 1992, 1993, 1994, 1995, 1996 |
| Belarus | Golfmaster | 2cyl – 31H | |
| Belarus | T25 / T25A / T25LB | 2cyl – 31H | |
| Belarus | T40 / T40A | 4cyl – 57H | |
| Belarus | T42LB | 4cyl – 57H |
