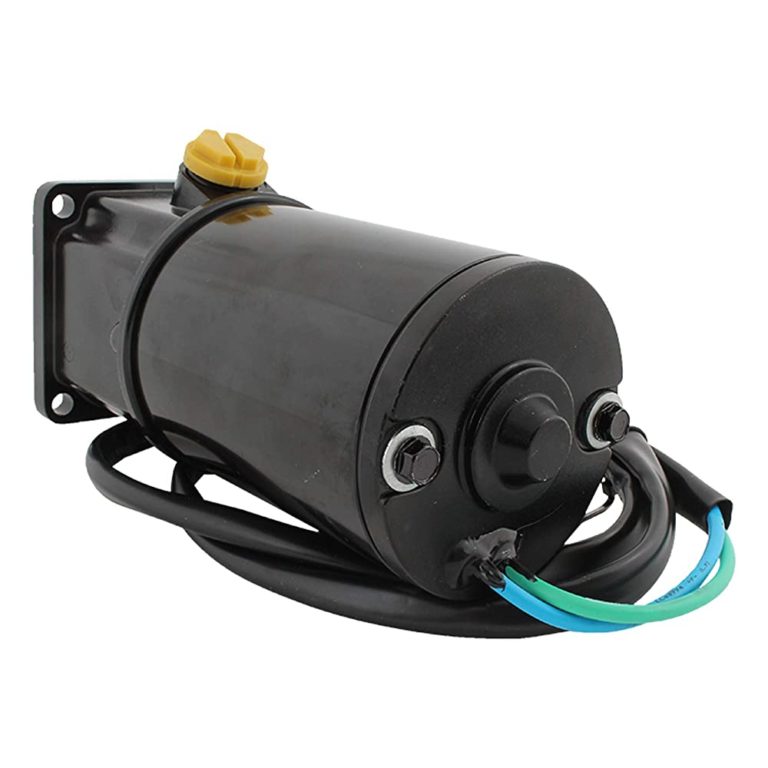

NEW Tilt & Trim Motor for MERCURY & MARINER Outboards w/ Single Ram Late Model 50-150HP; 430-22008, 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 831447, 885654T1, 885654T2, 893907A02; LESTER 10827, 10850
$209.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 2.866″ |
| OD | 72.800 mm |
| LENGTH | 175 mm |
| LENGTH | 6.890″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | Hollow Hex Shaft |
| WARRANTY | 1 Year |
| 2-Wire Connection, Includes: (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-Ring
NFO: ALSO FOR FORCE 2 RAM TILT / TRIM STSTEM |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0034, TRM0047 |
| J & N | 430-22008 |
| LESTER | 10827 |
| API MARINE | PT497NK |
| ARCO MARINE | 6276 |
| BBB SMALL MOTOR | 22-10827 |
| EMP PARTS | 4-6777 |
| EMS | 49-6276 |
| MALLORY | 9-18203 |
| MERCURY MARINE | 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 831447, 885654T1, 885654T2, 893907A02 |
| MES MOTORCYCLE & MARINE | T1075M |
| MINNPAR | 67-1714 |
| MP PARTS | 4-6777 |
| MPA SMALL MOTOR | P191N |
| NAPA SMALL MOTOR | RN10827 |
| REMY SMALL MOTOR | RT05032 |
| SIERRA MARINE | 18-6777 |
| WAI | 82-7866 |
| WAI | 10827N |
| WAI (OLD) | 82-7866 |
| WILSON SMALL ENGINE | 74-35-10827 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1989 | MERCURY MARINE | 40ELHPTO 2-Stroke | 40HP |
| 1989 | MERCURY MARINE | 40ELO 2-Stroke | 40HP |
| 1989 | MERCURY MARINE | 40ELPTO 2-Stroke | 40HP |
| 1992 | FORCE | 408 | 40HP |
| 1996 | FORCE | 75EL | 75HP |
| 1996 | FORCE | 75ELPT | 75HP |
| All | FORCE | All Models | 50-125 HP |
| All | MERCURY | All Models | 50-125 HP |
