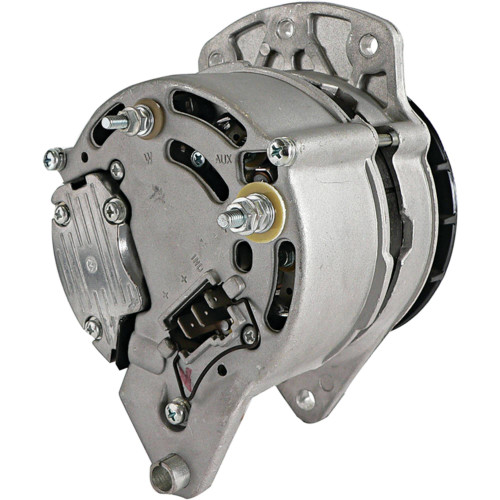

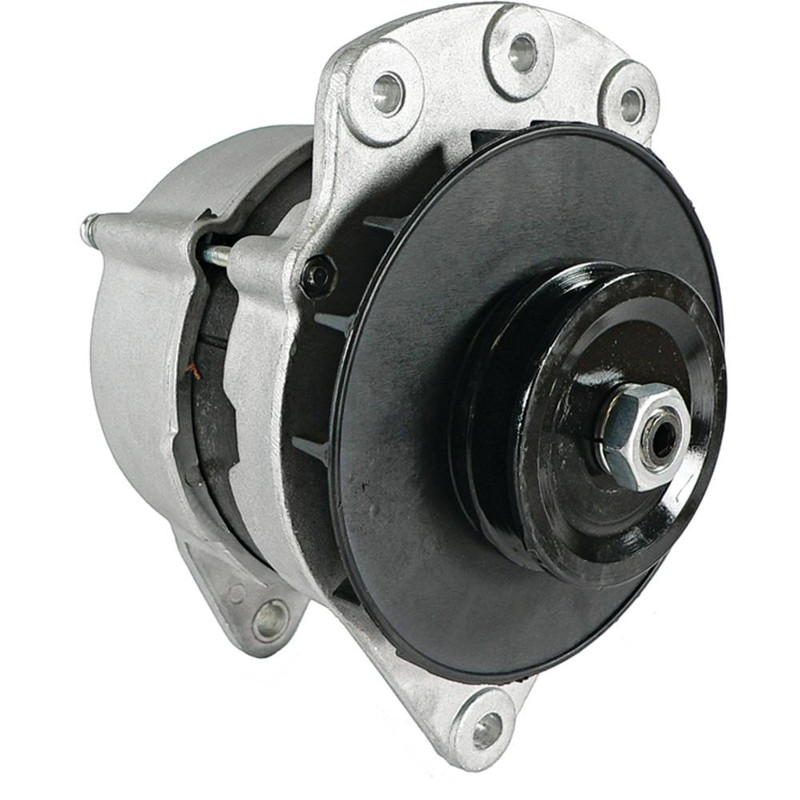

New UNIVERSAL Multi-mount Alternator for Agricultural Applications; 400-30028, 3000-0501, [LUCAS ELECTRIC 61920357, LEA0270, NAB900]; LESTER 12750
$159.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 65 |
| REGULATOR CLOCK | 8:30 |
| MOUNT HOLE ID 1 | 8.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.400mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.413″ |
| MOUNTING EAR THICKNESS | 10.500mm |
| MOUNTING EAR 2 THICKNESS | 0.417″ |
| MOUNTING EAR 2 THICKNESS | 10.600mm |
| MOUNTING EAR 3 THICKNESS | 0.713″ |
| MOUNTING EAR 3 THICKNESS | 18.100mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | W |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | D+ |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | B+ |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | B+ |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.894″ |
| PULLEY OUTER DIAMETER | 73.500mm |
| ADD’L INFO | 3 Hole Multi mount Adjusting Ear |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ALU0028 |
| ATLANTIC QUALITY PARTS | 3000-0501 |
| J&N ELECTRICAL PRODUCTS | 400-30028 |
| LESTER | 12750 |
| LUCAS ELECTRIC | 61920357, LEA0270, NAB900 |
