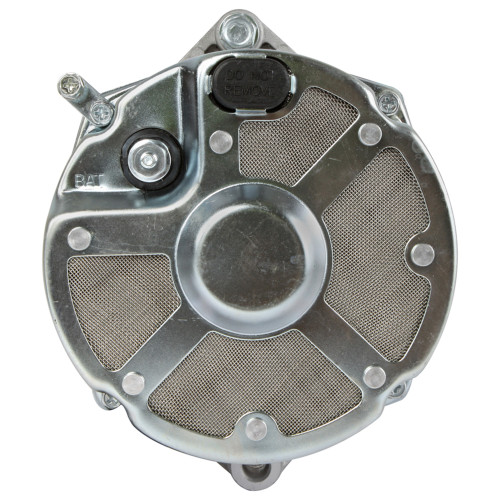

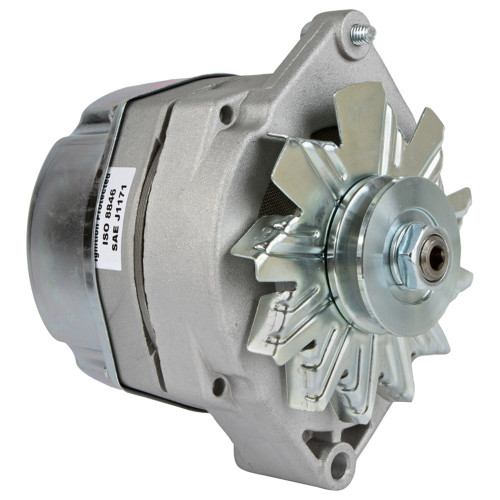

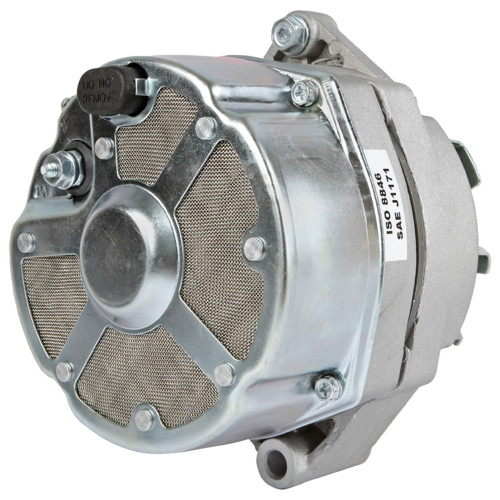

NEW 1-Wire 10SI Type Alternator for Marine Applications; 400-12483, 4-6841; LESTER 7152-105
$157.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Delco 10SI |
| AMILY TYPE | 110 |
| COLOR | Natural |
| VOLT | 12 |
| AMPS | 105 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.697″ |
| MOUNTING EAR THICKNESS | 17.700mm |
| MOUNTING EAR 2 THICKNESS | 2″ |
| MOUNTING EAR 2 THICKNESS | 50.800mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.382″ |
| PULLEY OUTER DIAMETER | 60.500mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ADR0334 |
| EMP | 4-6841 |
| J&N | 00-12007, 400-12483, 400-12485 |
| LESTER | 7152-105 |
