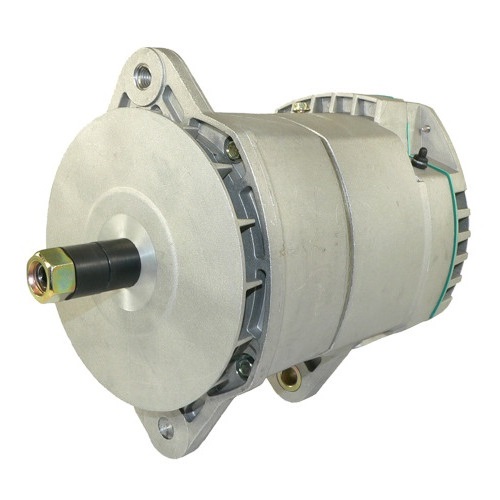

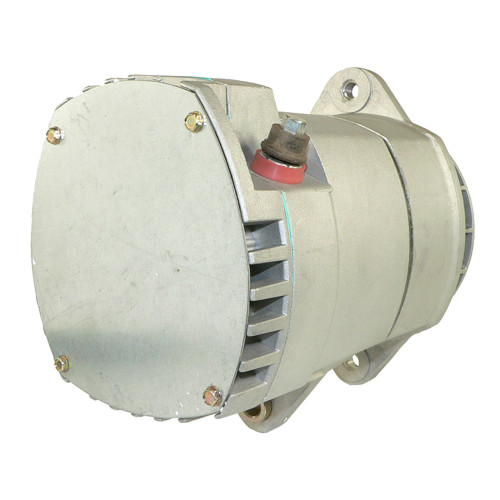

NEW 1-Wire 25SI Type Alternator for CATERPILLAR, CLARK, CUMMINS & OTH Applications; 400-12351, 3500-0507, 0R2415, 5Z1083, 8N0999, 214318, 3604225RX; LESTER 7252, 7270

Name: NEW 1-Wire 25SI Type Alternator for CATERPILLAR, CLARK, CUMMINS &amp; OTH Applications; 400-12351, 3500-0507, 0R2415, 5Z1083, 8N0999, 214318, 3604225RX; LESTER 7252, 7270
SKU: 11684
Availability: InStock

$339.99 $384.19

Categories: Alternator, Crawler, Engine - Industrial, Engine - Marine, Excavator, Grader, Tractor, Wheel Loader

Specifications

UNIT TYPE	Alternator
FAMILY	Delco 25SI
FAMILY TYPE	450
VOLT	24
AMPS	75
CONDITION	New
FAN LOCATION	External
REGULATOR LOCATION	Internal
TERMINAL ID 2	B+
TERMINAL 2 SIZE	7/16-14
TERMINAL ID 3	R
TERMINAL 3 SIZE	Pin
POLARITY	Negative
WARRANTY	1 Year

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
AC DELCO TOOLS	321-655, 321-697
ARROWHEAD	ADR0072
ATLANTIC QUALITY PARTS	3500-0507
CASEIH	524023C9
CATERPILLAR	0R2415, 5Z1083, 8N0999
CUMMINS	214318, 3604225RX
DELCO	10459007, 10459011, 10459071, 10459076, 1117069, 1117238, 1117249, 1117256, 321-697, DRZ0132
J&N ELECTRICAL PRODUCTS	400-12027, 400-12339, 400-12351
LESTER	7252, 7270
LUCAS ELECTRIC	LRA02490
OTHER OEMS	DXA9115
WHITE	V1114266

Applications

Part fit

MAKE	MODEL	ENGINE	YEAR
Caterpillar	140H	330	1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	140H	Cat. 330	1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	3208	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Caterpillar	3304		1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3306		1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3406	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3408	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3412	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	345B L Series II	Cat. 3176	1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar	345B L	Cat. 3176	1997, 1998, 1999, 2000, 2001
Caterpillar	345B LC	Cat. 3176	1997, 1998, 1999, 2000, 2001
Caterpillar	345B Series II	Cat. 3176	1999, 2000, 2001, 2002, 2003, 2004, 2005
Caterpillar	345B	Cat. 3176	1997, 1998, 1999, 2000, 2001
Caterpillar	350 L	Cat. 330	1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar	350	Cat. 330	1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar	3508	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3512	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	3516	All	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	385B L	Cat. 345
Caterpillar	385B	Cat. 345
Caterpillar	5090B	Cat. 345	2002, 2003, 2004, 2005
Caterpillar	621B	Cat. 340	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Caterpillar	621E	Cat. 340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	621F	Cat. 340	1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	623E	Cat. 340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	623F	Cat. 340	1994, 1995, 1996, 1997, 1998, 1999
Caterpillar	627E	Cat. 330	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	627F	Cat. 340	1994, 1995, 1996, 1997, 1998, 1999
Caterpillar	631E	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	631E	Cat. 340	1994, 1995, 1996, 1997, 1998
Caterpillar	633E	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	637E	Cat. 330	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	637E	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	637E	Cat. 340	1994, 1995, 1996, 1997, 1998, 1999
Caterpillar	651E	Cat. 341	1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	657E	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	657E	Cat. 3408 / 341	1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	784	Cat. 351	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	784B	Cat. 351	1994, 1995, 1996
Caterpillar	785	Cat. 351	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	785B	Cat. 351	1994, 1995, 1996, 1997, 1998, 1999, 2000
Caterpillar	789	Cat. 351	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	789B	Cat. 351	1994, 1995, 1996, 1997, 1998
Caterpillar	815F Soil	Cat. 317	1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar	825G Soil	Cat. 340	1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar	826G Landfill	Cat. 340	1996, 1997, 1998, 1999, 2000, 2001, 2002
Caterpillar	834B	Cat. 340	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	834B	Cat. 340	1994, 1995, 1996
Caterpillar	836 Landfill	Cat. 3408	1996, 1997, 1998, 1999, 2000
Caterpillar	988B	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	992C	Cat. 340	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D10N	Cat. 341	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D11N	Cat. 340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D7H	Cat. 330	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D7H	Cat. 330	1994, 1995
Caterpillar	D8L	340	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar	D8L	Cat. 340	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Caterpillar	D8N	340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D8N	Cat. 340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D8N	Cat. 340	1994, 1995, 1996
Caterpillar	D9N	Cat. 340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	D9N	Cat. 340	1994, 1995
Caterpillar	Various Models	320	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	Various Models	320	1994, 1995, 1996, 1997
Caterpillar	Various Models	330	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	Various Models	330	1994, 1995, 1996, 1997
Caterpillar	Various Models	340	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	Various Models	340	1994, 1995, 1996, 1997
Caterpillar	Various Models	341	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	Various Models	341	1994, 1995, 1996, 1997
Caterpillar	Various Models	350	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	Various Models	351	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Caterpillar	W345B II	Cat. 3176C Engine
Clark	125C	6V-71	1981, 1982, 1983, 1984, 1985, 1986
Clark	125C	Cummins VT-55	1981, 1982, 1983, 1984, 1985, 1986
Clark	125C	DD 6V-71N Diesel	1981, 1982, 1983, 1984, 1985, 1986
Clark	125C	VT-55	1981, 1982, 1983, 1984, 1985, 1986
Clark	175B	8V-7	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	175B	Cummins NTA-855C Diesel	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	175B	DD 8V-71 Diesel	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	175B	NTA-855C Diesel	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	275B	Cummins NTA-855	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	275B	NTA-855	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	275K	Cummins KTA-115	1981, 1982, 1983, 1984, 1985, 1986
Clark	275K	KTA-115	1981, 1982, 1983, 1984, 1985, 1986
Clark	280	Cummins NTA-855	1981, 1982, 1983, 1984, 1985, 1986
Clark	280	NTA-855	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	16V-71	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	Cummins KTA-115	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	Cummins V-171	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	DD 16V-71	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	KTA-115	1981, 1982, 1983, 1984, 1985, 1986
Clark	380	V-171	1981, 1982, 1983, 1984, 1985, 1986
Clark	475B	16V-9	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	475B	DD 16V-92 Diesel	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	475B	VTA-1710C Diesel	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	475B	VTA-1710C Diesel	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	475C	Cummins 171	1986
Clark	675	Cummins VTA-1710	1973, 1974, 1975, 1976, 1977
Clark	675	VTA-1710	1973, 1974, 1975, 1976, 1977
Clark	675B	Cummins VTA-1710	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	675B	VTA-1710	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Clark	75C	Apr-71	1981, 1982, 1983, 1984, 1985, 1986
Clark	75C	Cummins V-504 Diesel	1981, 1982, 1983, 1984, 1985, 1986
Clark	75C	DD 4-71N Diesel	1981, 1982, 1983, 1984, 1985, 1986
Clark	75C	V-504 Diesel , Diesel	1981, 1982, 1983, 1984, 1985, 1986
Cummins	855 Series	10.0L Engine	1983, 1984, 1985
Cummins	855 Series	10000cc, 10L	1983, 1984, 1985
Cummins	K Series		1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Cummins	L Series	10.0L Engine	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Cummins	L Series	10000cc, 10L	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Cummins	V Series	28.0L Engine	1983, 1984, 1985
Cummins	V Series	28000cc, 28L	1983, 1984, 1985
Dresser	630E	DD & Cummins	1989
Dresser	780E	DD & Cummins	1989
Wabco	120 Ton	12V-14	1983, 1984, 1985, 1986, 1987
Wabco	120 Ton	Cummins KTA230	1983, 1984, 1985, 1986, 1987
Wabco	120 Ton	DD 12V-14	1983, 1984, 1985, 1986, 1987
Wabco	120 Ton	KTA230	1983, 1984, 1985, 1986, 1987
Wabco	170 Ton	16V-14	1983, 1984, 1985, 1986, 1987
Wabco	170 Ton	Cummins KTA306	1983, 1984, 1985, 1986, 1987
Wabco	170 Ton	DD 16V-14	1983, 1984, 1985, 1986, 1987
Wabco	170 Ton	KTA306	1983, 1984, 1985, 1986, 1987
