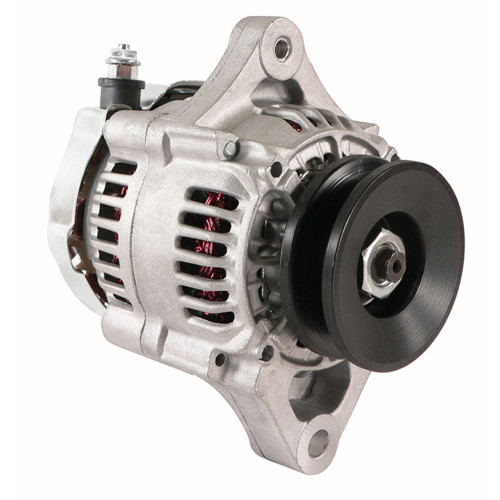

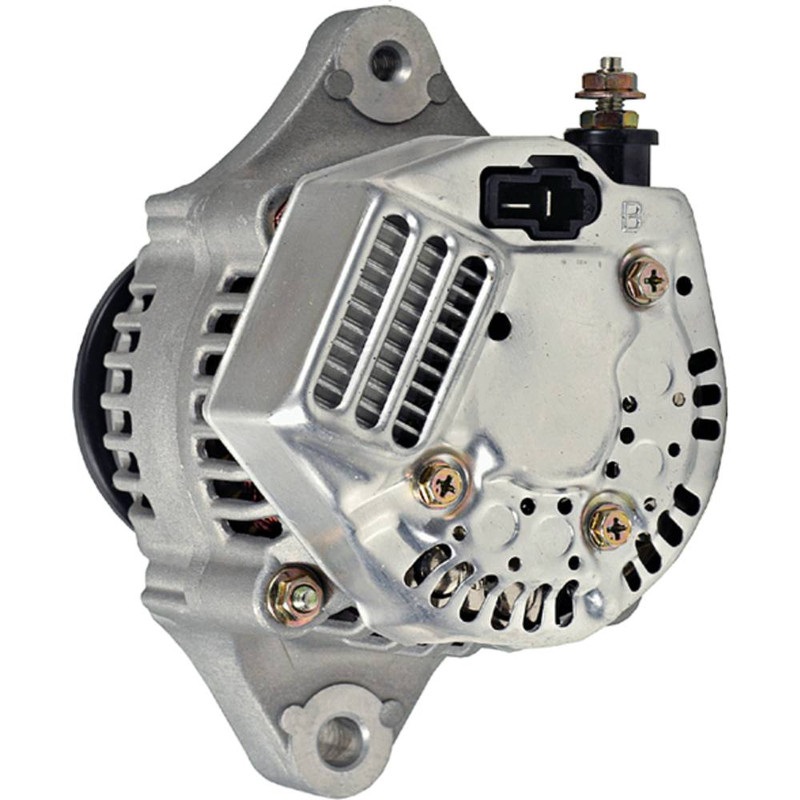

NEW 1-Wire Self- Excited Alternator for TOYOTA (1981-2007) Applications; 400-52062, 7512B, 100211-1660; LESTER 12180SE
$149.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 35 |
| REGULATOR CLOCK | 12:00 |
| MOUNT TYPE | Spool |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.6496″ |
| MOUNTING EAR THICKNESS | 16.500mm |
| MOUNTING EAR 2 THICKNESS | 0.9409″ |
| MOUNTING EAR 2 THICKNESS | 23.900mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID | B+ |
| TERMINAL SIZE | M6x1.0 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.716″ |
| PULLEY OUTER DIAMETER | 69mm |
| WARRANTY | 1 Year |
| 1-Wire@ Self- Excited@ Compact Frame Design for Racing Applications |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-52243 |
| DENSO | 100211-1660 |
| TUFF STUFF PERFORMANCE | 7512B |
| LESTER | 12180SE, 12180-SE |
