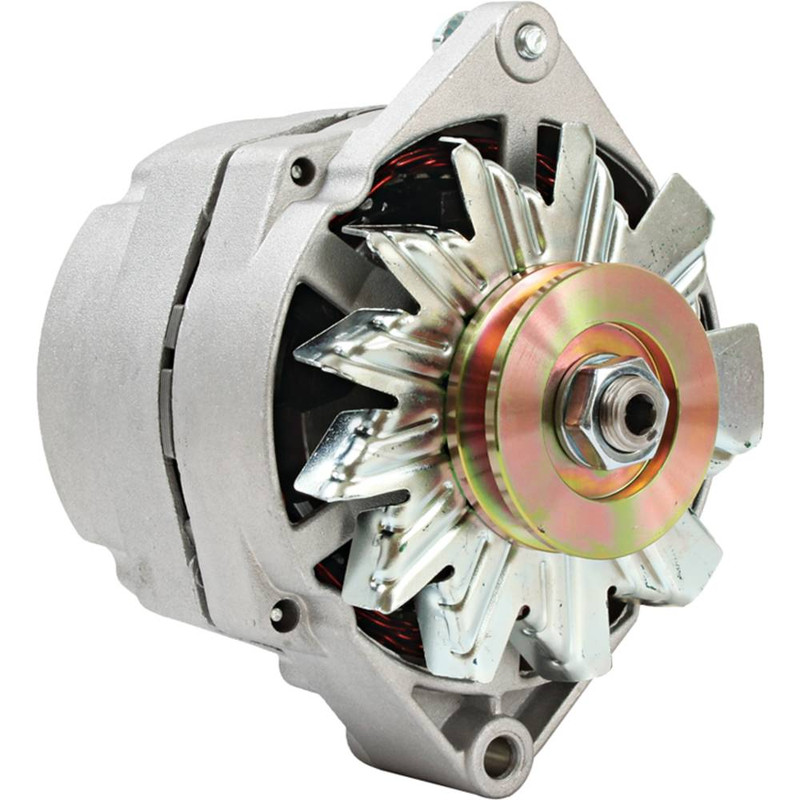

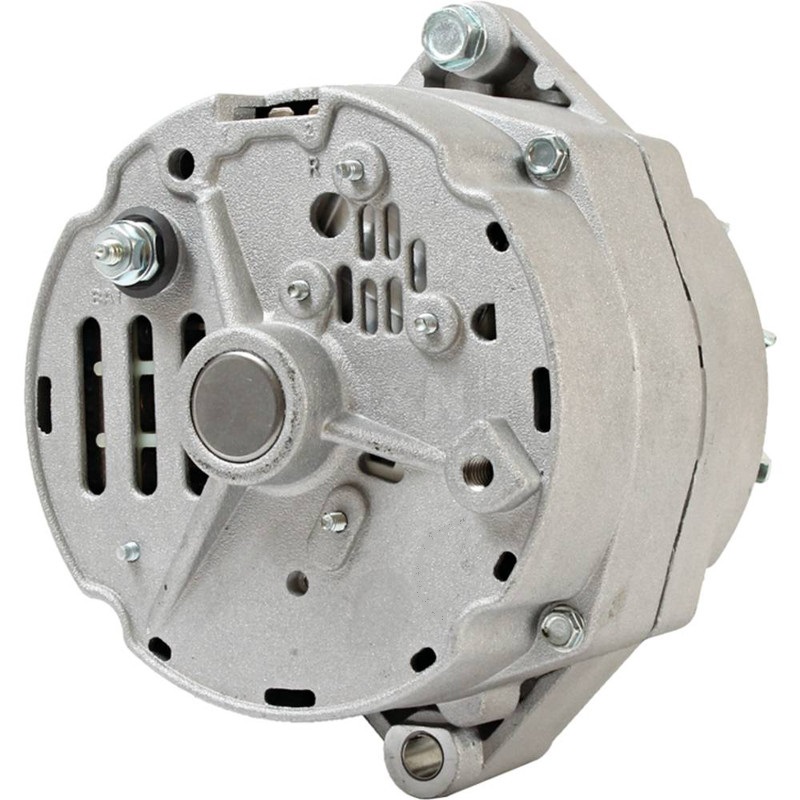

NEW 3-Wire (R Terminal) 10SI Type Alternator; ADR0134, 400-12404
$149.99
Specifications
| UNIT TYPE |
Alternator |
| FAMILY |
Delco 10SI |
| FAMILY TYPE |
116 |
| VOLT |
12 |
| AMPS |
72 |
| REGULATOR CLOCK |
3:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
5/16-18 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.661″ |
| MOUNTING EAR THICKNESS |
16.800mm |
| MOUNTING EAR 2 THICKNESS |
1.969″ |
| MOUNTING EAR 2 THICKNESS |
50mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
12-24 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.618″ |
| PULLEY OUTER DIAMETER |
66.500mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ADR0134 |
| J&N ELECTRICAL PRODUCTS |
400-12404 |
