NEW Alternator & Starter Conversion Kit for JOHN DEERE 3010 & 4020 Tractors; 400-14199
November 2, 2023NEW Alternator for GENIE Equipment; 400-14198, 119140TT, 119140, 119140GT, DSG423, GN119140
November 2, 2023NEW Alternator & Starter Conversion Kit for JOHN DEERE 3010, 4010 & 4020 Tractors; AKT0018, 400-14197
$489.99
Info: JD 24V to 12V Conv
Specifications

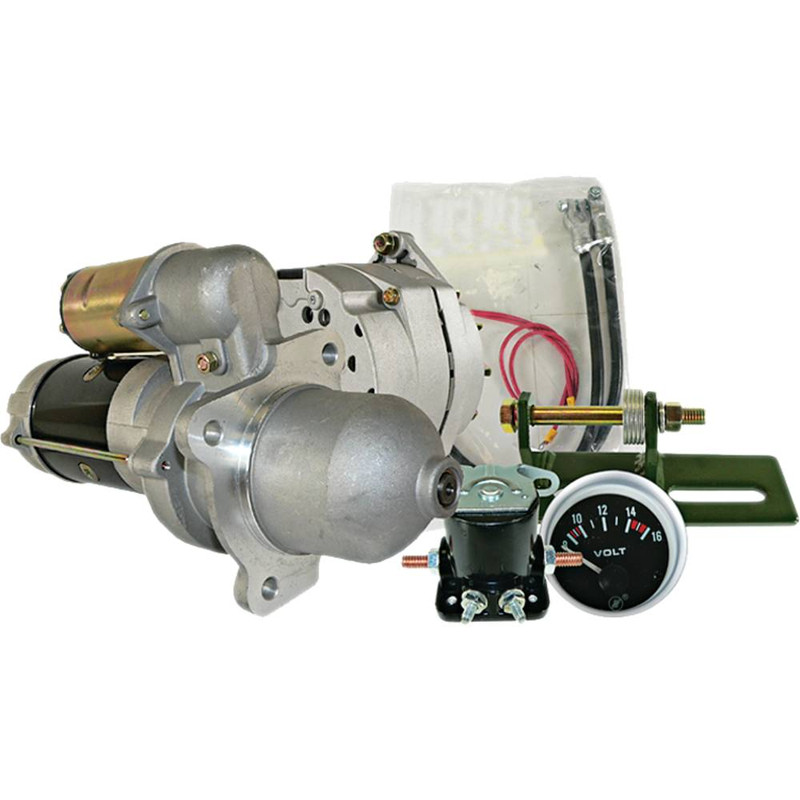

UNIT TYPE | Alternator & Starter Conversion Kit |
FAMILY | Delco 10SI |
CRITICAL NOTE | Converts From 24V Insulated System To 12V Negative Ground System |
VOLT | 12 |
AMPS | 63 |
FAN LOCATION | External |
MOUNT HOLE 1 TYPE | Threaded |
MOUNT HOLE 2 TYPE | Unthreaded |
MOUNT HOLE ID 1 | 5/16-18 |
MOUNTING EAR 2 THICKNESS | 2.008″ |
MOUNTING EAR 2 THICKNESS | 51mm |
MOUNTING EAR THICKNESS | 0.709″ |
MOUNTING EAR THICKNESS | 18mm |
NUMBER OF GROOVES | 1 |
POLARITY | Negative |
PULLEY OUTER DIAMETER | 2.622″ |
PULLEY OUTER DIAMETER | 66.600mm |
PULLEY TYPE | Solid |
REGULATOR CLOCK | 12:00 |
REGULATOR LOCATION | Internal |
ROTATION DIRECTION | Clockwise |
TERMINAL 2 SIZE | 12-24 |
TERMINAL ID 2 | B+ |
WARRANTY | 1 Year |
INCL. | Brackets, Wire Harness, 12V Alternator with Self-Excited Regulator and 5/8″ Groove Pulley, Delco 28MTType 3kW OSGR Starter, Hardware & Voltmeter |
