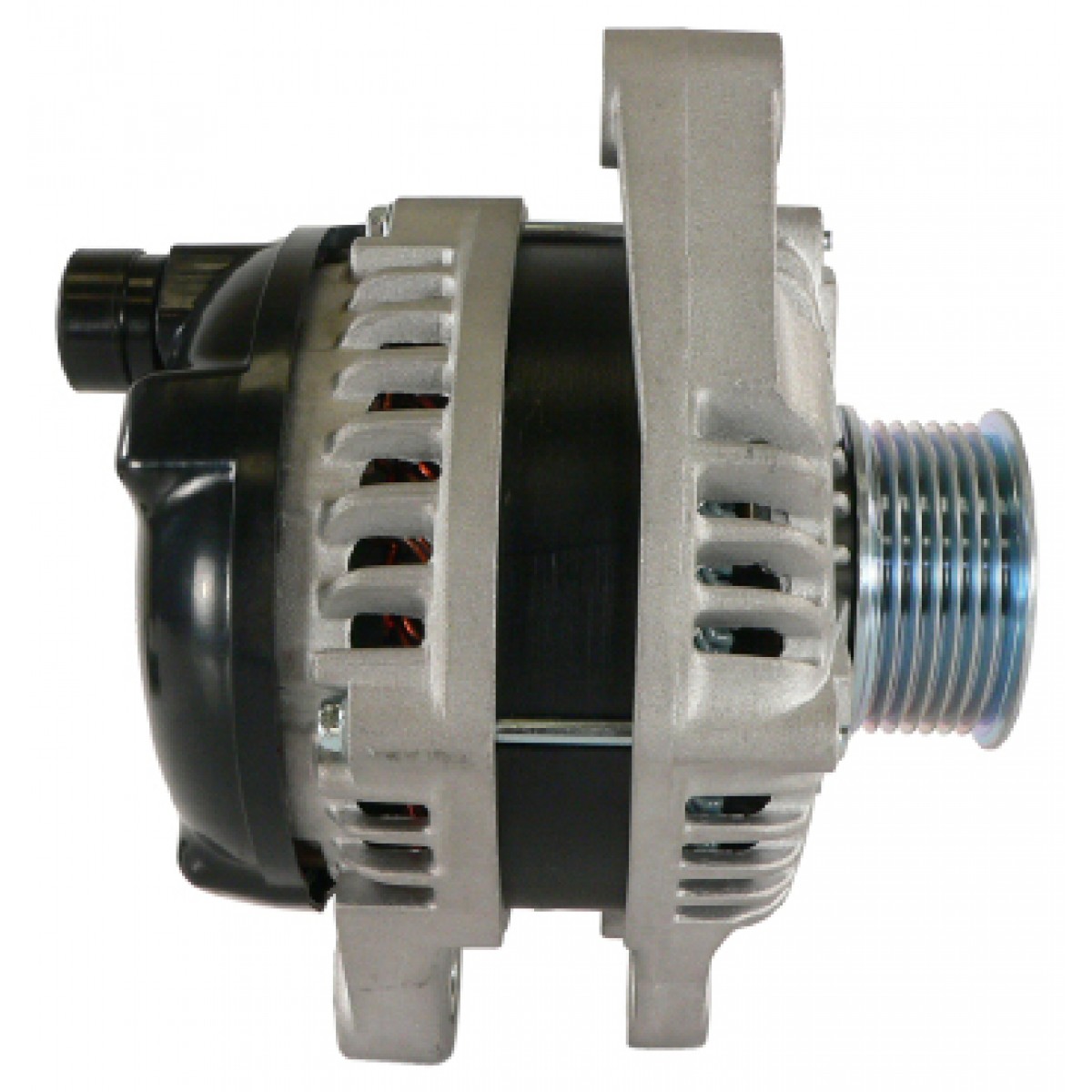

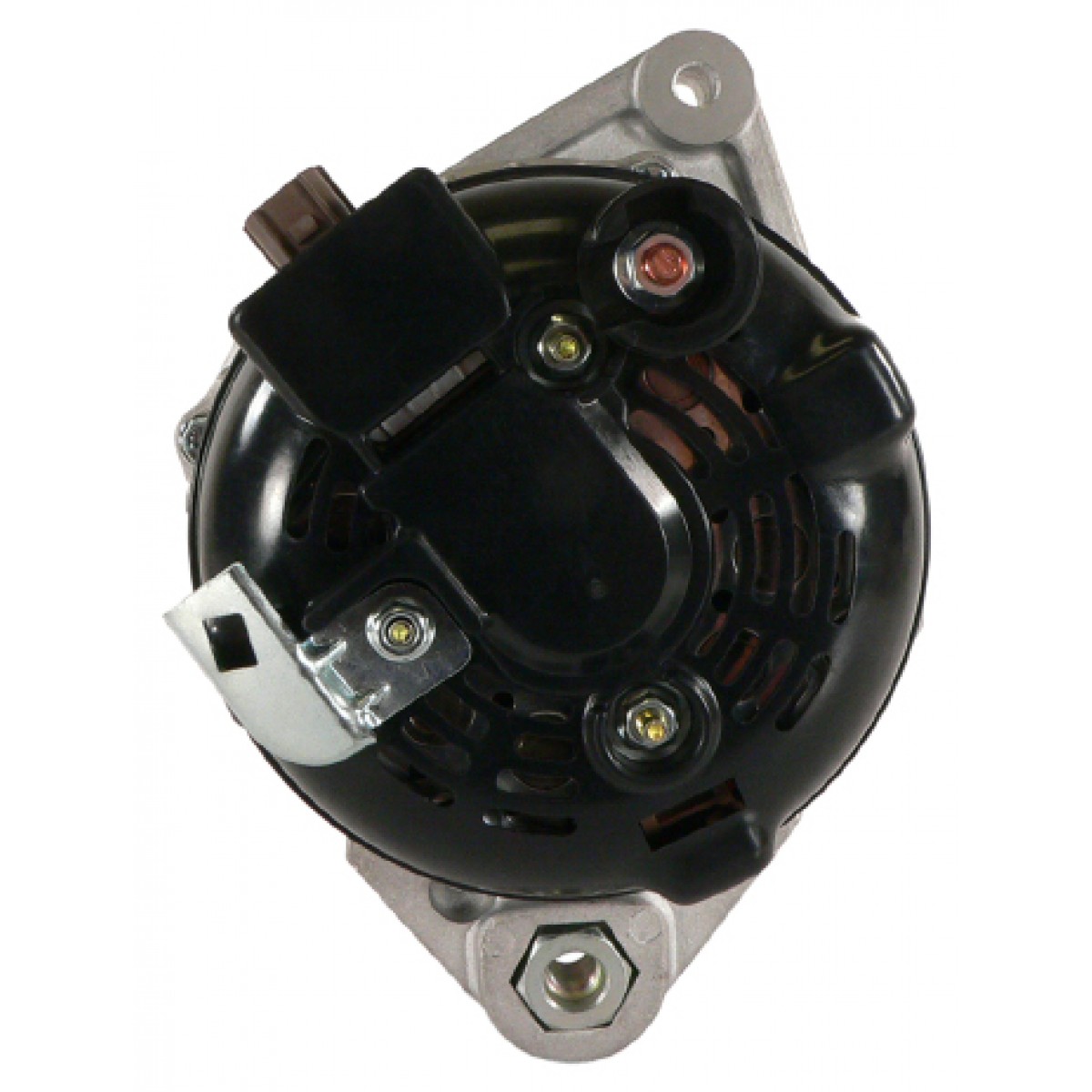

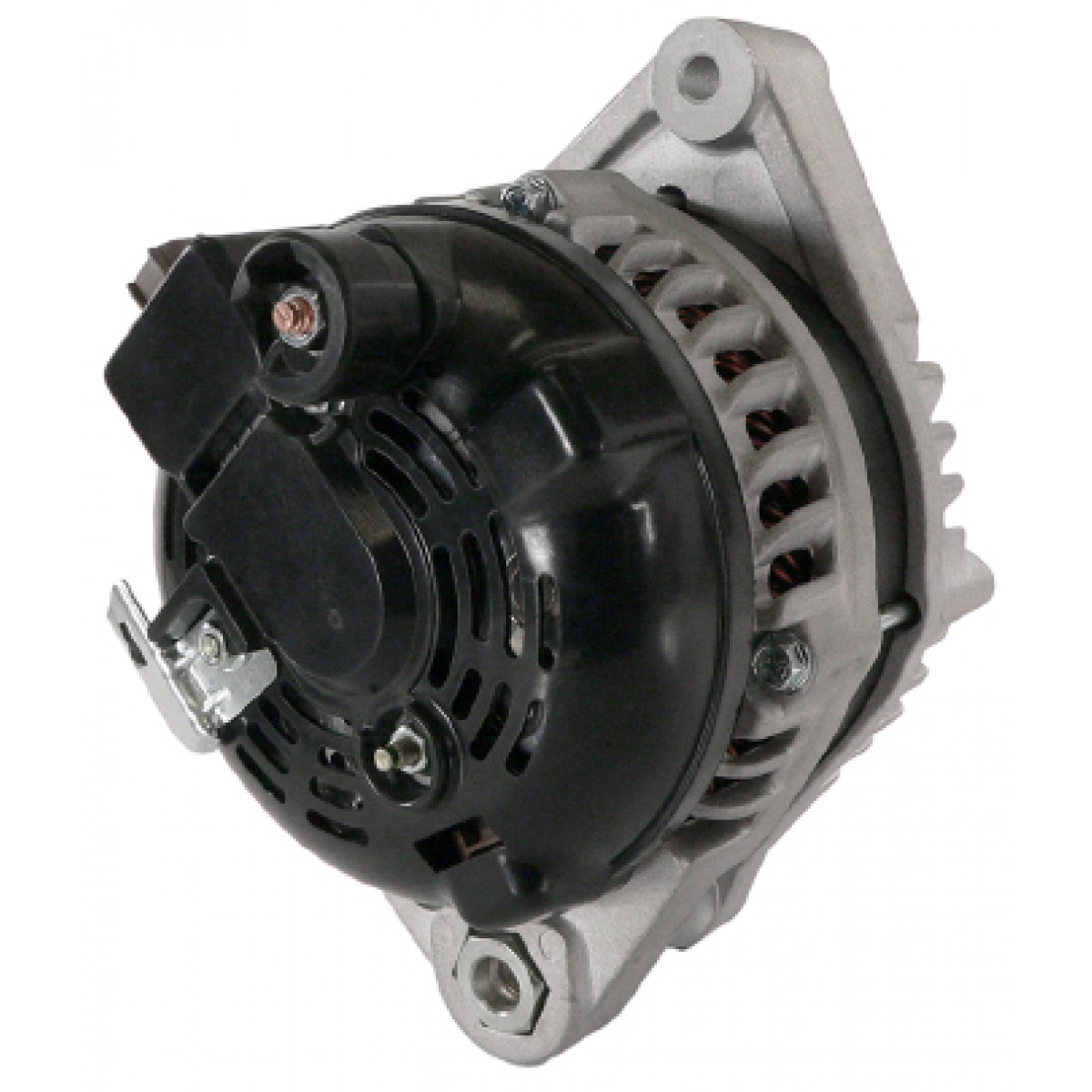

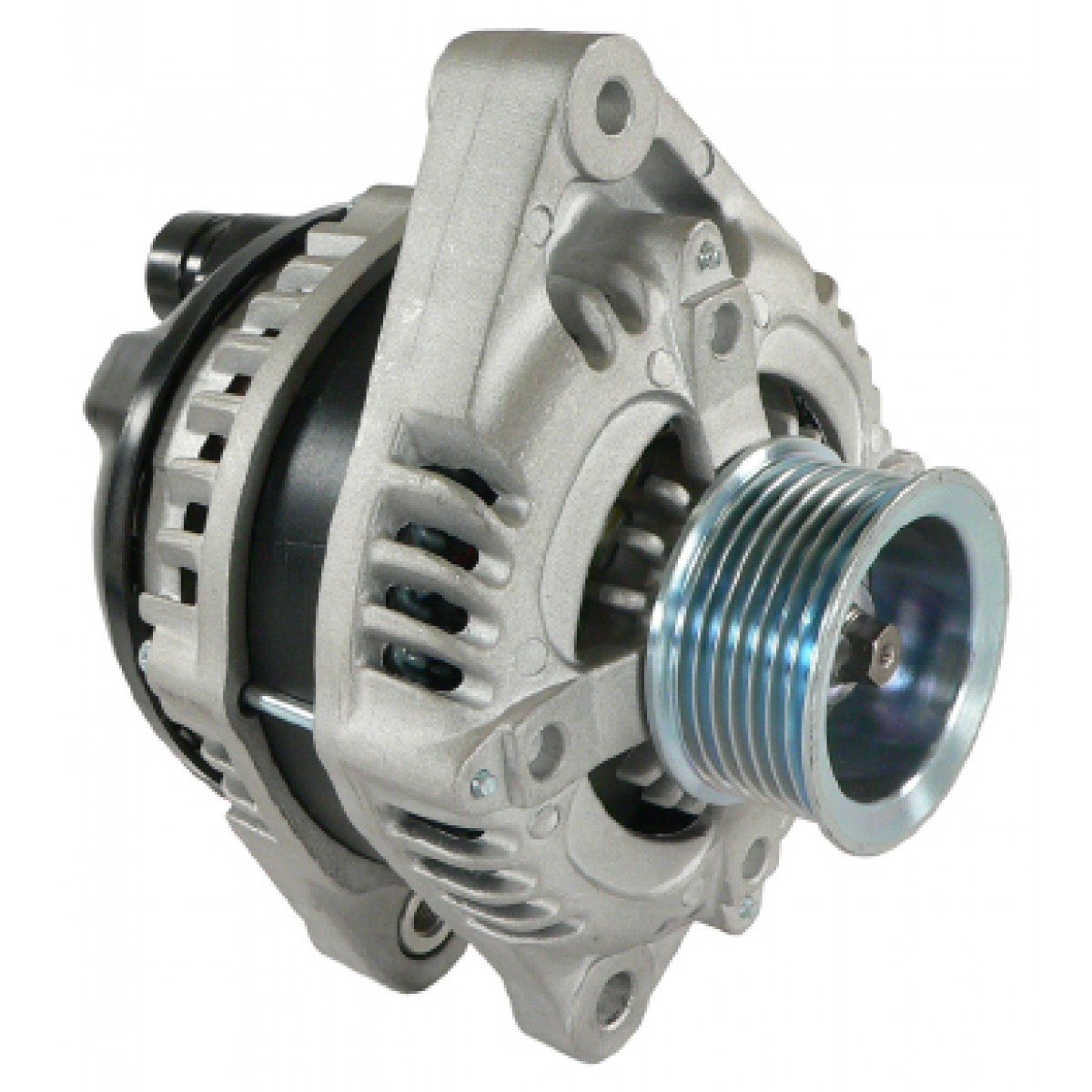

NEW Alternator for ACURA & HONDA Applications AND0511, 104210-5890, 210-0644, 06311-R40-505, 31100-R40-A01, CSF89; LESTER 11390

$259.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
FAMILY Denso SC (Hairpin)
VOLT 12
AMPS 130
REGULATOR CLOCK 10:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 8.700mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 M10x1.25
MOUNT HOLE 3 TYPE Threaded
MOUNTING EAR THICKNESS 1.181″
MOUNTING EAR THICKNESS 30mm
MOUNTING EAR 2 THICKNESS 0.594″
MOUNTING EAR 2 THICKNESS 15.100mm
MOUNTING EAR 3 THICKNESS 0.906″
MOUNTING EAR 3 THICKNESS 23mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 IG
TERMINAL 3 SIZE Spade
TERMINAL ID 4 C
TERMINAL 4 SIZE Spade
TERMINAL ID 5 L
TERMINAL 5 SIZE Spade
TERMINAL ID 6 FR
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 7
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.559″



WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AND0511, VND0511
BOSCH AL1310X
DENSO 104210-5890, 210-0644
HONDA 06311-R40-505, 06311R40-505, 31100R40A01, 31100-R40-A01, CSF89
J&N ELECTRICAL PRODUCTS 400-52394, 400-52394R
LESTER 11390
LUCAS ELECTRIC LRA03974

Part fit

Year Make Model Engine
Year Make Model Engine
2008 - 2012 HONDA ACCORD 2.4L
2009 - 2014 ACURA TSX 2.4L
