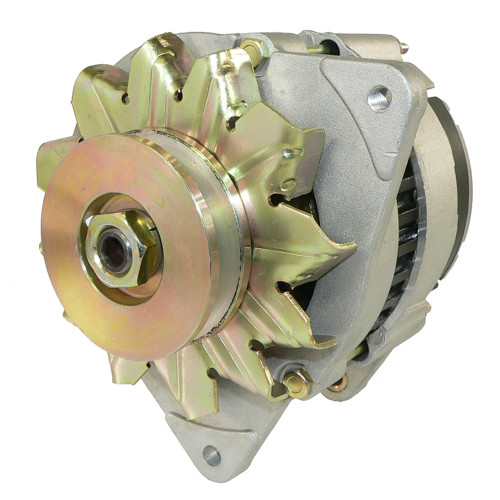

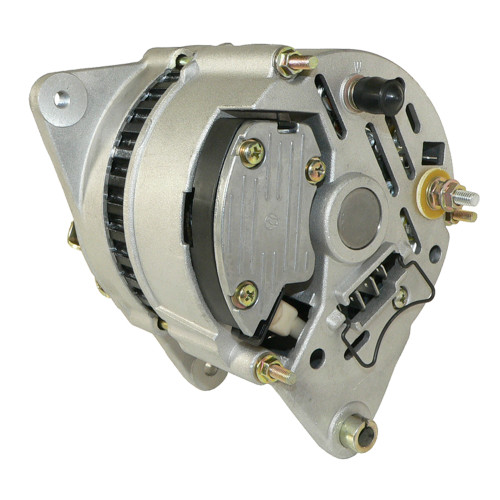

New Alternator for AGCO 8745 & 8765 | BARBER GREENE SA141, SB131, SB140 & SB170 | CASE 1294, 1394, 1490, 1494, 1594, 1690, 3220, 4210, 4230 & 4240 | other Applications; 400-30006, 0-986-036-060, [LUCAS ELECTRIC24100, 24100B, 24145, 24145A, 24145D, 24155, …]; LESTER12072, 12239
$159.99
6 in stock
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 55 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.433″ |
| MOUNTING EAR THICKNESS | 11mm |
| MOUNTING EAR 2 THICKNESS | 0.433″ |
| MOUNTING EAR 2 THICKNESS | 11mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

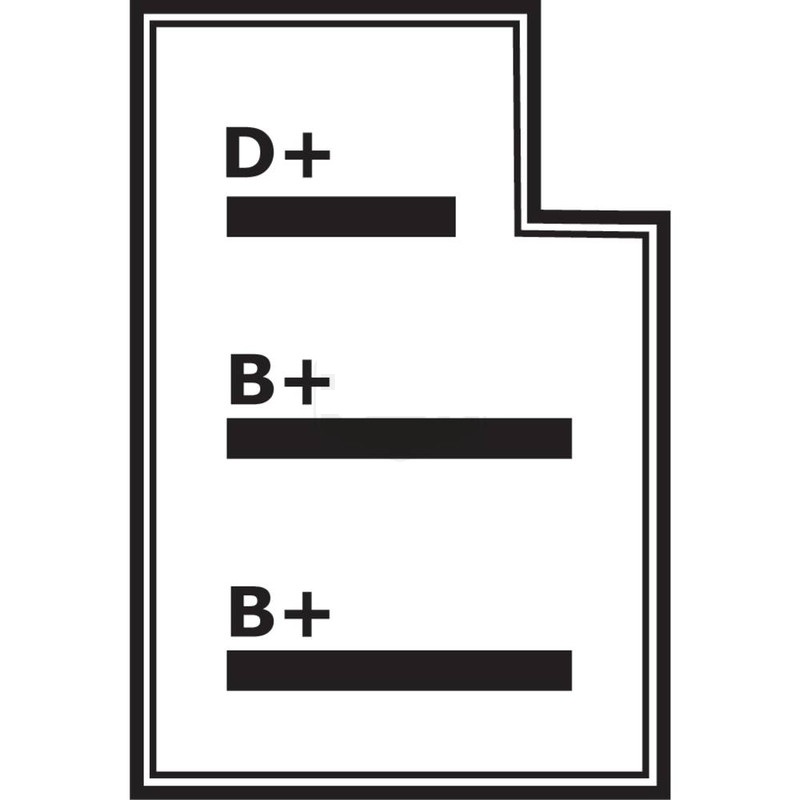

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 Spade |
| TERMINAL ID 3 | W |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.909″ |
| PULLEY OUTER DIAMETER | 73.900mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IA0587, IA0706, IA0811, MG101, MG152, MG216 |
| ATLANTIC QUALITY PARTS | 1200-0504, 1700-0514 |
| BOSCH | 0-986-036-060 |
| CASEIH | 188590A1, 229301A1, 2293601A1, 231295A1 |
| DELCO | DRA0940, DRA3286, DRA3293 |
| J&N ELECTRICAL PRODUCTS | 12072, 12239 |
| LESTER | 400-30006 |
| LETRIKA/ISKRA | IA 0587, IA 0706, IA 0811 |
| LUCAS ELECTRIC | 24100, 24100B, 24145, 24145A, 24145D, 24155, 24155A, 24161, 24161A, 24161B, 24161C, 24161D, 24169, 24198, 24198A, 24198B, 24198E, 24200, 24200A, 24221, 24221A, 24221D, 24228, 24240, 24240A, 24241, 24260, 24260A, 24260B, 24297, 54022058, 54022058A, 54022058B, 54022059, 54022060, 54022060A, 54022162, 54022178, 54022186, 54022188, 54022192, 54022196, 54022196B, 54022214, 54022217, 54022227, 54022228, 54022234D, 54022235, 54022246, 54022251A, 54022263, 54022265, 54022275, 54022275A, 54022281B, 54022285, 54022291, 54022309, 54022312, 54022312A, 54022313A, 54022313B, 54022342, 54022379, 54022393, 54022474, 54022552, 54022635, 54022646, 54022648, 54022663, 54022666, 63324161, A2518, LRA00496, LRA00653, LRB00122 |
| LUCAS TVS | 26045023 |
| MAHLE | MG101, MG152, MG216 |
| MARELLI | 063324161010, 24161, 63324145, 63324161, 63324198, 63324200, 63324221, MAN100, MAN104, MAN106, MAN119, MAN697, MAN701, MAN751 |
| MASSEY FERGUSON | 1475-922-M91, 1475-923-M91, 3519406M91, 3523411M92 |
| PERKINS | 2871A142, 2871A161 |
| ROVER | ADU1148, ADU8810, ADU8858, ASU1238, AUU1036, AUU1053, AUU1184, PRC6367, RTC5846, YLE101560 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Agco | 8745 4WD | 4-268 AGCO Ds | 1997, 1998, 1999 |
| Agco | 8745 4WD | Cummins 4-23 | 2000, 2001 |
| Agco | 8745 | 4-268 AGCO Ds | 1997, 1998, 1999 |
| Agco | 8745 | Cummins 4-23 | 2000, 2001 |
| Agco | 8765 4WD | 4-268 AGCO Ds | 1997, 1998, 1999 |
| Agco | 8765 4WD | Cummins 4-23 | 2000, 2001 |
| Agco | 8765 | 4-268 AGCO Ds | 1997, 1998, 1999 |
| Agco | 8765 | Cummins 4-23 | 2000, 2001 |
| Barber Greene | SA141 | Ford 2714 | 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Barber Greene | SB131 | Ford 2714 | 1976, 1977, 1978, 1979, 1980, 1981, 1982 |
| Barber Greene | SB140 | Ford 2714 | 1976, 1977, 1978, 1979, 1980, 1981, 1982 |
| Barber Greene | SB170 | Ford 2714 | 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 |
| Case/International Harvester | 1294 | 4-219 Diese | 1983, 1984 |
| Case/International Harvester | 1394 | 4-219 Diese | 1983, 1984, 1985, 1986, 1987, 1988 |
| Case/International Harvester | 1490 | 4-219 Diese | 1980, 1981, 1982, 1983 |
| Case/International Harvester | 1494 | 4-219 Diese | 1983, 1984, 1985, 1986, 1987, 1988 |
| Case/International Harvester | 1594 | 6-329 Diese | 1983, 1984, 1985, 1986, 1987, 1988 |
| Case/International Harvester | 1690 | 6-329 Diese | 1980, 1981, 1982, 1983 |
| Case/International Harvester | 3220 | 3-179 Diese | 1994, 1995, 1996, 1997 |
| Case/International Harvester | 3230 | 4-206 Diese | 1994, 1995, 1996, 1997 |
| Case/International Harvester | 4210 | 4-239 Diese | 1994, 1995, 1996, 1997 |
| Case/International Harvester | 4230 | 4-268 Diese | 1994, 1995, 1996, 1997 |
| Case/International Harvester | 4240 | 4-268 Diese | 1994, 1995, 1996, 1997 |
| Case/International Harvester | C100 | 4-244 Diesel | 1998, 1999 |
| Case/International Harvester | C50 | 3-165 Diesel | 1998 |
| Case/International Harvester | C60 | 3-165 Diesel | 1998 |
| Case/International Harvester | C70 | 4-258 Diesel | 1998, 1999 |
| Case/International Harvester | C80 | 4-244 Diesel | 1998, 1999 |
| Case/International Harvester | C90 | 4-244 Diesel | 1998, 1999 |
| Case/International Harvester | CX100 | 4-244 Diesel | 1998, 1999 |
| Case/International Harvester | CX50 | 3-165 Diesel | 1998 |
| Case/International Harvester | CX60 | 3-165 Diesel | 1998 |
| Case/International Harvester | CX70 | 4-258 Diesel | 1998, 1999 |
| Case/International Harvester | CX80 | 4-244 Diesel | 1998, 1999 |
| Case/International Harvester | CX90 | 4-244 Diesel | 1998, 1999 |
| International | 364 | IHC 154 Diese | 1976, 1977 |
| International | 384 Row Crop or Utility | IHC D-155 Diese | 1978, 1979, 1980, 1981, 1982 |
| International | 384 Row Crop or Utility | IHC D-179 Diese | 1978, 1979, 1980, 1981, 1982 |
| International | 474 | 1973, 1974, 1975, 1976 | |
| International | 484 Row Crop or Utility | IHC D-179 Diese | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| International | 584 Row Crop or Utility | IHC D-206 Diese | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| International | 684 Row Crop or Utility | IHC D-239 Diese | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| International | 784 Row Crop or Utility | IHC D-246 Diese | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| International | 884 Row Crop or Utility | IHC D-268 Diese | 1979, 1980, 1981, 1982, 1983, 1984 |
| International | Hydro 84 | IHC D-256 Diese | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Jaguar | XJ12 | 5.3 | 1976, 1977, 1978, 1979, 1981 |
| Jaguar | XJ6 | 4.2 | 1976, 1977, 1978, 1979, 1980 |
| Jaguar | XJS | 5.3 | 1976, 1977, 1978, 1979, 1980, 1981 |
| JCB | 110 | Perkins 4-24 | 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
| JCB | 110B | Perkins 4-24 | 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
| JCB | 110C | Perkins 4-24 | 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
| JCB | 1400 / 1400B | Perkins 4-23 | 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| JCB | 1500 / 1500B | Perkins 4-23 | 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| JCB | 1700 / 1700B | Perkins 4-23 | 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| JCB | 2 | Perkins Engine | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3 | Perkins Engine | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3C | Perkins 4-23 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3C1400 | Perkins 4-23 | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3C1550 | Perkins 4-23 | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3CX Sitemaster | Perkins 4-23 | 1980, 1981, 1982, 1983, 1984 , 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
| JCB | 3D1700 | Perkins 4-23 | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 3DS | Perkins Engine | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 410 | Perkins 6-35 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| JCB | 412 | Perkins Engine | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993 |
| JCB | 413 | Perkins 6-35 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
| JCB | 415 | Perkins Engine | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993 |
| JCB | 418 | Perkins 6-35 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
| JCB | 420 | Perkins 6-35 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
| JCB | 430 | Perkins 6-35 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
| JCB | 4CN | Perkins 4-23 | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 4D | Perkins 4-23 | 1980 |
| JCB | 4DS | Perkins Engine | 1980, 1981, 1982, 1983, 1984, 1985 |
| JCB | 520 Cherry Picker | Perkins 4-23 | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| JCB | 520 | Perkins 4-23 | 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 |
| JCB | 525 | Perkins Engine | 1978, 1979, 1980, 1981, 1982 |
| JCB | 525B | Perkins 4-23 | 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 |
| JCB | 530 | Perkins 4-23 | 1987, 1988, 1989, 1990, 1991 |
| JCB | 530B | Perkins 4-23 | 1987, 1988, 1989, 1990, 1991 |
| JCB | 540 | Perkins Engine | 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 |
| JCB | 540B | Perkins Engine | 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 |
| JCB | 8 | Perkins 6-35 | 1972, 1973, 1974 |
| JCB | 805 | Perkins 4-23 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 805B | Perkins 4-23 | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 806 | Perkins 4-24 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 806B | Perkins 4-24 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 806C | Perkins 4-24 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 807 | Perkins 6-35 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 807B | Perkins 6-35 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 807C | Perkins 6-35 | 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| JCB | 808 | Perkins 6-35 | 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980 |
| JCB | 811 | Perkins 6-35 | 1985, 1986, 1987, 1988 |
| JCB | 812 | Perkins 6-35 | 1985, 1986, 1987, 1988, 1989, 1990 |
| JCB | 814 | Perkins 6-35 | 1985, 1986, 1987, 1988, 1989, 1990 |
| JCB | 817 | Perkins 6-35 | 1985, 1986, 1987, 1988 |
| JCB | 818 | Perkins 6-35 | 1985, 1986, 1987, 1988, 1989, 1990 |
| JCB | 820 | Perkins 6-35 | 1985, 1986, 1987, 1988, 1989, 1990 |
| JCB | 8C | Perkins 6-35 | 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| JCB | 8D | Perkins 6-35 | 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| Lister | HL3 Series | 1986, 1987, 1988 | |
| Lister | HL4 Series | 1986, 1987, 1988 | |
| Lister | HL6 Series | 1986, 1987, 1988 | |
| Lister | HR2 / HR3 Series | 1986, 1987, 1988 | |
| Lister | HR4 / HR6 Series | 1986, 1987, 1988 | |
| Lister | LPWS4 Alpha Series | 3 & 4 Cyl. Engine | |
| Lister | LPWS4 Alpha | 3/4-Cy | 1985 |
| Lister | ST1 Series | 1986, 1987, 1988 | |
| Lister | ST1 | 1986, 1987, 1988 | |
| Lister | ST2 Series | 1986, 1987, 1988 | |
| Lister | ST2 | 1986, 1987, 1988 | |
| Lister | ST3 Series | 1986, 1987, 1988 | |
| Lister | ST3 | 1986, 1987, 1988 | |
| Lotus | ECLAT | 2 | 1975, 1976, 1977, 1978, 1979, 1980 |
| Lotus | ESPRIT | 2 | 1976, 1977, 1978, 1979 |
| Lotus | ESPRIT | 2.2 | 1980, 1981, 1982, 1983, 1984 |
| Massey Ferguson | 50E / 50H | ||
| Massey Ferguson | 50E | 1993 | |
| Massey Ferguson | 50H | 1993 | |
| Massey Ferguson | MF-1200 | 1971, 1972 | |
| Massey Ferguson | MF-184 | AD4-236 Diesel | 1986, 1987, 1988, 1989 |
| Massey Ferguson | MF-184 | Perkins AD4-236 Diesel | 1986, 1987, 1988, 1989 |
| Massey Ferguson | MF-240 | Perkins AD3-152 Diesel | 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Massey Ferguson | MF-273 | AD4-236 Diesel | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Massey Ferguson | MF-273 | Perkins AD4-236 Diesel | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Massey Ferguson | MF-274 | AD4-236 Diesel , Diesel | 1982, 1983, 1984, 1985, 1986 |
| Massey Ferguson | MF-274 | Perkins AD4-236 Diesel | 1982, 1983, 1984, 1985, 1986 |
| Massey Ferguson | MF-283 | AD4-248 Diesel | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Massey Ferguson | MF-283 | Perkins AD4-248 Diesel | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Massey Ferguson | MF-284 | Perkins AD4-236 Diese | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 |
| Massey Ferguson | MF-294 | 6-358 Diesel | 1982, 1983, 1984, 1985, 1986 |
| Massey Ferguson | MF-294 | Perkins 6-358 Diesel | 1982, 1983, 1984, 1985, 1986 |
| Massey Ferguson | MF-375 | Perkins 4-236 Diesel | 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
| Massey Ferguson | MF-390 | Perkins 4-248 Diesel | 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
| Massey Ferguson | MF-390T | Perkins 4-236 Diesel | 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
| Massey Ferguson | MF-399 | Perkins 6-354 Diesel | 1987, 1988, 1989, 1990, 1991, 1992 |
| Massey Ferguson | MF-4225 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4233 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4235 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4243 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4245 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4253 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4255 | Perkins 1004.4 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4260 | Perkins 1006.6 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4263 | Perkins 1006.6 Diesel | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-4270 | Perkins 1006.6 Diese | 1997, 1998, 1999, 2000 |
| Massey Ferguson | MF-44B Wheel Loader | 1971, 1972, 1973, 1974, 1975, 1976, 1977 | |
| MG | MGB | 1.8 | 1979, 1980 |
| New Holland | L865 | 332T Diese | 1994, 1995, 1996, 1997, 1998, 1999 |
| New Holland | LS180 | 332T Diese | |
| New Holland | LX865 | 332T Diese | 1994, 1995, 1996, 1997, 1998, 1999 |
| New Holland | LX885 | 332T Diese | 1994, 1995, 1996, 1997, 1998, 1999 |
| Perkins | 1000-6 | 5977cc, 5977cc 6-Cyl | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | 1004-4 | 3980cc, 3980cc 4-Cyl | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | 3.152 | 2489cc, 2489cc 3-Cyl | 1979 |
| Perkins | 4.108 | 1759cc, 1759cc 4-Cyl | 1979 |
| Perkins | 4.135 | 2209cc, 2209cc 4-Cyl | 1979 |
| Perkins | 4.236 | 3860cc, 3860cc 4-Cyl | 1979 |
| Perkins | 903-27 | 2699cc, 2699cc 3-Cyl | |
| Perkins | Various Models | 1000-6 (5977cc) 6cy | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | Various Models | 1004-4 (3980cc) 4cy | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | Various Models | 103-13 (1294cc) 3cy | |
| Perkins | Various Models | 103-15 (1496cc) 3cy | |
| Perkins | Various Models | 104-19 (1995cc) 4cy | |
| Perkins | Various Models | 104-22 (2216cc) 4cy | |
| Perkins | Various Models | 3.152 (2489cc) 3cy | |
| Perkins | Various Models | 4.108 (1759cc) 4cy | |
| Perkins | Various Models | 4.135 (2209cc) 4cy | |
| Perkins | Various Models | 4.236 (3860cc) 4cy | |
| Perkins | Various Models | 404C-22 (2216cc) 4cy | |
| Perkins | Various Models | 6.354 (5800cc) 6cy | |
| Perkins | Various Models | 903-27 (2699cc) 3cy | |
| Triumph | TR7 | 2 | 1980, 1981, 1982 |
| Triumph | TR8 | 3.5 | 1980, 1981, 1982 |
| White | 6410 | Cummins 4-23 | |
| White | 6510 | Cummins 4-23 |
