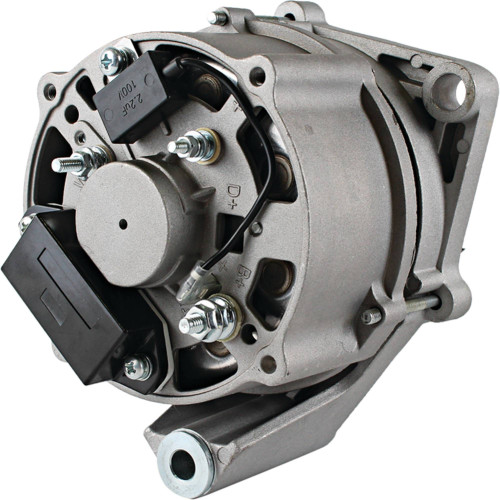

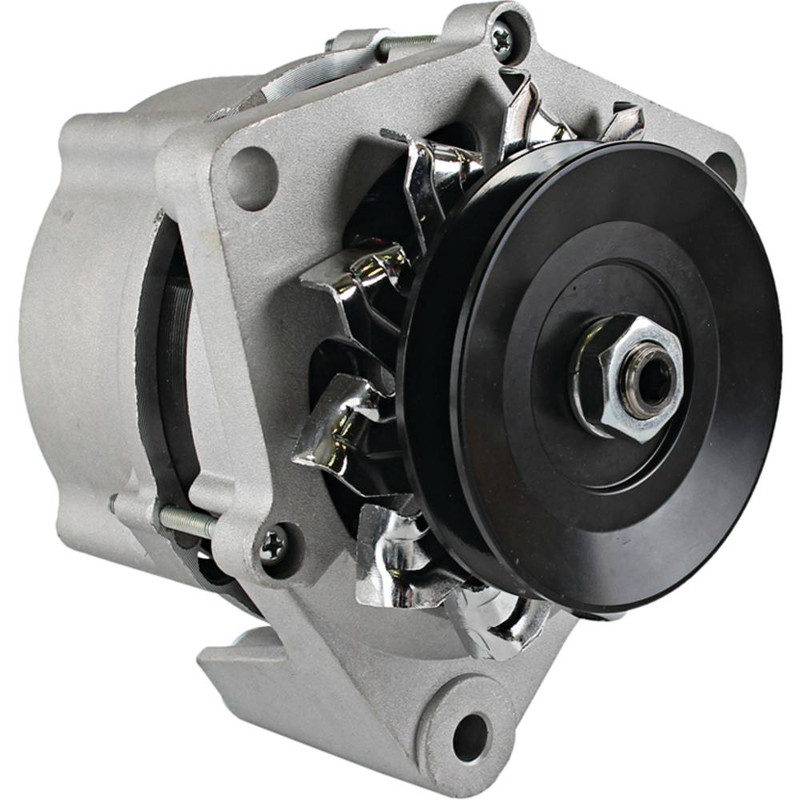

NEW Alternator for AGCO Challenger MT334, MT364 & MASSEY FERGUSON MF-451 Tractors; 400-24262, 3589435M91, 3589435M910, 9120080159, 9-120-080-159
$259.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 35 |
| CONDITION | New |
| REGULATOR CLOCK | 7:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 12.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.600mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.764″ |
| MOUNTING EAR THICKNESS | 19.400mm |
| MOUNTING EAR 2 THICKNESS | 0.764″ |
| MOUNTING EAR 2 THICKNESS | 19.400mm |
| MOUNTING EAR 3 THICKNESS | 3.150″ |
| MOUNTING EAR 3 THICKNESS | 80mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | W |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | D+ |
| TERMINAL 4 SIZE | M4x0.7 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.858″ |
| PULLEY OUTER DIAMETER | 98mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| AGCO | 3589435M91 |
| ARROWHEAD | 400-24128 |
| ATLANTIC QUALITY PARTS | 1200-0526, 4100-0501 |
| BOSCH | 9120080159, 9-120-080-159 |
| MASSEY FERGUSON | 3589435M91, 3589435M910 |
| ZM SOLENOIDS | 901.01.28 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2002 - 2003 | MASSEY FERGUSON | MF-451 | 3.3L 3-Cyl Perkins Diesel |
| 2004 - 2005 | MASSEY FERGUSON | 451 | 3.3L 3-Cyl Perkins Diesel |
| All | AGCO CHALLENGER | MT334 | Perkins Diesel |
| All | AGCO CHALLENGER | MT364 | Perkins Diesel |
