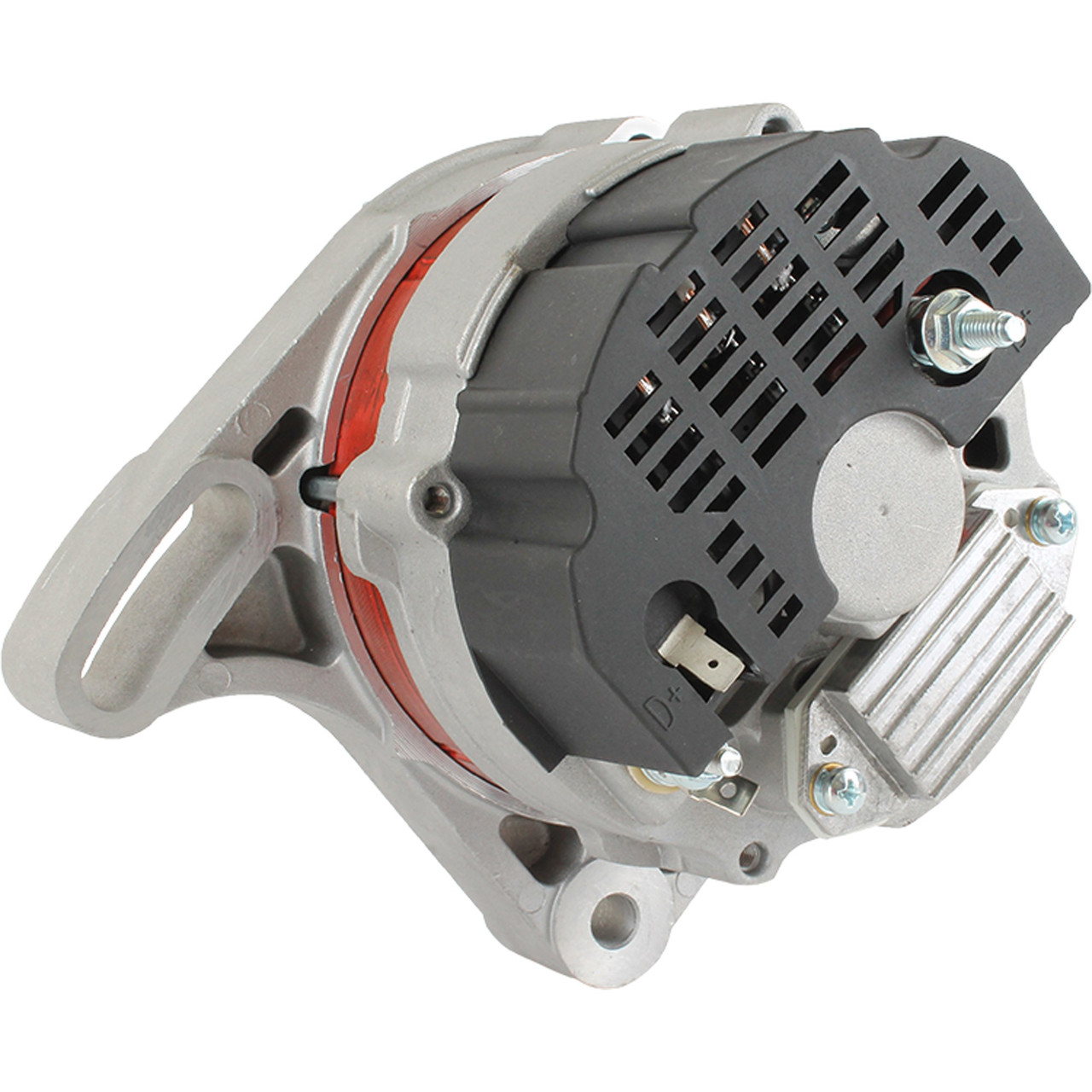

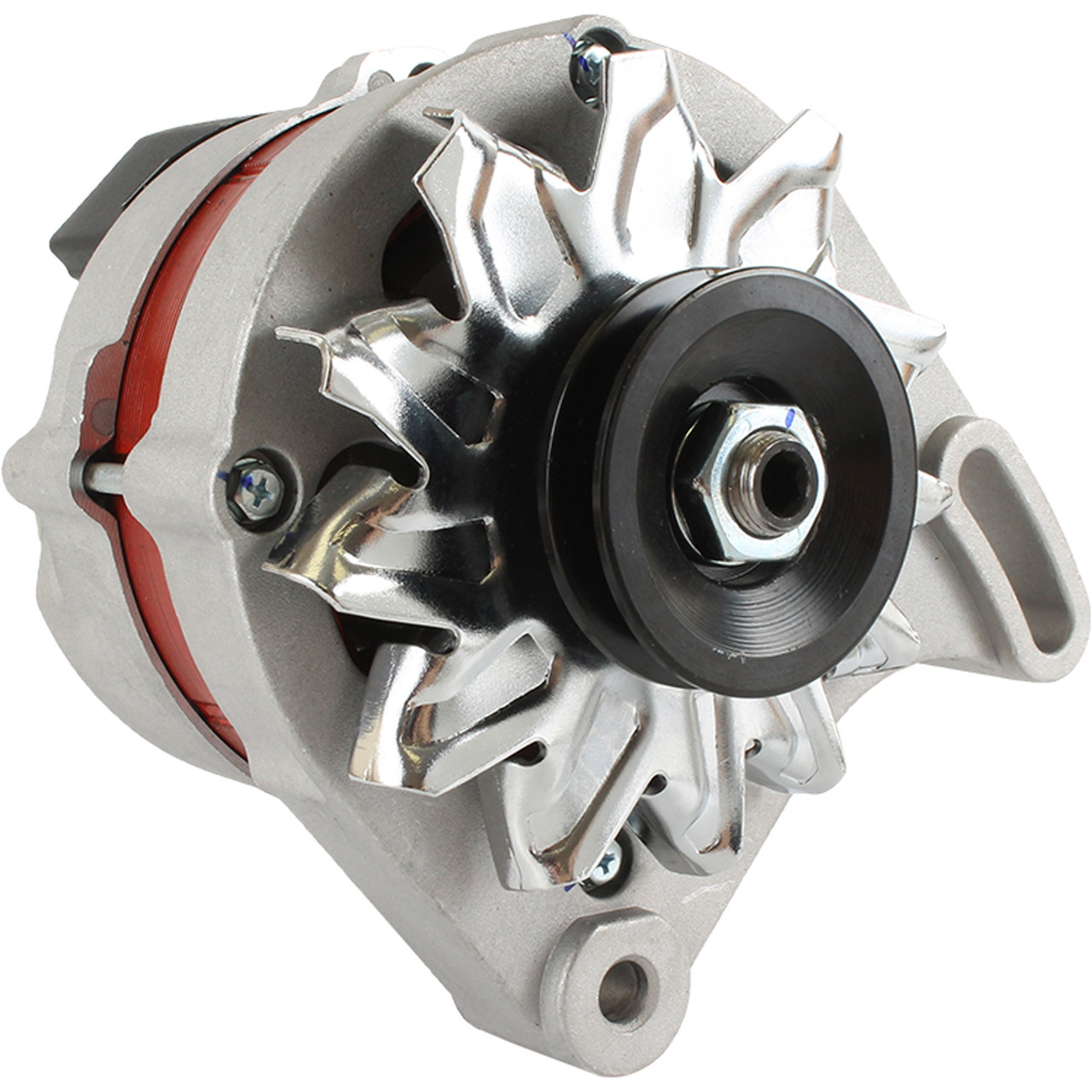

NEW Alternator for BCS VALIANT 500, GOLDINI EURO 45 & IMEF HE14.S Applications; 400-29023, 11572690, IA0735, MG432, DRA5641; LESTER 20692, 20695
$189.99
w/ LOMBARDINI LDW2204 & w/DEUTZ F3M1008 ENGINES
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 12 |
| AMPS | 45 |
| MOUNT HOLE ID 1 | 10mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Slotted |
| MOUNTING EAR THICKNESS | 1.260″ |
| MOUNTING EAR THICKNESS | 32mm |
| MOUNTING EAR 2 THICKNESS | 1.260″ |
| MOUNTING EAR 2 THICKNESS | 32mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | W |
| TERMINAL 4 SIZE | Combo |
| POLARITY | Negative |
| WARRANTY | 1 Year |
| ADD’L INFO | BCS VALIANT 500 w/2199ccm LOMBARDINI LDW2204 ENGINE 2008-ON
GOLDINI EURO 45 w/ LOMBARDINI LDW1603/6 ENGINE 2008-ON IMEF HE14.S w/DEUTZ F3M1008 ENGINE 1994-98 |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AIA0026, IA0735, MG432 |
| DELCO | DRA5641 |
| J&N ELECTRICAL PRODUCTS | 400-29023 |
| LESTER | 20692, 20695 |
| LETRIKA/ISKRA | 11.201.735, AAK4580, IA 0735 |
| LOMBARDINI | 11572690 |
| LUCAS ELECTRIC | LRA03517 |
| MAHLE | IA0735, MG432 |
| MARELLI | 63320102, 63321176, 63321189 |
