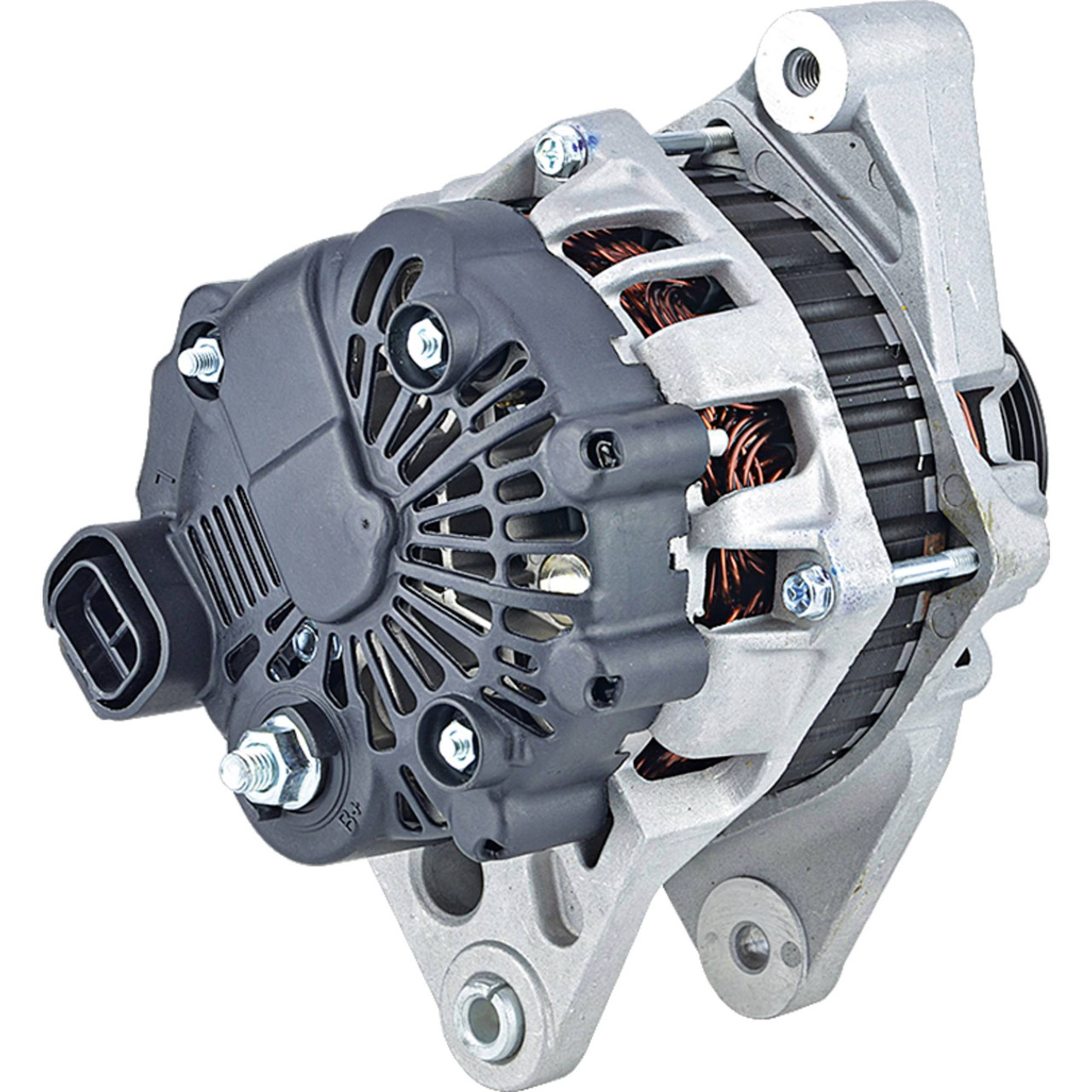

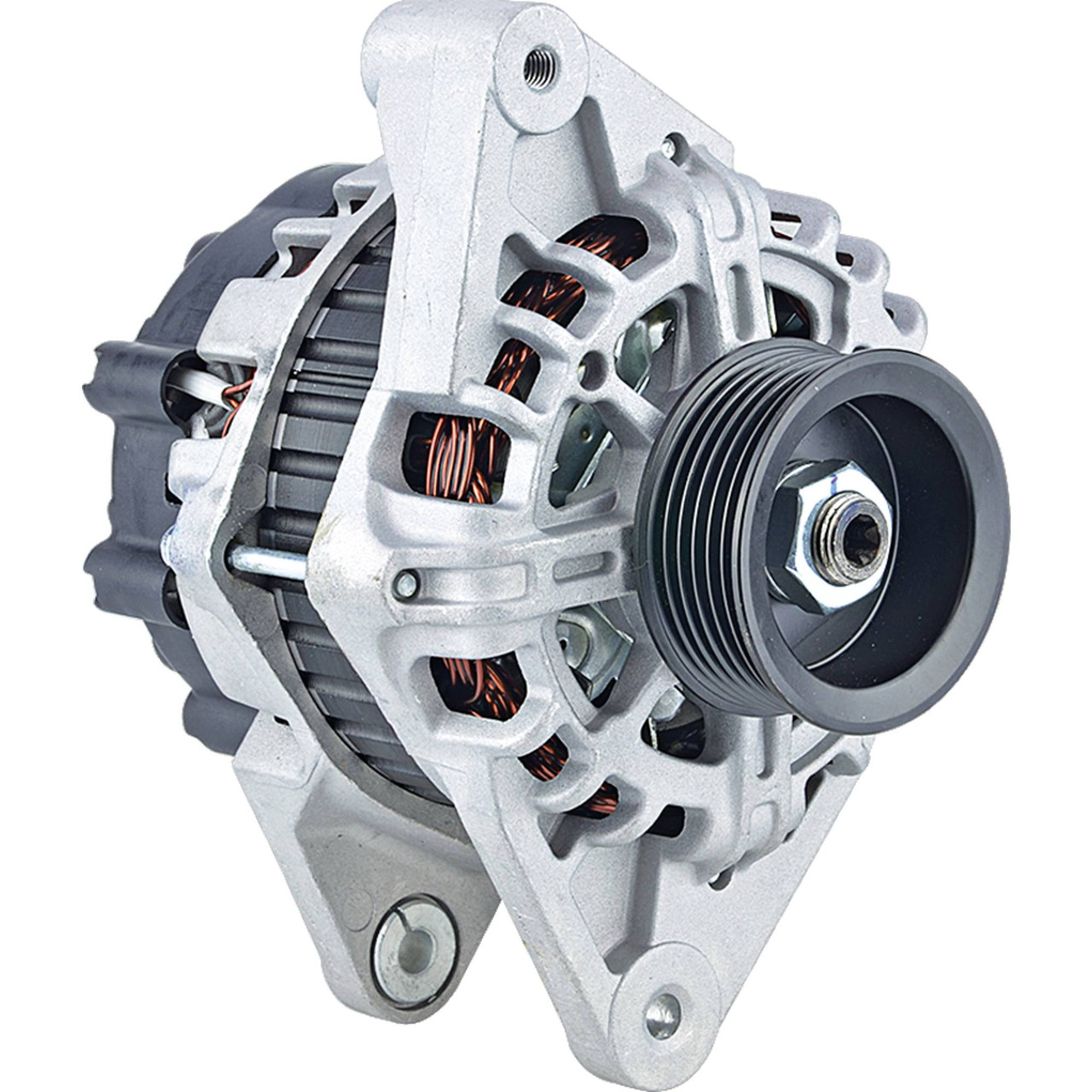

NEW Alternator for BOBCAT S630 Skid Steer Loader; 400-40137, 7015581, 425581
$209.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
90 |
| REGULATOR CLOCK |
8:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
8.300mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
1.417″ |
| MOUNTING EAR THICKNESS |
36mm |
| MOUNTING EAR 2 THICKNESS |
0.502″ |
| MOUNTING EAR 2 THICKNESS |
12.750mm |
| MOUNTING EAR 3 THICKNESS |
0.622″ |
| MOUNTING EAR 3 THICKNESS |
15.800mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |

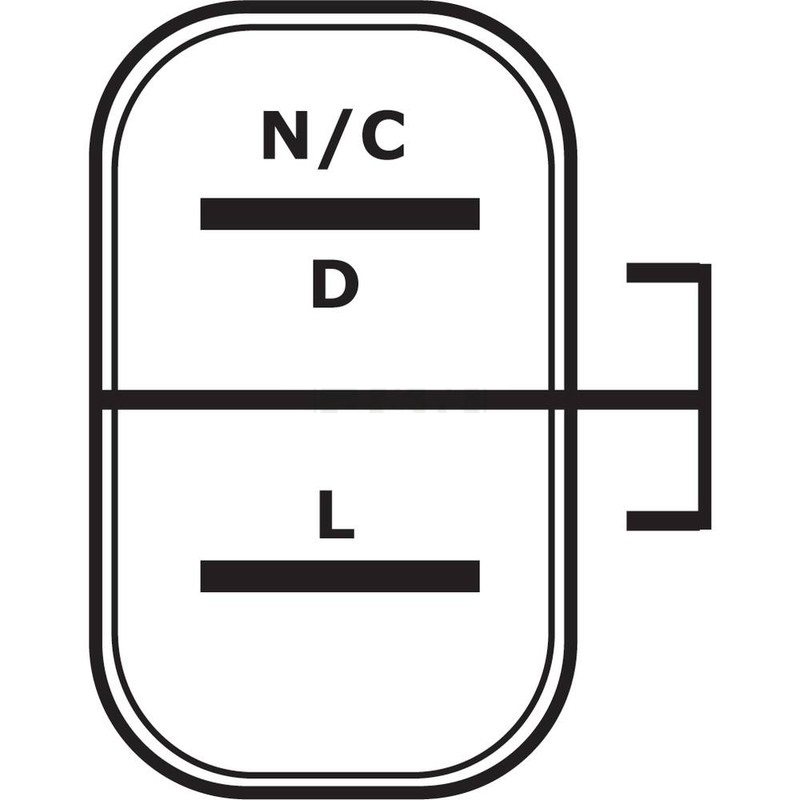

| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
L |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
N/C |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
6 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.622″ |
| PULLEY OUTER DIAMETER |
66.600mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AVA0160 |
| BOBCAT |
7015581 |
| J&N ELECTRICAL PRODUCTS |
400-40137 |
| VALEO |
425581 |
