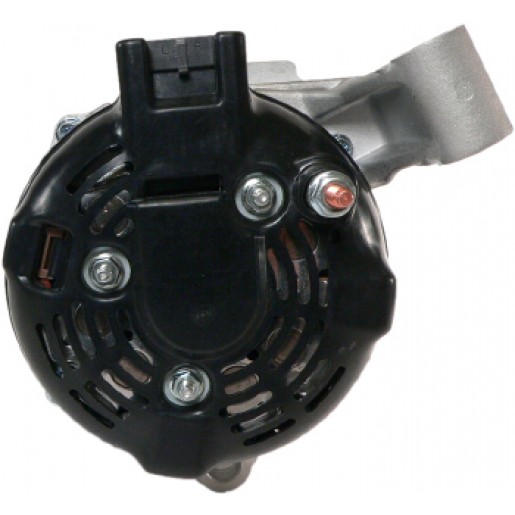

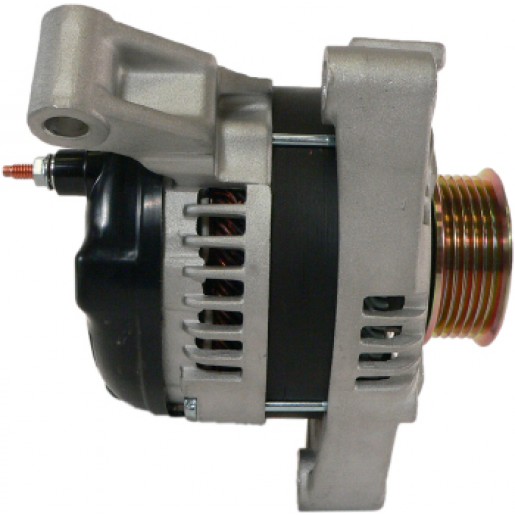

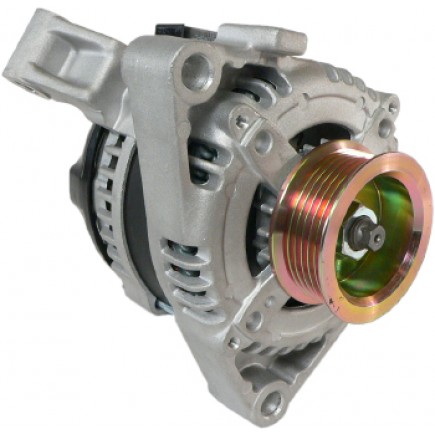

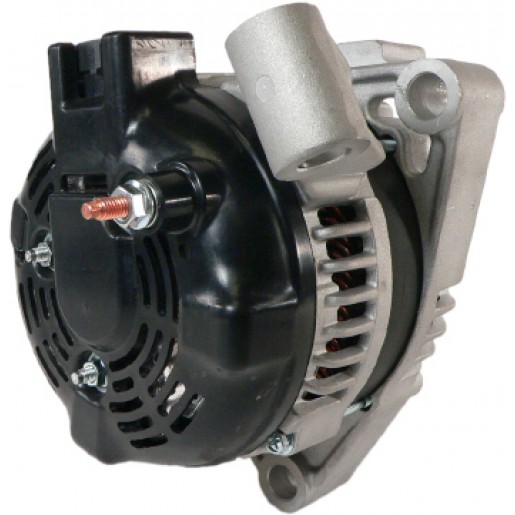

NEW Alternator for CADILLAC Applications; AND0404, 104210-3340, 104210-4380, 25750935, 25766345; LESTER 11037
$289.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 150 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 12.300mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.700mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 1.299″ |
| MOUNTING EAR THICKNESS | 33mm |
| MOUNTING EAR 2 THICKNESS | 1.378″ |
| MOUNTING EAR 2 THICKNESS | 35mm |
| MOUNTING EAR 3 THICKNESS | 1.299″ |
| MOUNTING EAR 3 THICKNESS | 33mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | F |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 2.559″ |
| GROOVE OD | 65mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.811″ |
| PULLEY OUTER DIAMETER | 71.400mm |
