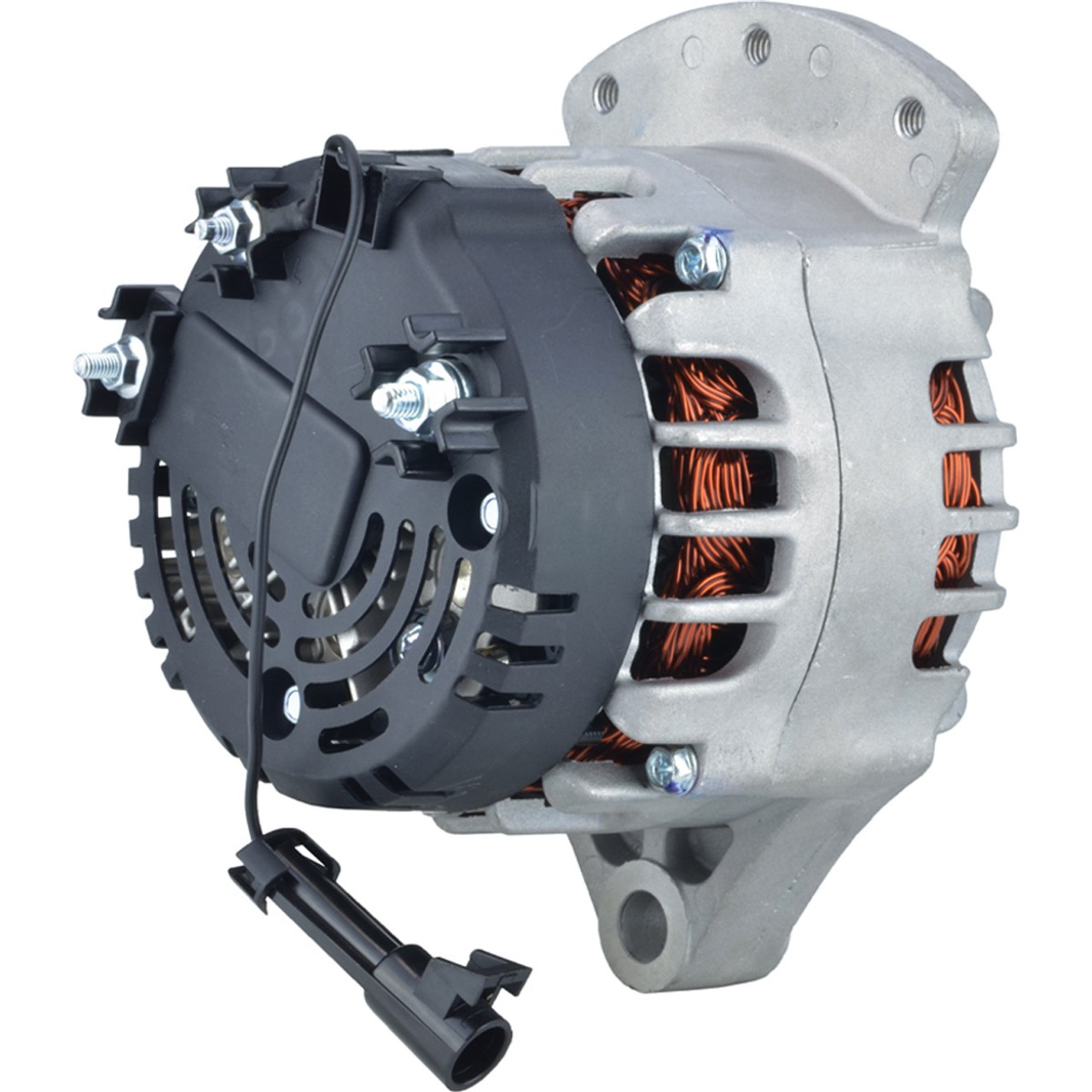

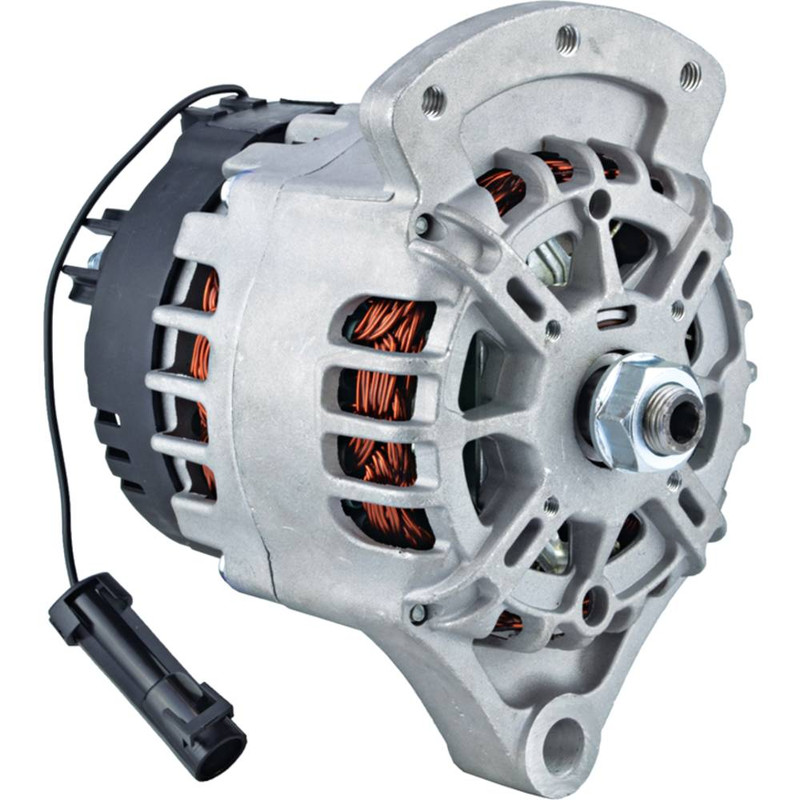

NEW Alternator for CARRIER TRANSICOLD Genesis TM900, TM1000,TR900 & OTH Models; AVA0168, 400-40143, 30-01114-02
$219.99
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | Left Hand Threaded Rotor Shaft and Pulley Nut |
| VOLT | 12 |
| AMPS | 105 |
| REGULATOR CLOCK | 12:30 |
| ROTATION DIRECTION | Counter Clockwise |
| MOUNT HOLE ID 1 | 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 5/16-18 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 5/16-18 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | 13.300mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.433″ |
| MOUNTING EAR THICKNESS | 11mm |
| MOUNTING EAR 2 THICKNESS | 0.433″ |
| MOUNTING EAR 2 THICKNESS | 11mm |
| MOUNTING EAR 3 THICKNESS | 0.433″ |
| MOUNTING EAR 3 THICKNESS | 11mm |
| MOUNTING EAR 4 THICKNESS | 1.063″ |
| MOUNTING EAR 4 THICKNESS | 27mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | B- |
| TERMINAL 4 SIZE | M5x0.8 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.669″ |
| SHAFT PULLEY OD | 17mm |
| SHAFT | Left Hand Thread |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AVA0168 |
| CARRIER TRANSICOLD | 30-01114-02 |
| J&N ELECTRICAL PRODUCTS | 400-22000, 400-40172 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Carrier Transicold | Extra Series | Kubota V190 | 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Carrier Transicold | Extra Series | Kubota V220 | 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Carrier Transicold | Extra | 1800cc, 1.8L L4 Kubota V1902-TV | |
| Carrier Transicold | Extra | 2100cc, 2.1L L4 Kubota V2203-TV | |
| Carrier Transicold | Genesis TM1000 | 2100cc, 2.1L L4 Kubota V2203-DI | |
| Carrier Transicold | Genesis TM900 | 2100cc, 2.1L L4 Kubota V2203-DI | |
| Carrier Transicold | Genesis TR900 | 2100cc, 2.1L L4 Kubota V2203-TV | |
| Carrier Transicold | Genesis | Kubota V2203 | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Carrier Transicold | Pheonix Ultra XL | 2100cc, 2.1L L4 Kubota V2203-DI | |
| Carrier Transicold | Ultima 53 | 2100cc, 2.1L L4 Kubota V2203-DI | |
| Carrier Transicold | Ultima | Kubota V2203 | 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
