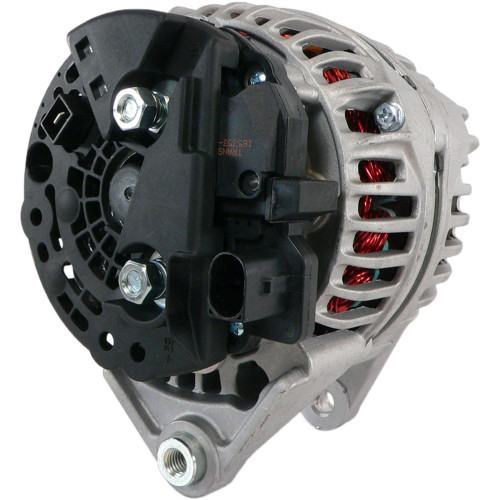

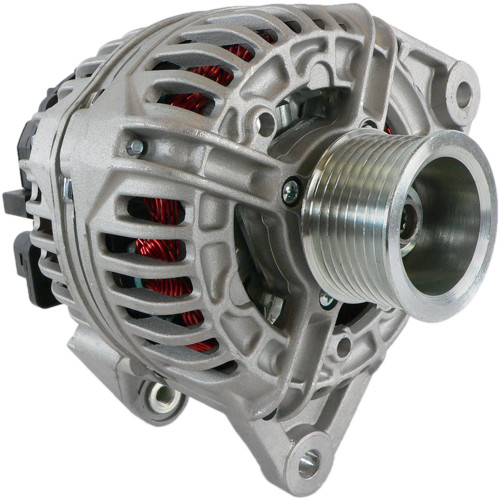

NEW Generator for GOLDONI MONDIAL 107, GOLDONI MOTOCOLTIVATORE 611 Tractor – Farm & OTH Applications; 420-24001, 06000, 6000, 8034993
$289.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 4:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 11.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10x1.50 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.563″ |
| MOUNTING EAR THICKNESS | 14.300mm |
| MOUNTING EAR 2 THICKNESS | 0.571″ |
| MOUNTING EAR 2 THICKNESS | 14.500mm |
| MOUNTING EAR 3 THICKNESS | 0.819″ |
| MOUNTING EAR 3 THICKNESS | 20.800mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |

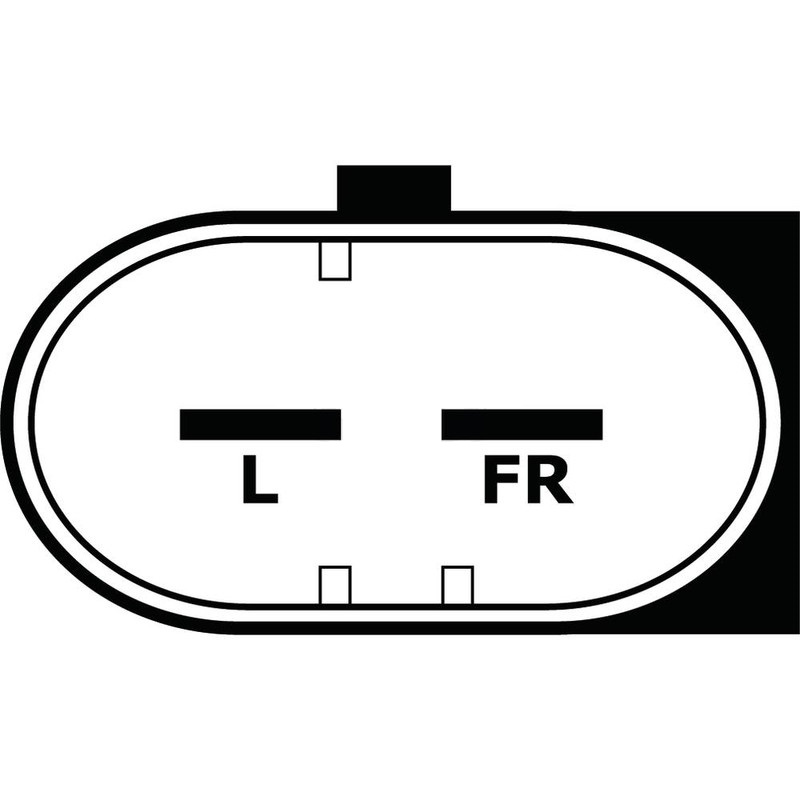

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | FR |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | P |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | B2+ |
| TERMINAL 6 SIZE | M8x1.25 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.362″ |
| PULLEY OUTER DIAMETER | 60mm |
