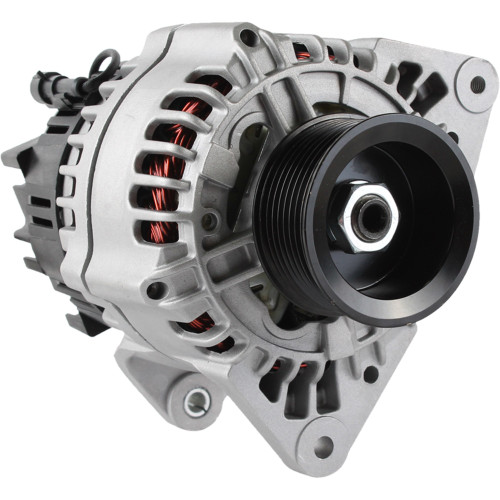

NEW Alternator for CASE IH MXM120, MXM130, MXM140, MXM155, MXM175 & MXM190 Tractors; 87361085, 87652089, 87755553; LESTER 12792
$209.99
Specifications
| UNIT TYPE |
Alternator |
| FAMILY |
Letrika/MAHLE AAK |
| VOLT |
12 |
| AMPS |
120 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
8.200mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
D+ |
| TERMINAL 3 SIZE |
M5x0.8 |
| TERMINAL ID 4 |
W |
| TERMINAL 4 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
8 |
| PULLEY TYPE |
Solid |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AIA0017, IA1225, MG443 |
| CASEIH |
87361085, 87652089, 87755553 |
| FORD/NEW HOLLAND |
87652089, 87755553 |
| J&N ELECTRICAL PRODUCTS |
400-29015 |
| LESTER |
12792 |
| LETRIKA/ISKRA |
11.203.493, 11.203.729, 11.203.823, AAK5591, AAK5745, AAK5760, IA 1225 |
| LOMBARDINI |
5840.260 |
| LUCAS ELECTRIC |
LRA03787 |
| MAHLE |
11.203.493, 11.203.729, 11.203.823, AAK5591, AAK5745, AAK5760, IA1225, MG443 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Case/International Harvester |
MXM120 |
6-456 Diesel |
05-On |
| Case/International Harvester |
MXM130 |
6-456 Diesel |
02-On |
| Case/International Harvester |
MXM140 |
6-456 Diesel |
02-On |
| Case/International Harvester |
MXM155 |
6-456 Diesel |
02-On |
| Case/International Harvester |
MXM175 |
6-456 Diesel |
02-On |
| Case/International Harvester |
MXM190 |
6-456 Diesel |
02-On |
