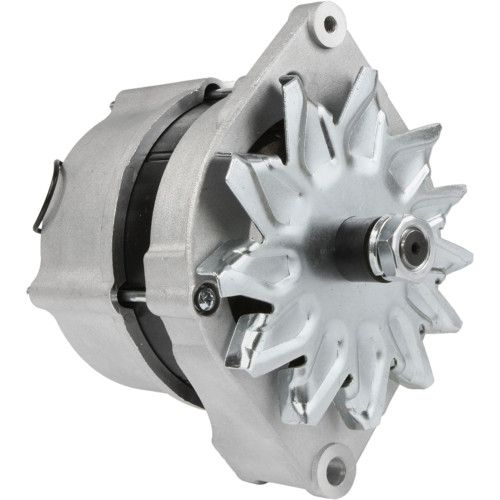

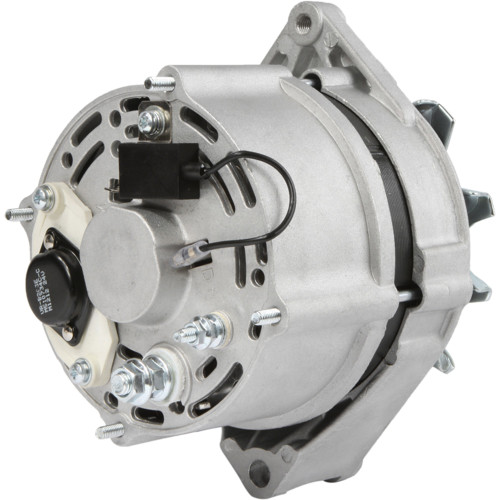

NEW Alternator for CASEIH, JOHN DEERE & KOMATSU Engines – Industrial; 400-24077, 3144988R93, A187916, AR187916, P941542, AL12148, AT161324, AT175195, 0120488206, 0120488294; LESTER 12148

$139.99

Email
Categories: , , , , ,

Specifications

UNIT TYPE Alternator
CRITICAL NOTE Adjusting Ear is Unthreaded
VOLT 24
AMPS 45
REGULATOR CLOCK 9:00
MOUNT HOLE ID 1 8.600mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.630″
MOUNTING EAR THICKNESS 16mm
MOUNTING EAR 2 THICKNESS 2″
MOUNTING EAR 2 THICKNESS 50.800mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 W
TERMINAL 4 SIZE Spade
POLARITY Negative
SHAFT PULLEY OD 0.669″
SHAFT PULLEY OD 17mm
SHAFT M16x1.50
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD B0120488206, B0120488298, BAL9940X, IA0759, IA1362, MG568, MG84
BOSCH 0120488206, 0-120-488-206, 0120488294, 0-120-488-294, 0-120-488-298, 0-120-489-071, 0120489481, 9120060039, 9-120-060-039, 9-120-060-045, AL9940X, F-005-A00-003, F005A00022, F-005-A00-022, F-005-A00-027
CASEIH 3144988R93, A187916, AR187916, P941542
CUMMINS 3020678, 302678, 3284392, 3920678, 93028
DELCO 19020536
DRESSER 3144-988-R93
J&N ELECTRICAL PRODUCTS 400-24077
JCB 714/31500
JOHN DEERE AL12148, AT161324, AT175195, AT185696, AT207608, SE501341, SE501362, TY24322, TY26045, TY6774, TY6798
LESTER 12148, 12440, 12441, 12587
LETRIKA/ISKRA IA 0759, IA 1362
LUCAS ELECTRIC LRA02436, LRA02495
MAHLE 11.201.759, 11.201.941, AAK1387, AAK3336, IA0759, MG568, MG84

Applications

MAKE MODEL Engine YEAR
Case/International Harvester 1085B 6T-590, Diesel
Case/International Harvester 1086B 6T-590, Diesel
Case/International Harvester 1088 6T-590, Diesel
Case/International Harvester 1150E 6-590, Diesel
Case/International Harvester 1150E 6-830, Diesel
Case/International Harvester 1150G 6-590, Diesel
Case/International Harvester 1155E 6-590, Diesel
Case/International Harvester 1155E 6-830, Diesel
Case/International Harvester 1187C Feller Buncher 6T-830, Diesel
Case/International Harvester 1550 6-830, Diesel
Case/International Harvester 521D 390 Diesel
Case/International Harvester 621 6T-590 Diesel
Case/International Harvester 680K Construction King 6-590 Diesel
Case/International Harvester 688 4-390 Diesel
Case/International Harvester 688BCK Diesel
Case/International Harvester 688C Diesel
Case/International Harvester 721 6T-830 Diesel
Case/International Harvester 780C Construction King 6T-590 Diesel
Case/International Harvester 821 6T-830 Diesel
Case/International Harvester 850D 6-590 Diesel
Case/International Harvester 850E 6-590 Diesel
Case/International Harvester 850G 6-590 Diesel
Case/International Harvester 855D 6-590 Diesel
Case/International Harvester 855E 6-590 Diesel
Case/International Harvester 888 6T-590 Diesel
Case/International Harvester 9010 390 Diesel
Case/International Harvester 9010B 390 Diesel
Case/International Harvester 9020 390 Diesel
Case/International Harvester 9020B 390 Diesel
Case/International Harvester 9030 6T-590 Diesel
Case/International Harvester 9030B 6T-590 Diesel
Case/International Harvester W14B 6-590 Diesel
Case/International Harvester W14C 6-590 Diesel
Case/International Harvester W18B 504 Diesel
Case/International Harvester W20C 504 Diesel
Case/International Harvester W30 504 Diesel
John Deere 110 JD 4.5L 80HP Diesel
John Deere 120
John Deere 120C JD 4.5L 89HP Diesel
John Deere 120C
John Deere 160 LC JD 4.5L 109HP Diesel
John Deere 160CLC
John Deere 160LC
John Deere 190E 4039 Diesel 1994
John Deere 190E 1994
John Deere 200C LC JD 6.8L 141HP Diesel
John Deere 200CLC 1995
John Deere 200LC 1995
John Deere 2054
John Deere 230CLC
John Deere 230LC
John Deere 230LCR 4045 Diesel
John Deere 230LCR 6068 Diesel
John Deere 2554
John Deere 270 LC JD 6.8L 170HP Diesel
John Deere 270CLC
John Deere 270LC
John Deere 330 LC JD 8.1L 235HP Diesel
John Deere 330CLC 0
John Deere 330LC
John Deere 330LCR
John Deere 344G 1995
John Deere 3554
John Deere 370
John Deere 370C LC
John Deere 370C
John Deere 4045DFM70 (Code 3104) 4.5L – 276ci – 4cy 2004, 2005, 2006, 2007
John Deere 4045TFM75 (Code 3142) 4.5L – 276ci – 4cy 2004, 2005, 2006, 2007
John Deere 444G 1995
John Deere 444H 1997
John Deere 444J
John Deere 450 LC 619 Diese
John Deere 450C LC
John Deere 450LC
John Deere 490E 4045 Diesel 1993
John Deere 544H
John Deere 544J
John Deere 570B 359 Diesel
John Deere 570B 1982
John Deere 605C 99HP 4045T Diesel
John Deere 605C JD PT 4.5L 99HP Diesel
John Deere 6068SFM50 (Code 3142) 6.8L – 414ci – 6cy 2004, 2005, 2006, 2007
John Deere 6068TFM75 (Code 3142) 6.8L – 414ci – 6cy 2004, 2005, 2006, 2007
John Deere 6068TFM76 (Code 3142) 6.8L – 414ci – 6cy 2004, 2005, 2006, 2007
John Deere 6090 JD 609
John Deere 624H
John Deere 624J
John Deere 644H
John Deere 644J
John Deere 655B JD 6.8L 120HP Diesel 1982, 1983, 1984, 1985, 1986
John Deere 655B 1982, 1983, 1984, 1985, 1986
John Deere 670B JD 6.8L 142HP Diesel
John Deere 670B 1982
John Deere 670C
John Deere 672B JD 6.8L 142HP Diesel
John Deere 672B 1988
John Deere 672C
John Deere 690E LC 6068 Diesel 1993
John Deere 690E LC JD 6.8L 140HP Diesel
John Deere 690E JD 6.8L 140HP Diesel
John Deere 700H
John Deere 700J JD PT 6.8L 115HP Diesel
John Deere 724J
John Deere 750B 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere 750C
John Deere 750C 1991
John Deere 750C-II
John Deere 750J JD PT 6.8L 145HP Diesel
John Deere 755B JD 6.8L 140HP Diesel 1985, 1986, 1987, 1988, 1989, 1990
John Deere 755B 1985, 1986, 1987, 1988, 1989, 1990
John Deere 770B 1982
John Deere 772B 1982
John Deere 772CH JD PT 8.1L 226HP Diesel
John Deere 790D 6068 Diesel 1993
John Deere 790E LC JD 6.8L 155HP Diesel
John Deere 790E LC
John Deere 792 466 Diesel
John Deere 792 1993
John Deere 792D LC 466 Diesel
John Deere 792D LC
John Deere 850B 619 Diesel 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere 850B 619 Diesel 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
John Deere 850C
John Deere 850C 1991
John Deere 850C-II
John Deere 850J JD 9.0L 185HP Diesel
John Deere 892E LC 466 Diesel
John Deere 892E LC 6078 Diesel 1994
John Deere 992E LC 619 Diesel
John Deere 992E LC 1994
John Deere 992E 619 Diesel
John Deere TC44H
John Deere TC44H 1997
John Deere TC54H
John Deere TC62H
Komatsu D41A 6D102 Engine
Komatsu D41E
Komatsu D41P 6D102 Engine
Komatsu D61EX-12 8300cc, 8.3L 6-Cyl Komatsu S6D114E-1
