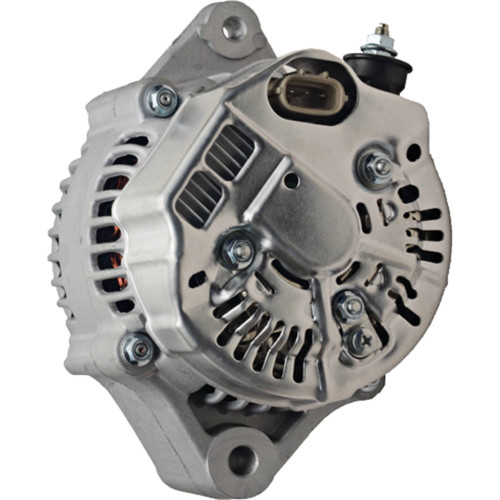

NEW Alternator for CATERPILLAR 302.5C, 303 CR Mini Excavator & CATERPILLAR 902 Wheel Loader; 400-52092, 0R9699, 1449963, 144-9963, 32868-03201, 32B6803201; LESTER 11633
$179.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
90 |
| REGULATOR CLOCK |
12:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.610″ |
| MOUNTING EAR THICKNESS |
15.500mm |
| MOUNTING EAR 2 THICKNESS |
2.272″ |
| MOUNTING EAR 2 THICKNESS |
57.700mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |

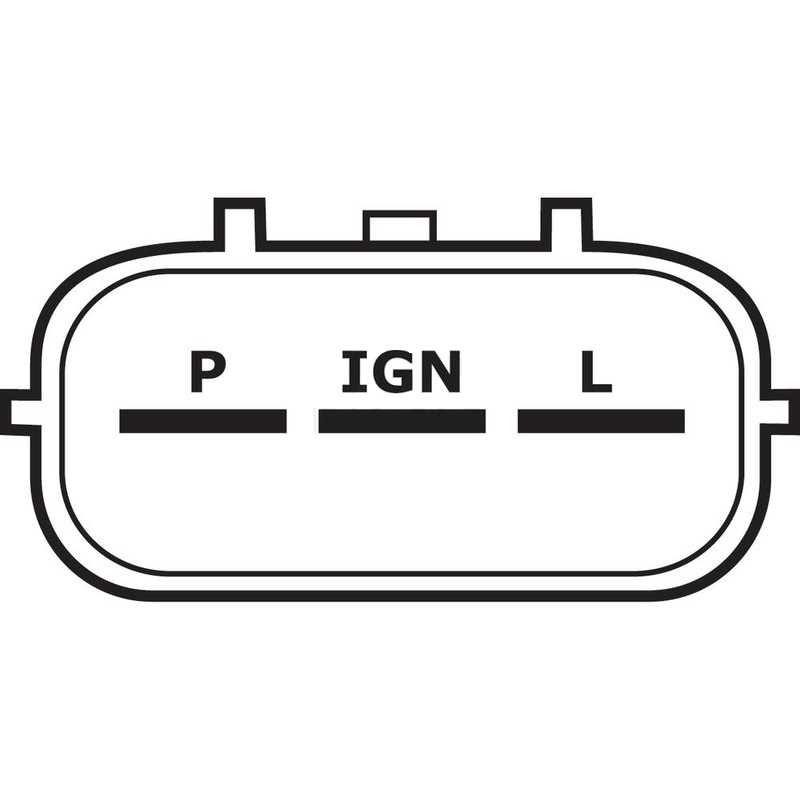

| TERMINAL ID 3 |
P |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IG |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
L |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
2 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.870″ |
| PULLEY OUTER DIAMETER |
72.900mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AND0558, ND102211-1830 |
| CATERPILLAR |
0R9699, 1449963, 144-9963 |
| DENSO |
102211-183, 102211-1830, 102211-9010 |
| J&N ELECTRICAL PRODUCTS |
400-52092 |
| LESTER |
11633 |
| MITSUBISHI |
32868-03201, 32B6803201 |
Applications
Part fit
| MAKE |
MODEL |
Engine |
YEAR |
| Caterpillar |
302.5C |
Mitsubishi S3L2 Engine |
All |
| Caterpillar |
303 CR |
Mitsubishi S3L2 Engine |
All |
| Caterpillar |
902 |
|
All |
