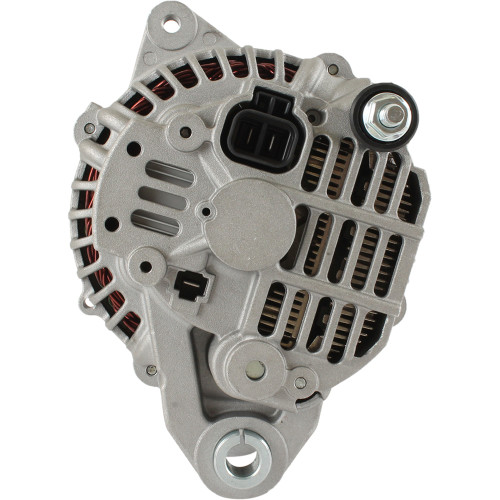

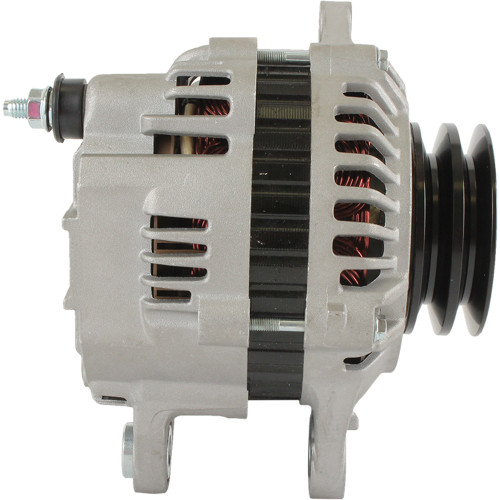

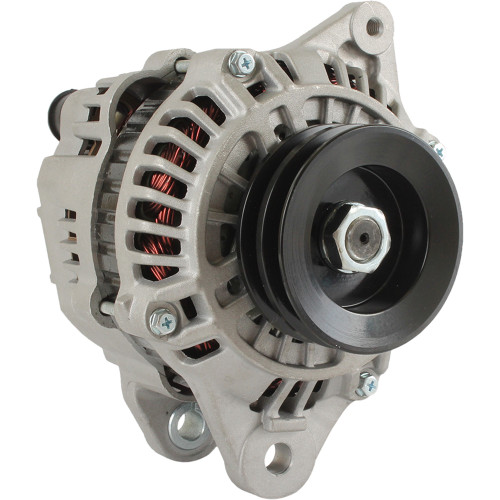

NEW Alternator for CATERPILLAR 308B Mini Excavators & MITSUBISHI Industrial Applications; 400-48095, 139-7850, A003TA8199, A003TA8199ZC, A3TA8199, A3TA8199ZC, ME108147; LESTER 20059
$209.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 24 |
| AMPS | 35 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.100mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 2 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.260″ |
| PULLEY OUTER DIAMETER | 82.800mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | A3TA8199, AMT0263 |
| CATERPILLAR | 139-7850 |
| LESTER | 20059 |
| MITSUBISHI | A003TA8199, A003TA8199ZC, A3TA8199, A3TA8199ZC, ME108147 |
