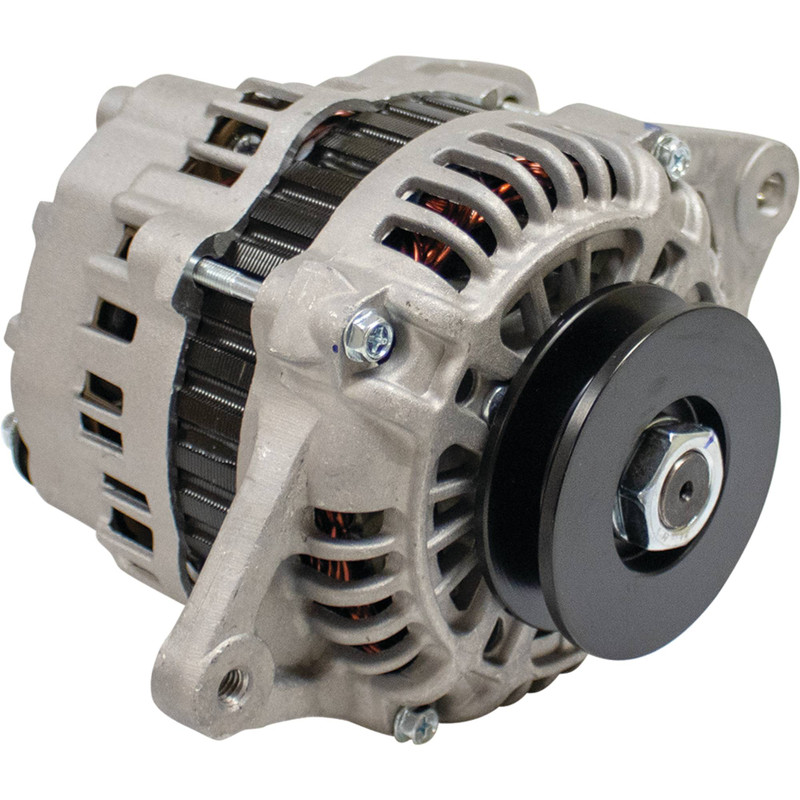

NEW Alternator for CATERPILLAR & KUBOTA Applications; 400-48201, 397-9953, 1G398-64012, A5TA8277A; LESTER 23992
$219.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
80 |
| REGULATOR CLOCK |
2:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.500mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.504″ |
| MOUNTING EAR THICKNESS |
12.800mm |
| MOUNTING EAR 2 THICKNESS |
0.516″ |
| MOUNTING EAR 2 THICKNESS |
13.100mm |
| MOUNTING EAR 3 THICKNESS |
0.630″ |
| MOUNTING EAR 3 THICKNESS |
16mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |

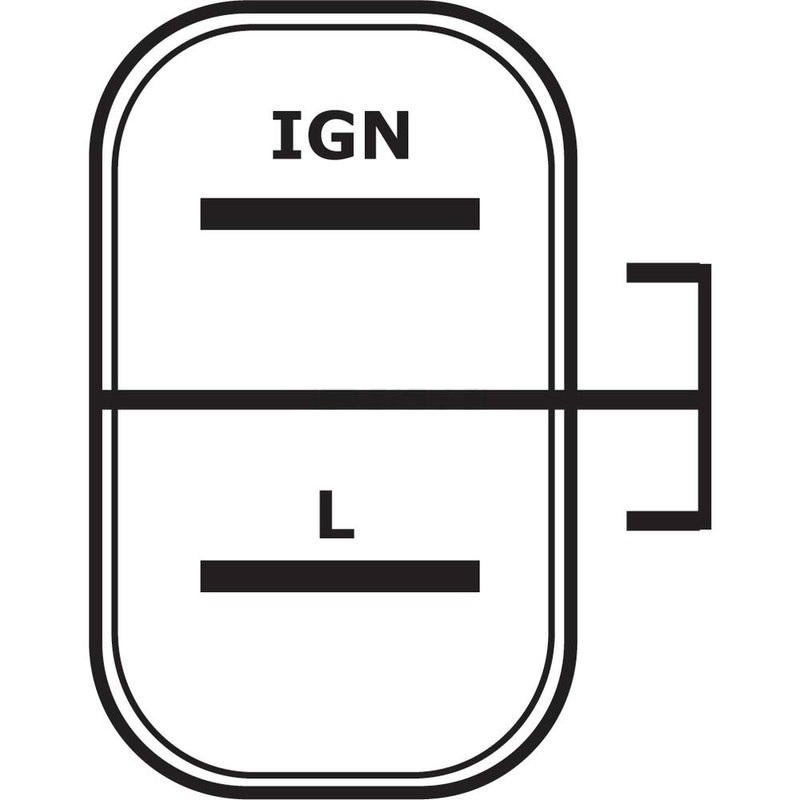

| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
IG |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
L |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
W |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.866″ |
| PULLEY OUTER DIAMETER |
72.800mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-48201 |
| CATERPILLAR |
397-9953 |
| KUBOTA |
1G398-64012 |
| LESTER |
23992 |
| MITSUBISHI |
A005TA8277, A5TA8277, A5TA8277A |
