NEW Alternator for CATERPILLAR Applications; 400-52184, 0R4328, 0R9274, 105-2813, 1052814, 105-2814, 101211-9010, 101211-9020, 9761219-901, 9761219-902; LESTER 12192

$184.99

Email
Categories: , , , , ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 90
REGULATOR CLOCK 12:00
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
FAN LOCATION Internal
REGULATOR LOCATION Internal

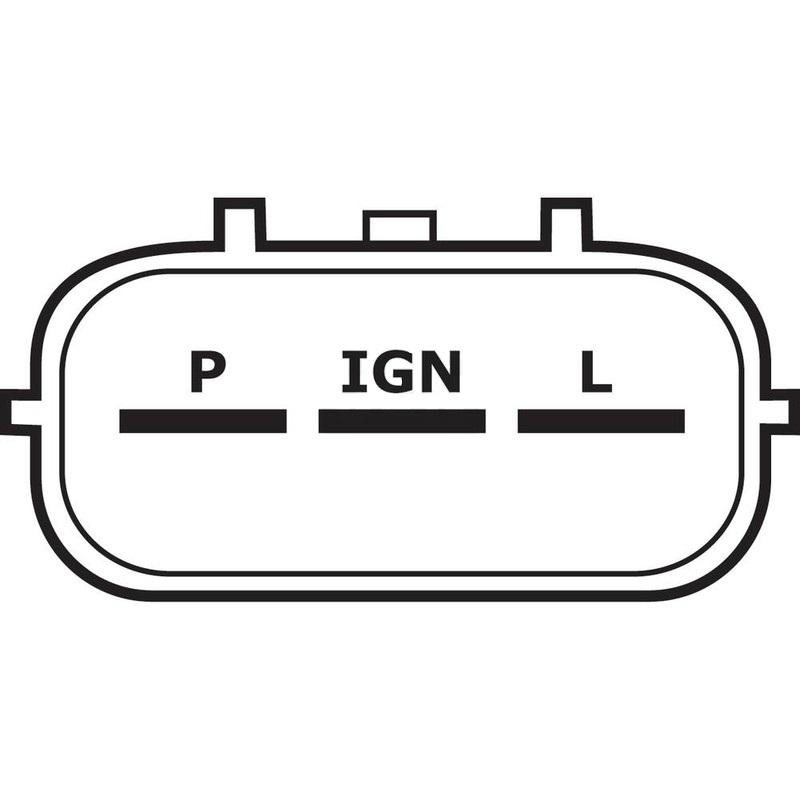

TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
POLARITY Negative
NUMBER OF GROOVES 2
PULLEY TYPE Solid
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD ND101211-9010, ND101211-9020, ND9761219-901, ND9761219-902
ATLANTIC QUALITY PARTS 3500-0514, 3500-0522
CATERPILLAR 0R4328, 0R9274, 105-2813, 1052814, 105-2814
DELCO DRA0256
DENSO 101211-9010, 101211-9020, 9761219-901, 9761219-902
J&N ELECTRICAL PRODUCTS 400-52184
LESTER 12192
MAGNETON 9513160

Applications

Part fit

MAKE MODEL Engine YEAR
Caterpillar 236B Cat. 304 1999, 2000, 2001, 2002, 2003
Caterpillar 236B2
Caterpillar 236B3
Caterpillar 242B3
Caterpillar 246B Cat. 304 1999, 2000, 2001, 2002, 2003
Caterpillar 246B
Caterpillar 246C Cat. 3044
Caterpillar 246C
Caterpillar 248B
Caterpillar 252B2
Caterpillar 252B3
Caterpillar 256C
Caterpillar 257B3
Caterpillar 259B3
Caterpillar 262B
Caterpillar 262C
Caterpillar 262C2
Caterpillar 267B
Caterpillar 268B
Caterpillar 272C
Caterpillar 277B
Caterpillar 277C
Caterpillar 277C2
Caterpillar 279C
Caterpillar 279C2
Caterpillar 287B
Caterpillar 287C
Caterpillar 287C2
Caterpillar 289C
Caterpillar 289C2
Caterpillar 297C
Caterpillar 299C
Caterpillar 3044C
Caterpillar 416B Cat. 305 1992, 1993, 1994, 1995, 1996
Caterpillar 416B Perkins 305 1992, 1993, 1994, 1995, 1996
Caterpillar 416C Cat. 305 1996, 1997, 1998, 1999, 2000
Caterpillar 416C Perkins 305 1996, 1997, 1998, 1999, 2000
Caterpillar 416D Cat. 3054 -B – 2001, 2002, 2003, 2004, 2005
Caterpillar 416D Caterpillar 3054 2001, 2002, 2003, 2004, 2005
Caterpillar 416D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 420D Cat. 305 2001, 2002, 2003, 2004, 2005
Caterpillar 420D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 424D Cat. 3054 -B – 2001, 2002, 2003, 2004, 2005
Caterpillar 424D Caterpillar 3054 2001, 2002, 2003, 2004, 2005
Caterpillar 424D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 426B Cat. 305 1992, 1993, 1994, 1995, 1996
Caterpillar 426B Perkins 305 1992, 1993, 1994, 1995, 1996
Caterpillar 426C 305
Caterpillar 426C Cat. 305
Caterpillar 426C Perkins 305 1996
Caterpillar 428B Cat. 305 1992, 1993, 1994, 1995, 1996
Caterpillar 428B Perkins 305 1992, 1993, 1994, 1995, 1996
Caterpillar 428C Cat. 305 1996, 1997, 1998, 1999, 2000, 2001
Caterpillar 428C Perkins 305 1996, 1997, 1998, 1999, 2000, 2001
Caterpillar 428D Cat. 3054 – 2001, 2002, 2003, 2004, 2005
Caterpillar 428D Caterpillar 3054 2001, 2002, 2003, 2004, 2005
Caterpillar 428D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 428E 3054 2006
Caterpillar 428E Cat. 3054
Caterpillar 430D Cat. 3054 – 2001, 2002, 2003, 2004, 2005
Caterpillar 430D Caterpillar 3054 2001, 2002, 2003, 2004, 2005
Caterpillar 430D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 430E 3054 2006
Caterpillar 430E Cat. 3054
Caterpillar 432D Cat. 3054 – 2001, 2002, 2003, 2004, 2005
Caterpillar 432D Caterpillar 3054 2001, 2002, 2003, 2004, 2005
Caterpillar 432D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 436B Cat. 305 1992, 1993, 1994, 1995, 1996
Caterpillar 436B Perkins 305 1992, 1993, 1994, 1995, 1996
Caterpillar 436C 305
Caterpillar 436C Cat. 305
Caterpillar 436C Perkins 305 1996
Caterpillar 436C
Caterpillar 438B Cat. 305 1992, 1993, 1994, 1995, 1996
Caterpillar 438B Perkins 305 1992, 1993, 1994, 1995, 1996
Caterpillar 438C Cat. 305 1996, 1997, 1998, 1999, 2000, 2001
Caterpillar 438C Perkins 305 1996, 1997, 1998, 1999, 2000, 2001
Caterpillar 438D Cat. 305 2001, 2002, 2003
Caterpillar 438D Perkins 305 2001, 2002, 2003
Caterpillar 442D Cat. 305 2001, 2002, 2003, 2004, 2005
Caterpillar 442D Perkins 305 2001, 2002, 2003, 2004, 2005
Caterpillar 906
Caterpillar 906H
Caterpillar 907H
Caterpillar 908 Cat. 305 1998, 1999, 2000, 2001, 2002, 2003
Caterpillar 908 Perkins 305 1998, 1999, 2000, 2001, 2002, 2003
Caterpillar 908
Caterpillar 908H
Caterpillar 931C 304 1990, 1991, 1992, 1993, 1994
Caterpillar 931C Cat. 304 1990, 1991, 1992, 1993, 1994
Caterpillar 933
Caterpillar 933C
Caterpillar 933CLGP
Caterpillar 933LGP
Caterpillar 935C 304 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Caterpillar 935C Cat. 304 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Caterpillar 939 304 1993, 1994, 1995, 1996, 1997
Caterpillar 939 Cat. 304 1993, 1994, 1995, 1996, 1997
Caterpillar 939
Caterpillar 939C 304 1993, 1994, 1995, 1996, 1997
Caterpillar 939C 304 1997, 1998, 1999, 2000, 2001, 2002, 2003
Caterpillar 939C Cat. 304 1997, 1998, 1999, 2000, 2001, 2002, 2003
Caterpillar 939C
Caterpillar C3.4
Caterpillar D3C 320 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar D3C Cat. 320 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Caterpillar D3CIII
Caterpillar D3CIIILGP
Caterpillar D3CIIIXL
Caterpillar D3G
Caterpillar D3GLGP
Caterpillar D4C 320 1990, 1991, 1992, 1993
Caterpillar D4C Cat. 320 1990, 1991, 1992, 1993
Caterpillar D4CIII
Caterpillar D4CIIILGP
Caterpillar D4CIIIXL
Caterpillar D4G
Caterpillar D4GLGP
Caterpillar D5C 304 1991, 1992, 1993
Caterpillar D5C 304 1991, 1992, 1993, 1994, 1995, 1996
Caterpillar D5C Cat. 304 1991, 1992, 1993
Caterpillar D5C Cat. 304 1993, 1994, 1995, 1996
Caterpillar D5CIII
Caterpillar D5CIIILGP
Caterpillar D5CIIIXL
Caterpillar D5CLGP
Caterpillar D5G
Caterpillar D5GLGP
