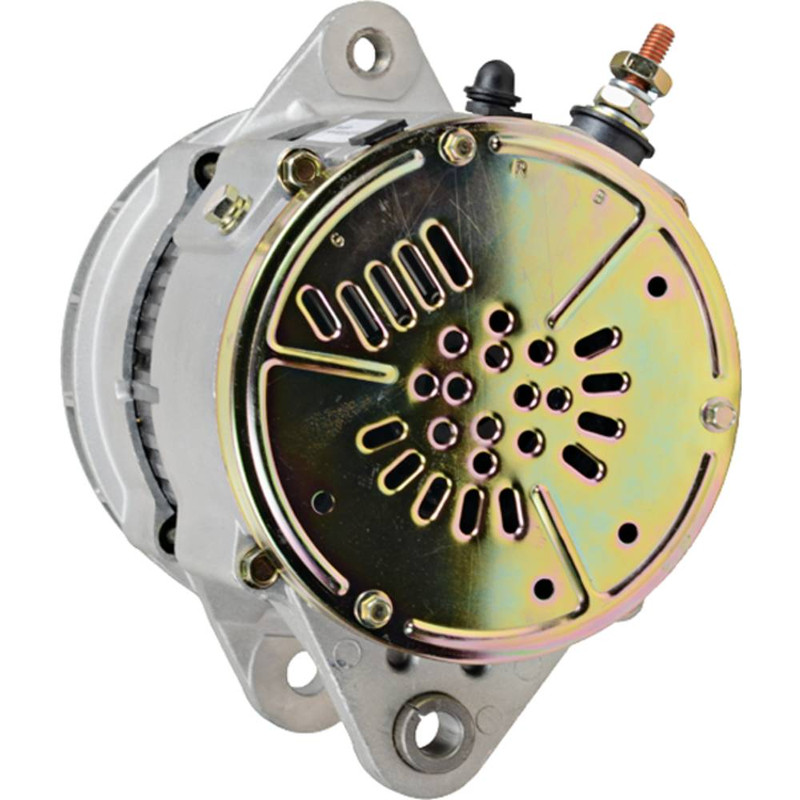

NEW Alternator for CATERPILLAR D250E, D300E, D350E & D400E Medium & Heavy-Duty Trucks; 400-52155, 0R7701, 10R9791, 169-3345, 101211-813, 101211-8130, 101211-830, 101211-8300, 211-8002; LESTER 12464
$364.99 $412.44
Specifications
| UNIT TYPE | Alternator |
| VOLT | 24 |
| AMPS | 50 |
| REGULATOR CLOCK | 10:00 |
| J180 HINGE LENGTH | 197.87 |
| MOUNT HOLE ID 1 | 1/2-13 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.551″ |
| MOUNTING EAR THICKNESS | 14mm |
| MOUNTING EAR 2 THICKNESS | 0.551″ |
| MOUNTING EAR 2 THICKNESS | 14mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 5/16-18 |
| TERMINAL ID 3 | R |
| TERMINAL 3 SIZE | PIN |
| TERMINAL ID 4 | G |
| TERMINAL 4 SIZE | 1/4-20 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875″ |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | 5/8-18 |
| WARRANTY | 1 Year |
| Brushless |
