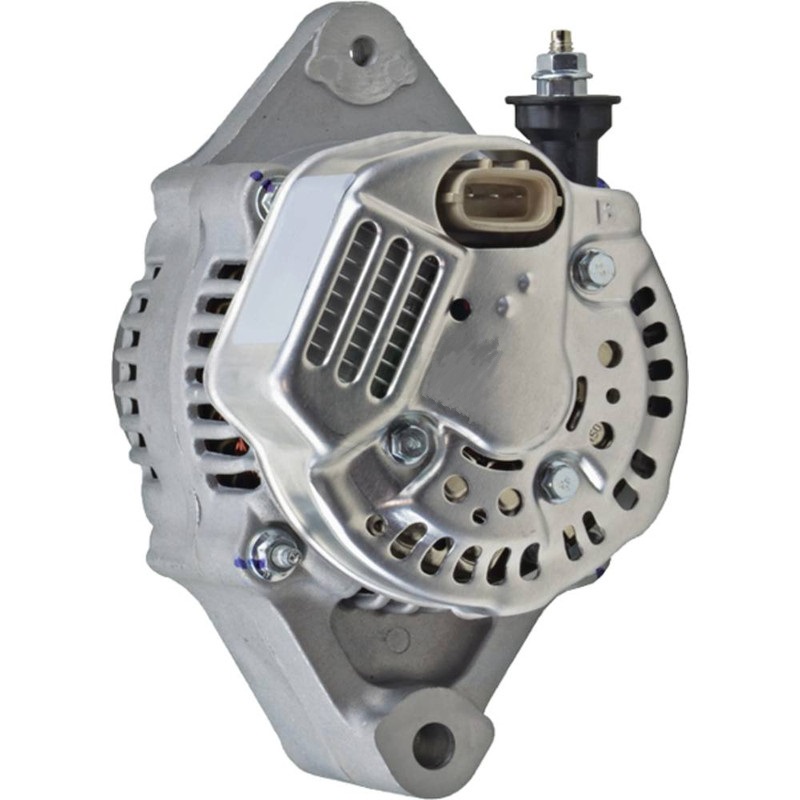

NEW Alternator for CATERPILLAR Mini Excavators; 400-52267, 101211-2780, 0R9698, 1449952, 144-9952, 154-2658; LESTER 12854
$179.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
55 |
| REGULATOR CLOCK |
12:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.610″ |
| MOUNTING EAR THICKNESS |
15.500mm |
| MOUNTING EAR 2 THICKNESS |
2.268″ |
| MOUNTING EAR 2 THICKNESS |
57.600mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
P |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IG |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
L |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.713″ |
| PULLEY OUTER DIAMETER |
68.900mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| AC DELCO TOOLS |
AND0544, ND101211-2780 |
| CATERPILLAR |
0R9698, 1449952, 144-9952, 154-2658 |
| DENSO |
101211-2780 |
| J&N ELECTRICAL PRODUCTS |
400-52267 |
| LESTER |
12854 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Caterpillar |
232 |
|
|
| Caterpillar |
301.5 |
Cat. 3003 (17.4HP Dsl) |
1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 |
| Caterpillar |
301.6 |
Cat. 3003 (17.4HP Dsl) |
1999-On |
| Caterpillar |
301.8 |
Cat. 3003 (17.4HP Dsl) |
1999-On |
| Caterpillar |
302.5 |
Cat. 3013 (22.9HP Dsl) |
1999-On |
| Caterpillar |
303.5 |
Cat. 3013 (26.1HP Dsl) |
1999-On |
| Caterpillar |
304.5 |
Cat. 302 |
1999-On |
| Caterpillar |
902 |
|
|
