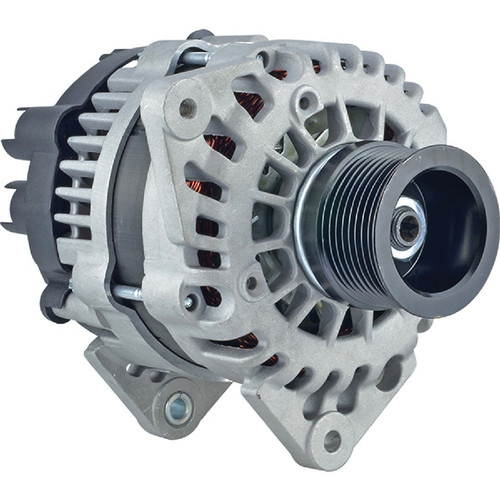

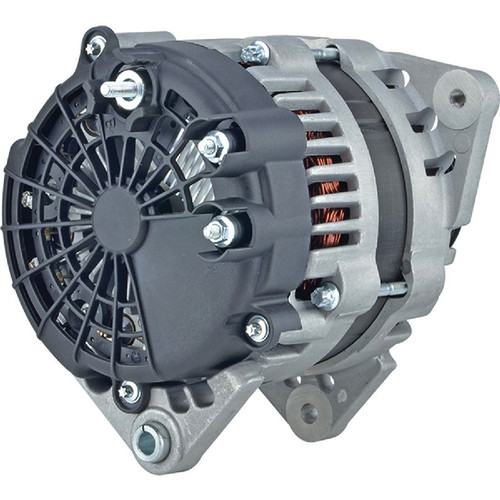

NEW Alternator for CATERPILLAR Various Applications; 400-12505, 20R3890, 399-1485, 8600573

$209.99

Email
Categories: , , , , ,

Specifications

UNIT TYPE Alternator
AMILY Delco 13SI
VOLT 24
AMPS 75
REGULATOR CLOCK 3:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.600mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.543″
MOUNTING EAR THICKNESS 13.800mm
MOUNTING EAR 2 THICKNESS 0.543″
MOUNTING EAR 2 THICKNESS 13.800mm
MOUNTING EAR 3 THICKNESS 0.787″
MOUNTING EAR 3 THICKNESS 20mm
FAN LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 W
TERMINAL 4 SIZE M5x0.8
POLARITY Negative
NUMBER OF GROOVES 9
GROOVE OD 2.370″
GROOVE OD 60.200mm
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.535″
PULLEY OUTER DIAMETER 64.400mm

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD 400-12505
CATERPILLAR 20R3890, 399-1485
DELCO 8600573

Applications

  • Caterpillar 3054E
  • Caterpillar 3056E
  • Caterpillar 420EIT
  • Caterpillar 527CA
  • Caterpillar 527GR
  • Caterpillar 914G Perkins 305
  • Caterpillar 914G2
  • Caterpillar AP1000E
  • Caterpillar AP1055E
  • Caterpillar AP500E Caterpillar C4.
  • Caterpillar AP555E Caterpillar C4.
  • Caterpillar AP600D Caterpillar C6.
  • Caterpillar AP655D
  • Caterpillar BG500E
  • Caterpillar BG555E
  • Caterpillar BG600D
  • Caterpillar BG655D
  • Caterpillar C6.6
  • Caterpillar CP44
  • Caterpillar CP54B
  • Caterpillar CP56
  • Caterpillar CP64
  • Caterpillar CP74
  • Caterpillar CP76
  • Caterpillar CS44
  • Caterpillar CS54B
  • Caterpillar CS56
  • Caterpillar CS64
  • Caterpillar CS64B
  • Caterpillar CS74
  • Caterpillar CS76
  • Caterpillar IT14G Perkins 305
  • Caterpillar IT14G2
  • Caterpillar M313C Perkins 305
  • Caterpillar M313D C4.
  • Caterpillar M315C 3054
  • Caterpillar M315D C4.
  • Caterpillar M315D2
  • Caterpillar M316C 3056
  • Caterpillar M316D C6.
  • Caterpillar M317D2
  • Caterpillar M318C Caterpillar 305
  • Caterpillar M318CMH
  • Caterpillar M318D C6.
  • Caterpillar M318DMH
  • Caterpillar M322C Caterpillar 3056
  • Caterpillar M322CMH
  • Caterpillar M322D C6.
  • Caterpillar M322DMH
