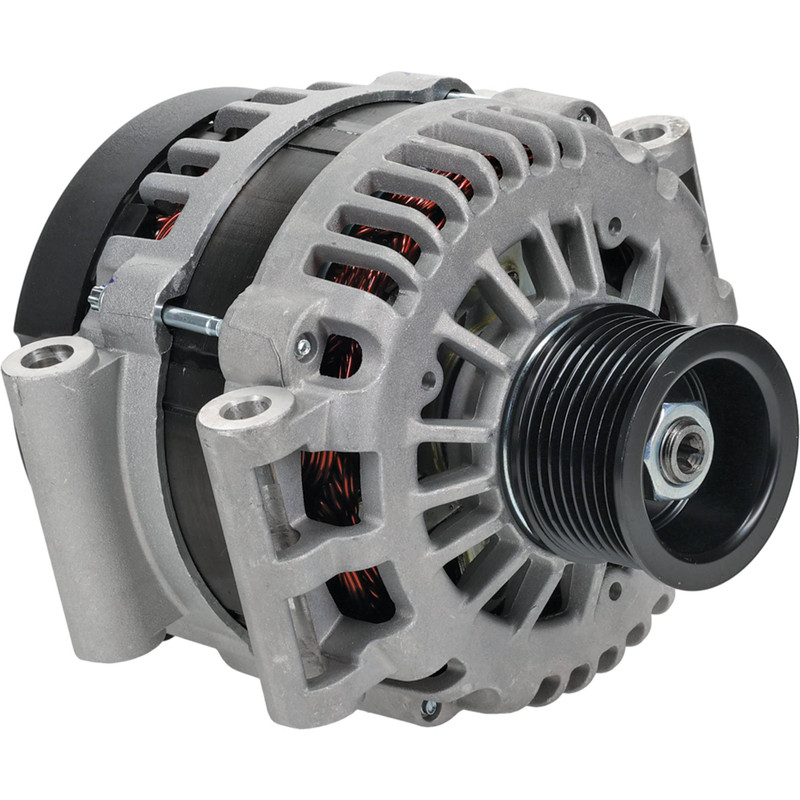

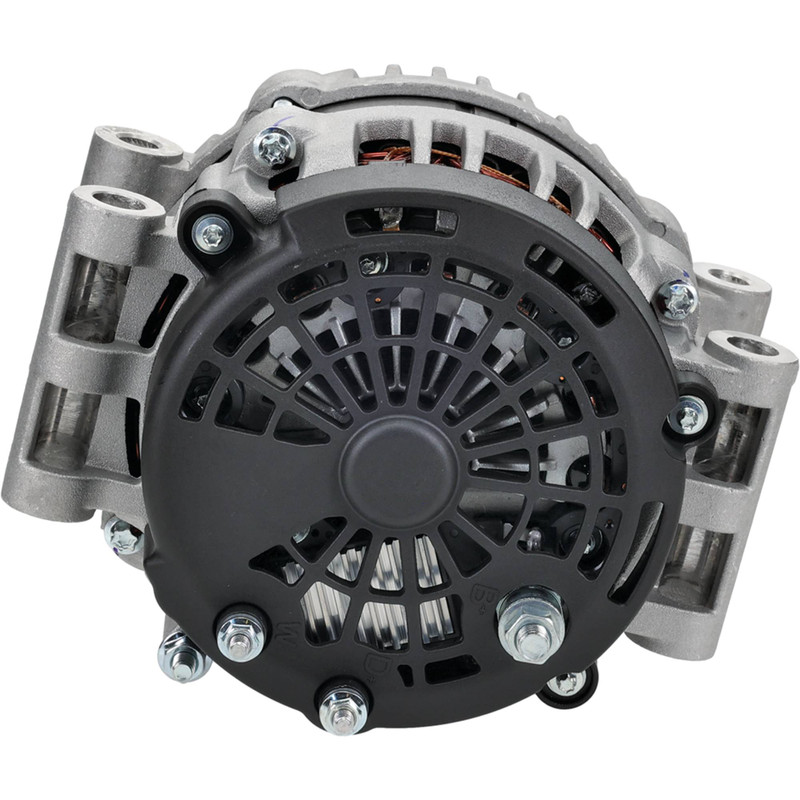

NEW Alternator for CATERPILLAR Various Applications; 400-12519, 20R-3601, 321-8927; LESTER 21210
$274.99
Specifications
| UNIT TYPE |
Alternator |
| FAMILY |
Delco 18SI |
| VOLT |
12 |
| AMPS |
150 |
| REGULATOR CLOCK |
10:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
10.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE ID 2 |
12.500mm |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.500mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNT HOLE ID 4 |
12.500mm |
| MOUNT HOLE 4 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
3.150″ |
| MOUNTING EAR THICKNESS |
80mm |
| MOUNTING EAR 2 THICKNESS |
3.150″ |
| MOUNTING EAR 2 THICKNESS |
80mm |
| MOUNTING EAR 3 THICKNESS |
3.150″ |
| MOUNTING EAR 3 THICKNESS |
80mm |
| MOUNTING EAR 4 THICKNESS |
3.150″ |
| MOUNTING EAR 4 THICKNESS |
80mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8-1.25 |
| TERMINAL ID 3 |
D+ |
| TERMINAL 3 SIZE |
M5-0.8 |
| TERMINAL ID 4 |
W |
| TERMINAL 4 SIZE |
M5–0.8 |
| TERMINAL ID 5 |
B- |
| TERMINAL 5 SIZE |
M6-0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
8 |
| GROOVE OD |
2.346″ |
| GROOVE OD |
59.600mm |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.520″ |
| PULLEY OUTER DIAMETER |
64mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| CATERPILLAR |
20R-3601, 321-8927 |
| DELCO |
8600377 |
| LESTER |
21210 |
Applications
| Make |
Model |
Engine |
Years |
| Caterpillar |
416F2ST |
|
– |
| Caterpillar |
416FST |
|
– |
| Caterpillar |
420F2IT |
|
– |
| Caterpillar |
420F2ST |
|
– |
| Caterpillar |
420FIT |
|
– |
| Caterpillar |
420FST |
|
– |
| Caterpillar |
428F |
|
– |
| Caterpillar |
428F2 |
|
– |
| Caterpillar |
430F2IT |
|
– |
| Caterpillar |
430F2ST |
|
– |
| Caterpillar |
430FIT |
|
– |
| Caterpillar |
430FST |
|
– |
| Caterpillar |
432F |
|
– |
| Caterpillar |
432F2 |
|
– |
| Caterpillar |
434F |
|
– |
| Caterpillar |
434F2 |
|
– |
| Caterpillar |
444F |
|
– |
| Caterpillar |
444F2 |
|
– |
| Caterpillar |
450F |
|
– |
| Caterpillar |
918M |
|
– |
| Caterpillar |
C4.4 |
|
– |
| Caterpillar |
C7 |
|
– |
| Caterpillar |
C7.1 |
|
– |
| Caterpillar |
CB64B |
|
– |
| Caterpillar |
CB66B |
|
– |
| Caterpillar |
CB68B |
|
– |
| Caterpillar |
CB68BLRC |
|
– |
| Caterpillar |
CP44BLRC |
|
– |
| Caterpillar |
CS44BLRC |
|
– |
| Caterpillar |
CS44BLRC |
Cat C4.4 |
– |
| Caterpillar |
TH3510D |
|
– |
| Caterpillar |
TH408D |
|
– |
| Caterpillar |
TL1055D |
|
– |
| Caterpillar |
TL1055D |
Cat C4.4 |
– |
| Caterpillar |
TL1255D |
|
– |
| Caterpillar |
TL1255D |
Cat C4.4 |
– |
