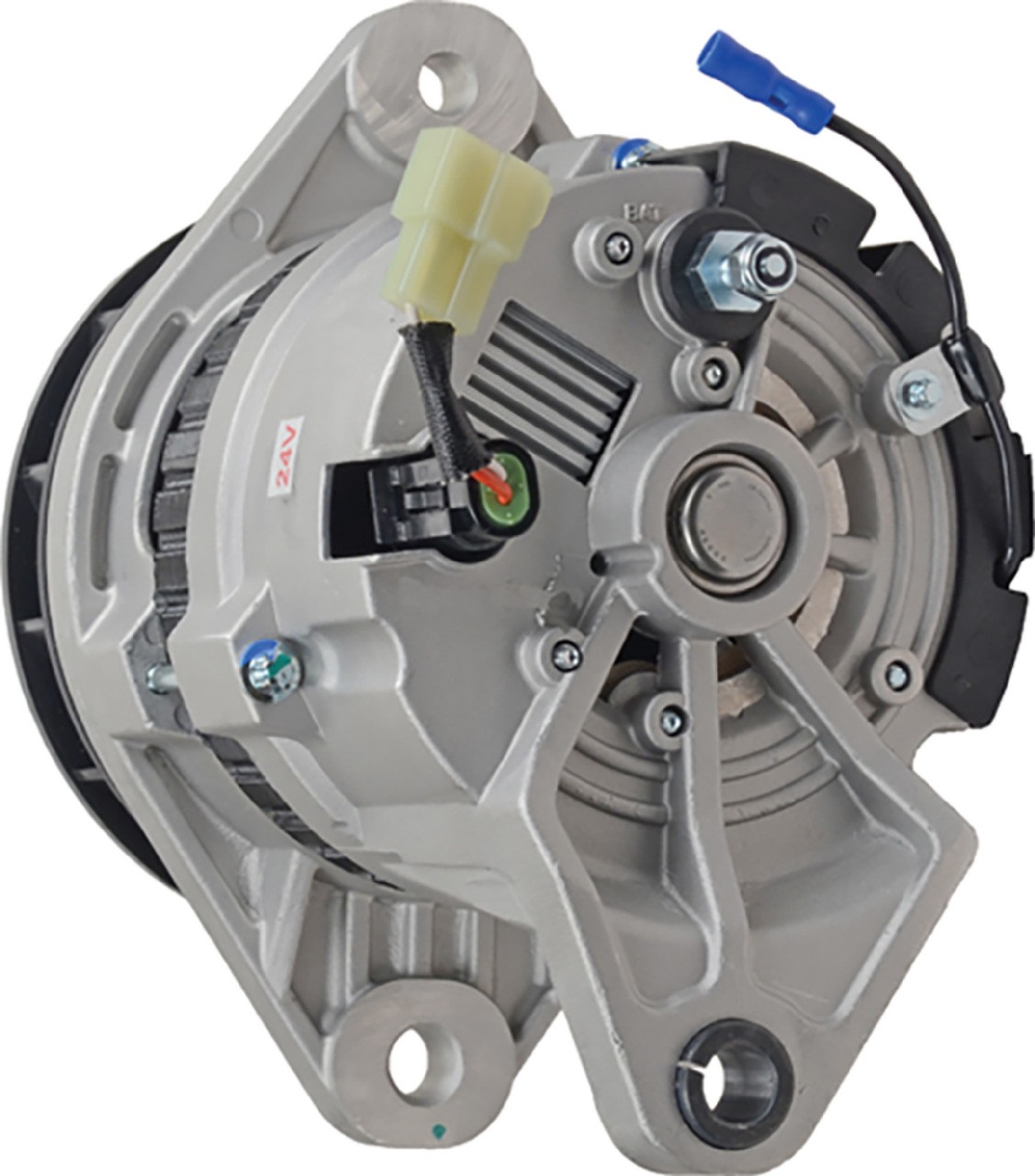

NEW Alternator for KHD Various Models Medium & Heavy-Duty Truck; 400-24264, 0124655131, 0124655156, 01183602, 118-3602
September 29, 2023NEW Pump Motor for FENNER-STONE Pump & CURTIS Snow Plow Applications; 430-22038, 1788AC, 1788-AC, 2578-AC, 2778-AC; LESTER 10739
October 4, 2023
NEW Alternator for CLARK EQUIPMENT; 400-58010, A134153, 30090100007, 390035; LESTER 20930
$469.99
Specifications
| UNIT/PART TYPE |
Alternator |
| VOLT |
24 |
| AMPS |
45 |
| REGULATOR CLOCK |
9:00 |
| MOUNT HOLE ID 1 |
10.400mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
12.600mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.539″ |
| MOUNTING EAR THICKNESS |
13.700mm |
| MOUNTING EAR 2 THICKNESS |
0.539″ |
| MOUNTING EAR 2 THICKNESS |
13.700mm |
| MOUNTING EAR 3 THICKNESS |
0.709″ |
| MOUNTING EAR 3 THICKNESS |
18mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |

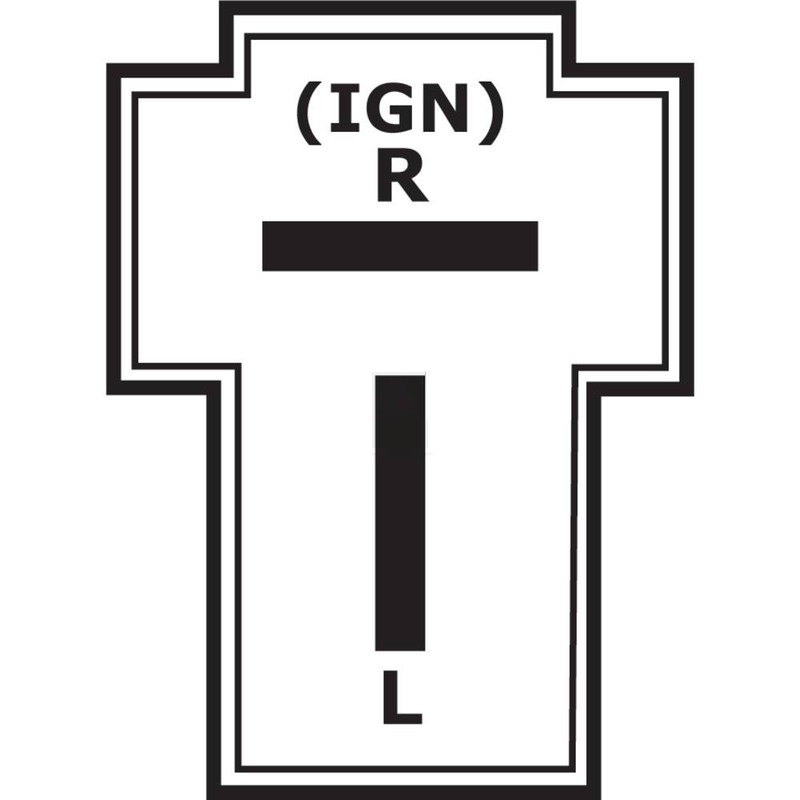

| TERMINAL ID 3 |
R (IG) |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
L |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
P |
| TERMINAL 5 SIZE |
Female Bullet |
| NUMBER OF GROOVES |
2 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
3.350″ |
| PULLEY OUTER DIAMETER |
85.100mm |
| WARRANTY |
1 Year |
|
Includes a Plug Conversion Harness |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-58010 |
| CLARK EQUIPMENT |
A134153 |
| DELCO |
390035 |
| DOOSAN |
30090100007 |
| LESTER |
20930 |
