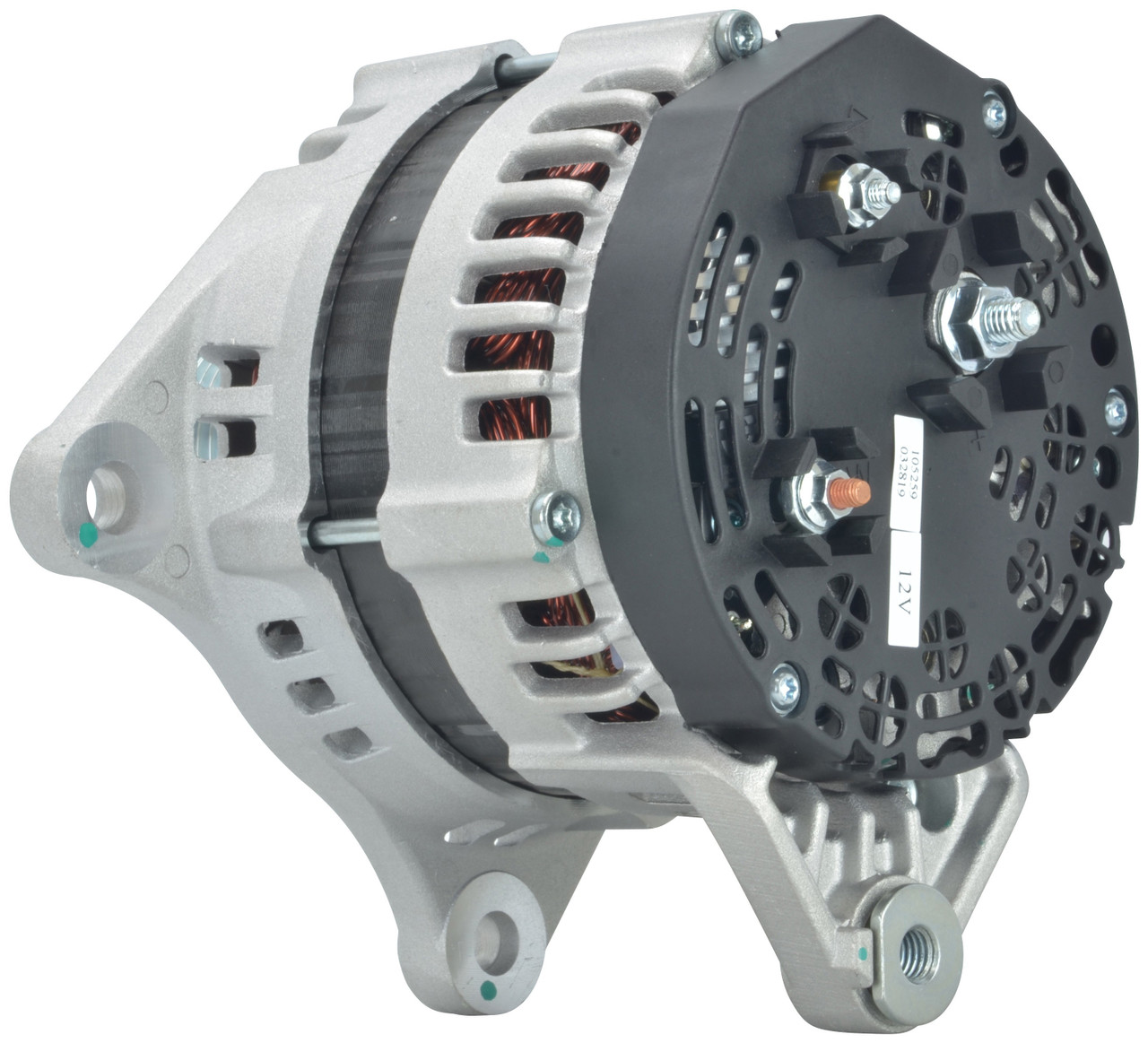

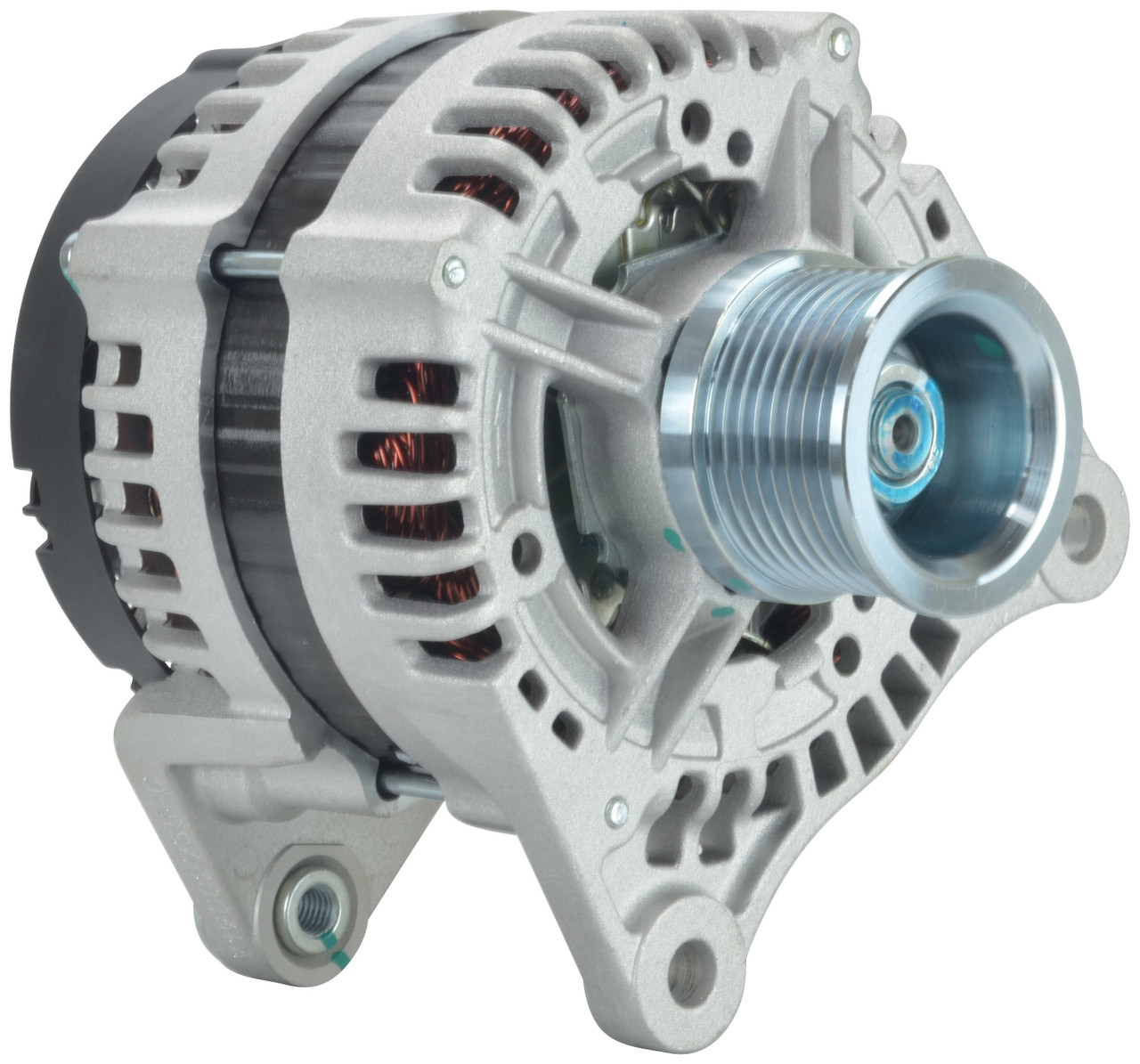

NEW Alternator for CUMMINS Engines; 400-58023, 5316342
$369.99
Cummins 12V 135A Alt
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 135 |
| REGULATOR CLOCK | 10:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 11.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10x1.50 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.531″ |
| MOUNTING EAR THICKNESS | 13.500mm |
| MOUNTING EAR 2 THICKNESS | 0.531″ |
| MOUNTING EAR 2 THICKNESS | 13.500mm |
| MOUNTING EAR 3 THICKNESS | 0.846″ |
| MOUNTING EAR 3 THICKNESS | 21.500mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | W |
| TERMINAL 4 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| GROOVE OD | 2.165″ |
| GROOVE OD | 55mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.362″ |
| PULLEY OUTER DIAMETER | 60mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-58023 |
| CUMMINS | 5316342 |
