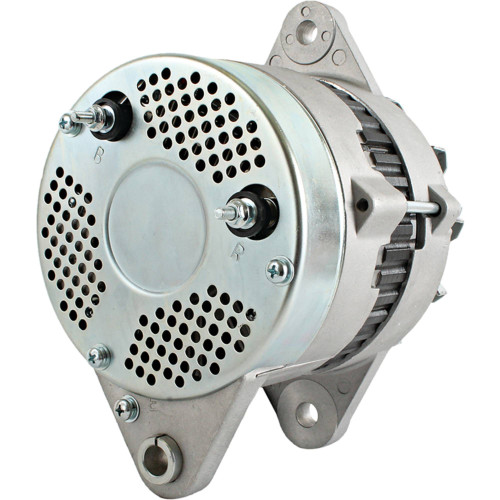

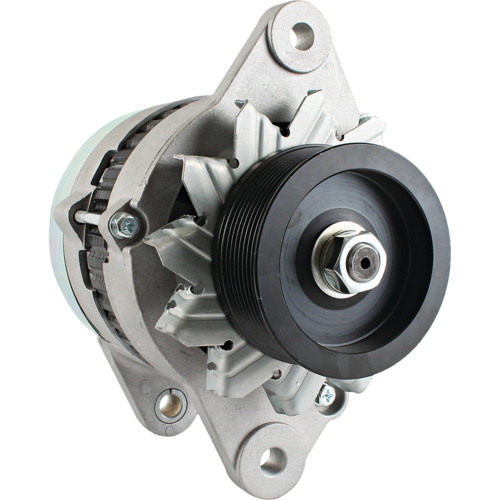

NEW Alternator for DAEWOO Excavators & Wheel Loaders 1995-ON; 400-50032, 2502-9007B, 2502-9009, 01-35-7000, 0-35000-4190, 0-35000-4500, 0-35000-4501; LESTER 12769
$224.99
Add’l Info: Voltage Set Point 28.6V
Specifications
| UNIT TYPE | Alternator |
| VOLT | 24 |
| AMPS | 60 |
| MOUNT HOLE ID 1 | M12x1.75 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 0.630″ |
| MOUNTING EAR 2 THICKNESS | 16mm |
| MOUNTING EAR 3 THICKNESS | 0.827″ |
| MOUNTING EAR 3 THICKNESS | 21mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.740″ |
| PULLEY OUTER DIAMETER | 95mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-50017, ANK0012 |
| DAEWOO | 2502-9007B, 2502-9009 |
| J&N ELECTRICAL PRODUCTS | 400-50017 |
| KOMATSU | 600-825-6310, 600-861-6110, 600-861-6111 |
| LESTER | 12769 |
| NIKKO | 01-35-7000, 0-35000-4190, 0-35000-4500, 0-35000-4501 |
