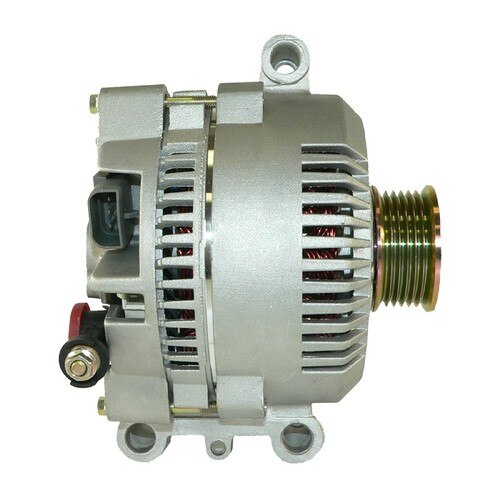

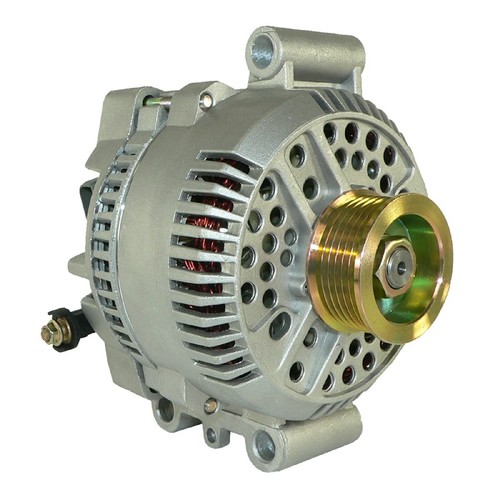

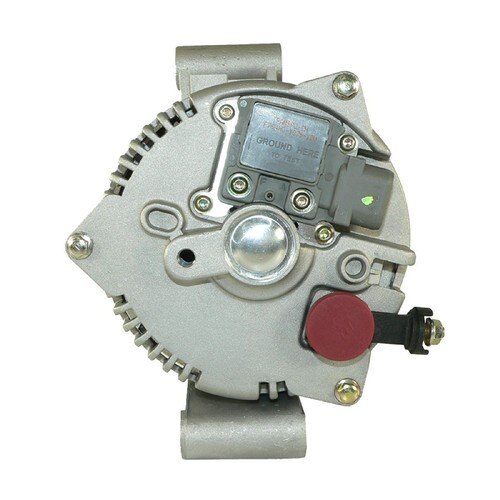

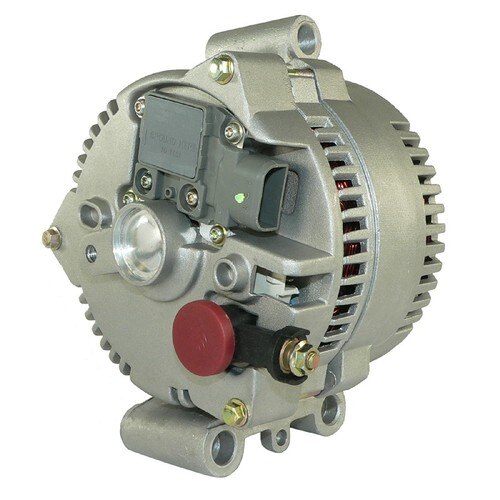

NEW Alternator for FORD, MAZDA & MERCURY Applications; 400-14101, 5L2T10300AA, 5L2T-10300-AA, 5L2T-AA, 5L2Z10346AA, 5L2Z-10346-AA, 6L2T10300BA, 1F72-18-300A, 1F72-18-300B; LESTER 8519

$184.99

SEARCH: 493516 (EARLIER REGULATOR)

Email

Specifications

UNIT TYPE Alternator
FAMILY Ford 3G
VOLT 12
AMPS 130
REGULATOR CLOCK 1:00
MOUNT HOLE ID 1 10mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 10mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 2.193″
MOUNTING EAR THICKNESS 55.700mm
MOUNTING EAR 2 THICKNESS 2.193″
MOUNTING EAR 2 THICKNESS 55.700mm
MOUNTING EAR 3 THICKNESS 2.193″
MOUNTING EAR 3 THICKNESS 55.700mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 A
TERMINAL 3 SIZE Spade
TERMINAL ID 4 S
TERMINAL 4 SIZE Spade
TERMINAL ID 5 I
TERMINAL 5 SIZE Spade
TERMINAL ID 6 Stator
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 6
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.386″
PULLEY OUTER DIAMETER 60.600mm
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD AFD0165
BOSCH AL7637X
FORD 5L2T10300AA, 5L2T-10300-AA, 5L2T-AA, 5L2Z10346AA, 5L2Z-10346-AA, 6L2T10300BA, 6L2T-10300-BA, 6L2T-BA, 6L2Z10346BA, 6L2Z-10346-BA, GL646, GL663
J&N ELECTRICAL PRODUCTS 400-14082, 400-14101
LESTER 8519
MAZDA 1F72-18-300A, 1F72-18-300B

Part fit

Year Make Model Engine
Year Make Model Engine
2004 - 2008 FORD EXPLORER 4.0L(245) V6
2004 - 2008 MERCURY MOUNTAINEER 4.0L(245) V6
2007 - 2009 FORD RANGER 4.0L(245) V6
2007 - 2009 MAZDA B4000 4.0L
