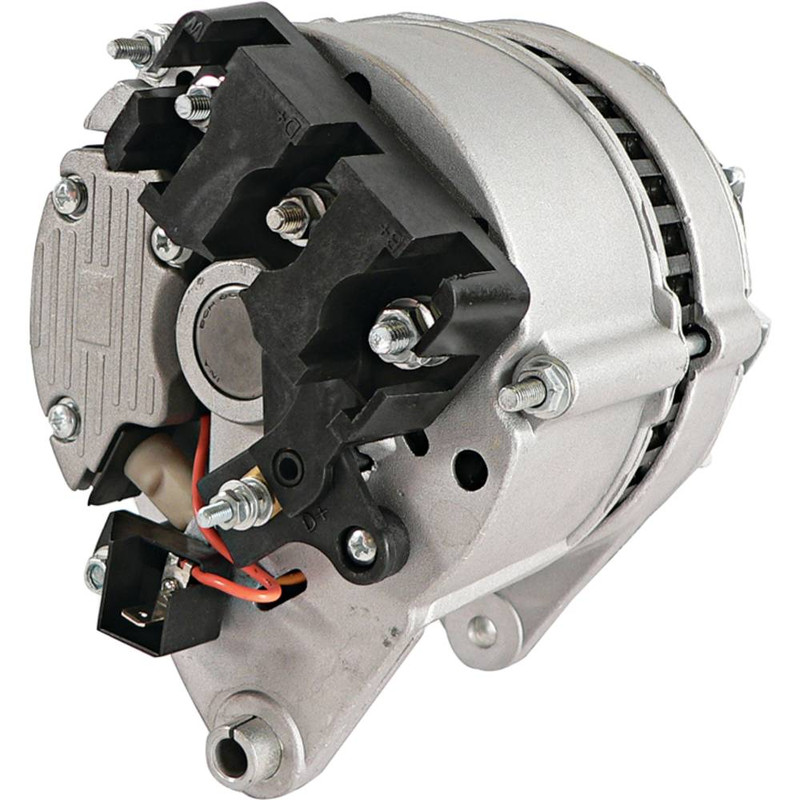

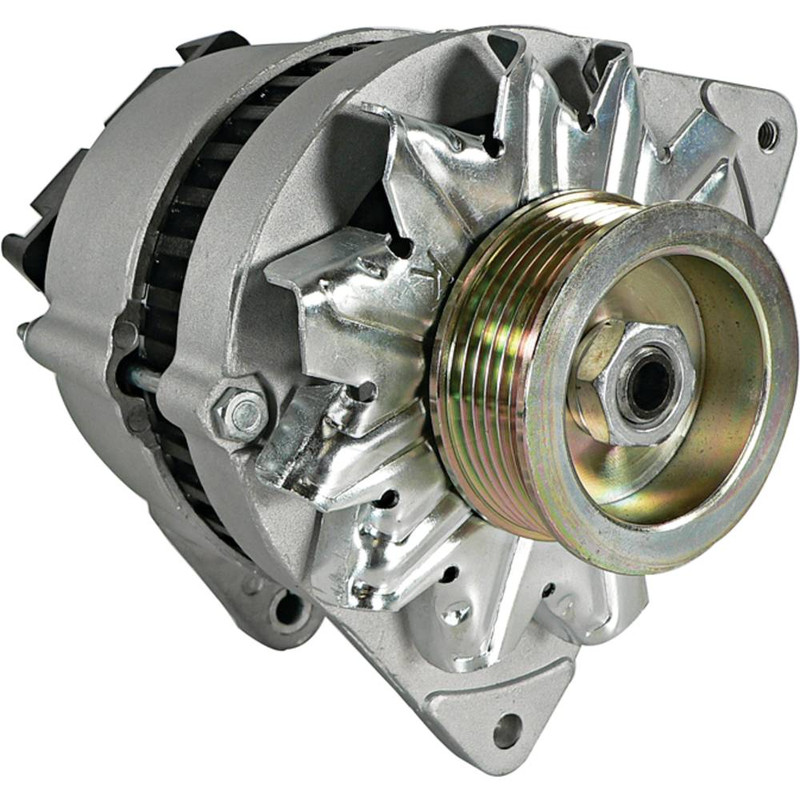

NEW Alternator for FORD / NEW HOLLAND 5640, 7740, 7840, 8240, 8340 Tractors; 400-30032, 83999794, F0NN-10B376-AA, [LUCAS ELECTRIC 24295, 24295B, 25414, 25415, 54022397, 54022397A]; LESTER 12092

$169.99



Email
Categories: , ,

Specifications

UNIT TYPE Alternator
FAMILY Lucas A127
VOLT 12
AMPS 55
REGULATOR CLOCK 9:00
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE 3 TYPE Unthreaded
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
POLARITY Negative
NUMBER OF GROOVES 6
GROOVE OD 2.650″
GROOVE OD 67.300mm
PULLEY OUTER DIAMETER 2.787″
PULLEY OUTER DIAMETER 70.800mm
WARRANTY 1 Year
ADD’L INFO Temperature Compensating Regulator



WRITE YOUR OWN REVIEW





We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD 400-30017, ALU0012, IA0481, MG526
FORD F0NN-10B376-AA
FORD/NEW HOLLAND 83999794
J&N ELECTRICAL PRODUCTS 400-30011, 400-30017
LESTER 12092
LETRIKA/ISKRA IA 0481
LUCAS ELECTRIC 24295, 24295B, 25414, 25415, 54022397, 54022397A
MAHLE IA0481, MG526
MARELLI 63324295, MAN154

Applications

Part fit

MAKE MODEL ENGINE YEAR
FORD 5640 268ci – 4cyl Dsl 1992 – 1998
FORD 6640 304ci – 4cyl Dsl 1991 – 1998
FORD 7740 4-304 Diesel 1992, 1993
FORD 7840 6-401 Diesel 1992, 1993
FORD 8160 6-456 Diesel 1996 – 1998
FORD 8240 6-456 Diesel 1992, 1993
FORD 8260 6-456 Diesel 1996 – 1998
FORD 8340 6-456 Diesel 1992, 1993
FORD 8360 6-456 Diesel 1996 – 1998
FORD 8560 6-456 Diesel 1996 – 1998
NEW HOLLAND 5640 4-268 Ford Diesel 1991 – 1993
NEW HOLLAND 6530 4-268 Ford Diesel 1992 – 1997
NEW HOLLAND 6640 4-304 Ford Diesel 1991 – 1998
NEW HOLLAND 7740 4-304 Ford Diesel 1991 – 1993
NEW HOLLAND 7840 6-401 Ford Diesel 1991 – 1993
NEW HOLLAND 8240 6-456 Ford Diesel 1992, 1993
NEW HOLLAND 8340 6-456 Ford Diesel 1992, 1993
