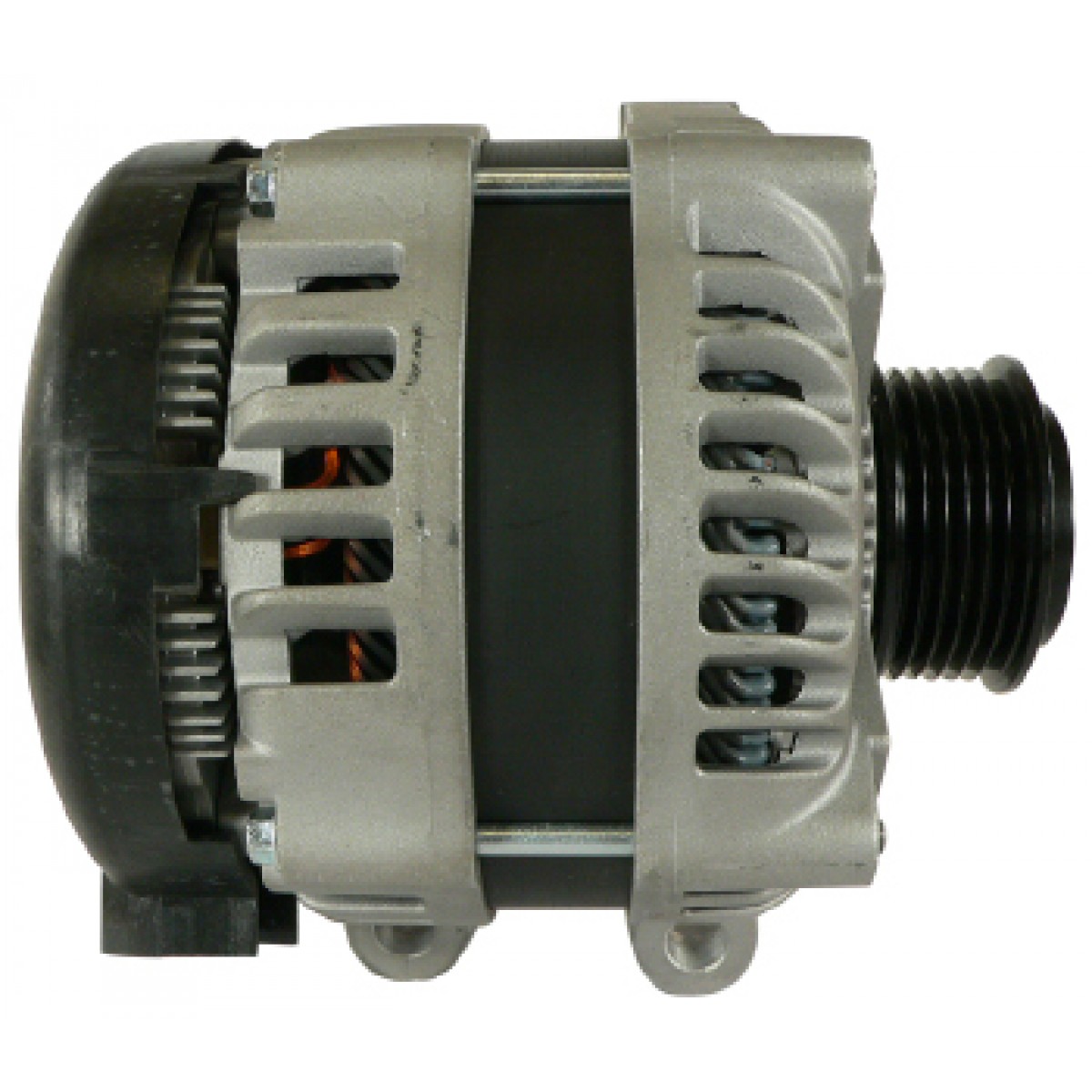

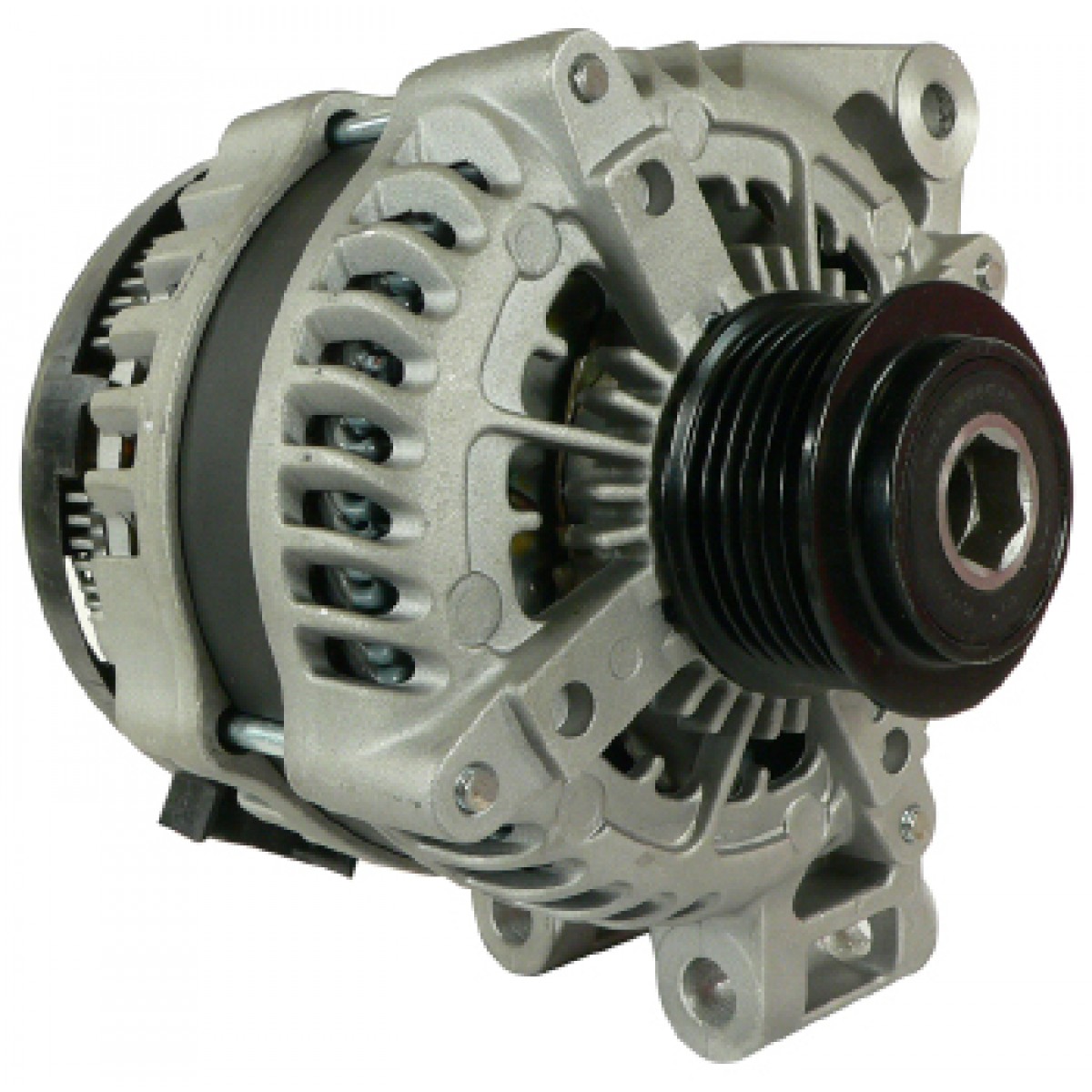

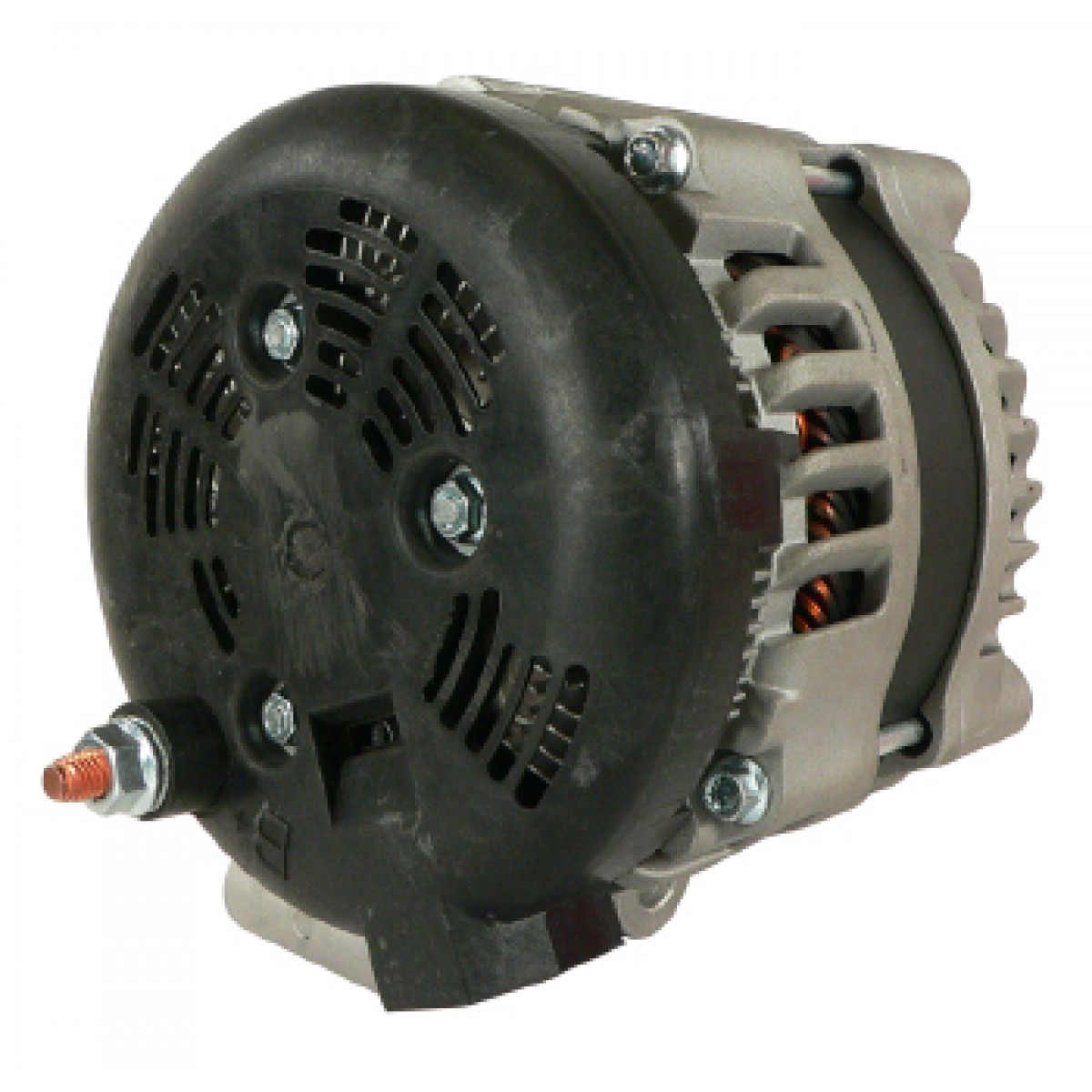

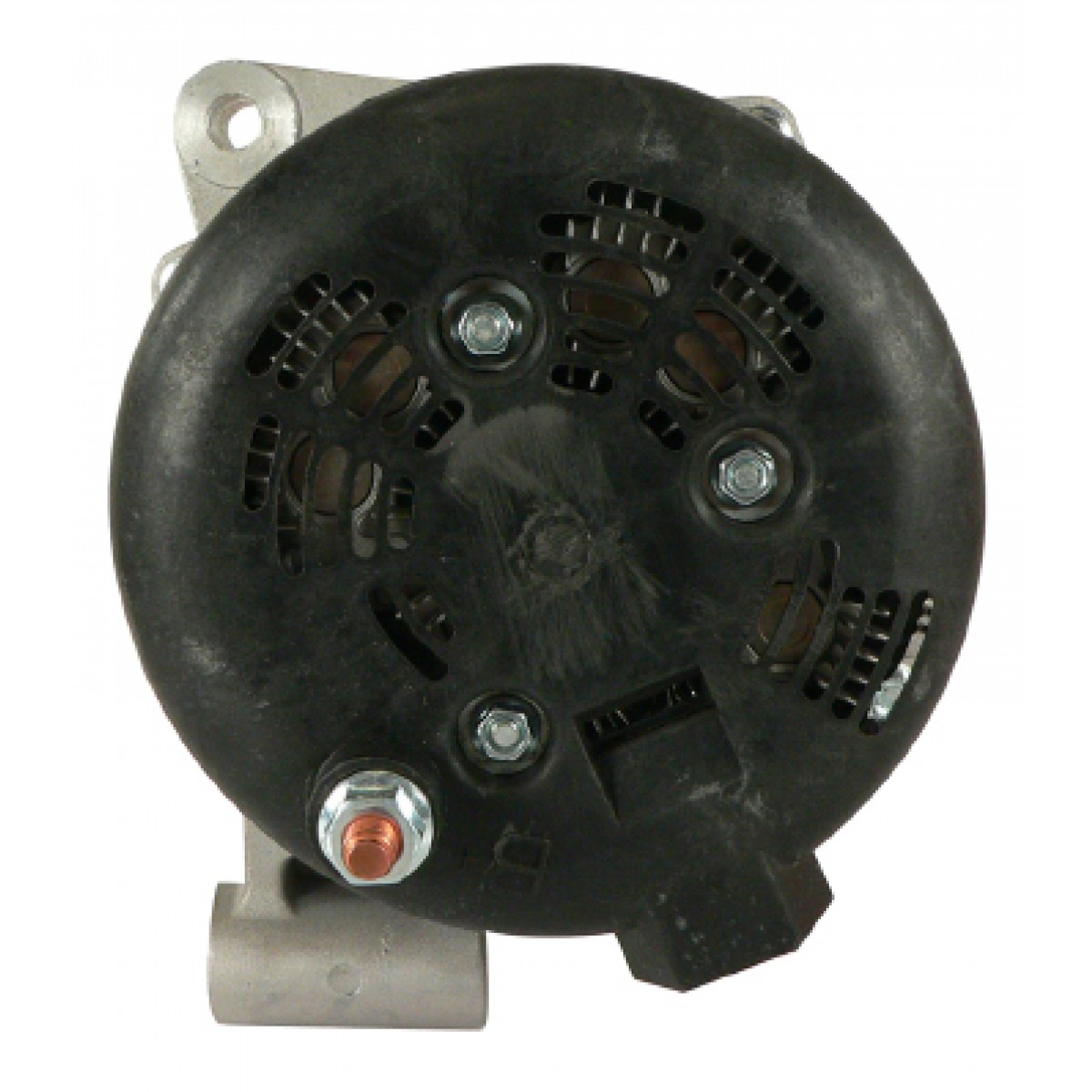

NEW Alternator for GM Automotive Applications; AND0481, 104210-6160, 104210-6310, 104210-6311, 104210-6312, 104210-6313, 104210-6314, 210-0616; LESTER 11252
$344.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 170 |
| REGULATOR CLOCK | 5:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.984″ |
| MOUNTING EAR THICKNESS | 25mm |
| MOUNTING EAR 2 THICKNESS | 1.969″ |
| MOUNTING EAR 2 THICKNESS | 50mm |
| MOUNTING EAR 3 THICKNESS | 1.969″ |
| MOUNTING EAR 3 THICKNESS | 50mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | F |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.480″ |
| PULLEY OUTER DIAMETER | 63mm |
| WARRANTY | 1 Year |
