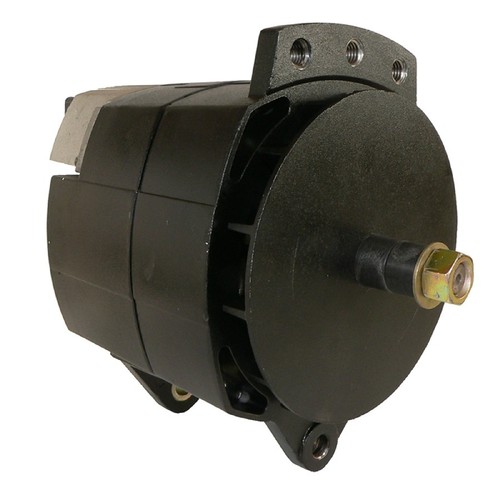

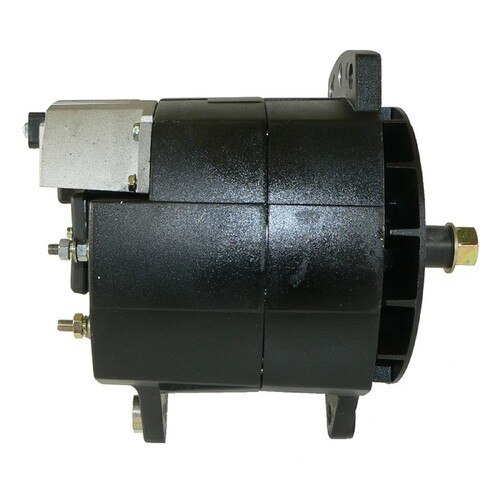

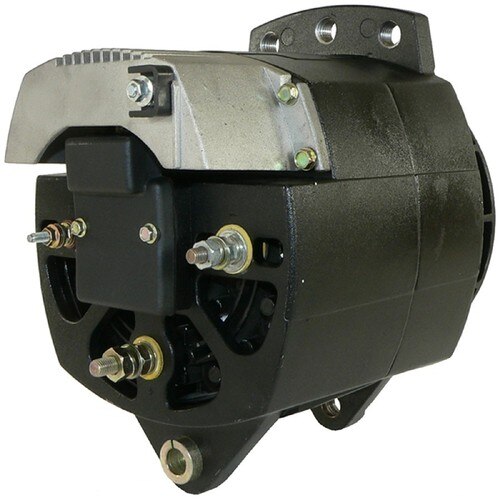

NEW Alternator for HIGH AMP MARINE Applications; 400-16037, 849748-9, 3001117, 3088320, 3629351, 10-184, 10-258, 8SC3005V; LESTER 8416, 8422
$599.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Leece Neville 8SC/SCJ |
| VOLT | 24 |
| AMPS | 175 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 1/2-13 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.900mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.543″ |
| MOUNTING EAR THICKNESS | 13.800mm |
| MOUNTING EAR 2 THICKNESS | 0.543″ |
| MOUNTING EAR 2 THICKNESS | 13.800mm |
| MOUNTING EAR 3 THICKNESS | 0.799″ |
| MOUNTING EAR 3 THICKNESS | 20.300mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 5-16 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | 10-24 |
| TERMINAL ID 4 | IG |
| TERMINAL 4 SIZE | M5x0.8 |
| TERMINAL ID 5 | B- |
| TERMINAL 5 SIZE | 1/4-28 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875″ |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | 5/8-18 |
| (3) 1/2-13 Threaded Positions in Upper Mounting Ear, Includes Fan
ADDL INFO: 105-229 REGULATOR ADDL INFO: J-180 MOUNT |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| AMO0006 | ARROWHEAD |
| PL8SC3157V | ARROWHEAD (OEM) |
| 400-16037R | J & N |
| 400-16037 | J & N |
| 400-16037R | J & N (OLD) |
| 8422 | LESTER |
| 02110258 | ANDRE NIERMANN |
| 20083 | API MARINE |
| 60170 | ARCO MARINE |
| BAO3168 | BOWERS |
| 859477PB | BUTEC |
| 110176 | CARGO |
| 28-10040-12 | CARRIER TRANSICOLD |
| 3001117 | CATERPILLAR |
| 3088320 | CUMMINS |
| 3629351 | CUMMINS |
| A-9215 | DIXIE |
| 109-18203 | DIXIE NEW |
| PB6876 | DRESSER |
| 4-6955 | EMP PARTS |
| 88U67D1 | HARNISCHFEGER |
| UA921IR | HC PARTS |
| 47-2919 | MINNPAR |
| 8SC3009Z | MOTOROLA |
| 8SC3009ZA | MOTOROLA |
| 8SC3157V | MOTOROLA |
| 10-258 | MOTOROLA |
| P818N | MPA SMALL MOTOR |
| 110-258A | PRESTOLITE |
| 110-258 | PRESTOLITE |
| 110-258 | RCP |
| 42803 | RCP |
| 5000898799 | RENAULT |
| 26874 | SABRE ENGINES |
| 849748-9 | VOLVO PENTA |
| 8422N | WAI |
| 1-2694-00PL | WAI |
| 1-2694-00PL | WAI (OLD) |
| 90-05-9155 | WILSON |
| 90-05-9155 | WILSON HD |
| ALT32021 | WOOD AUTO |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1990 - 2001 | VOLVO PENTA | TAMD162 A B C | 6cyl 984ci 16.1L Diesel |
| 85-On | MOTOROLA | Various Models | Various Engines |
