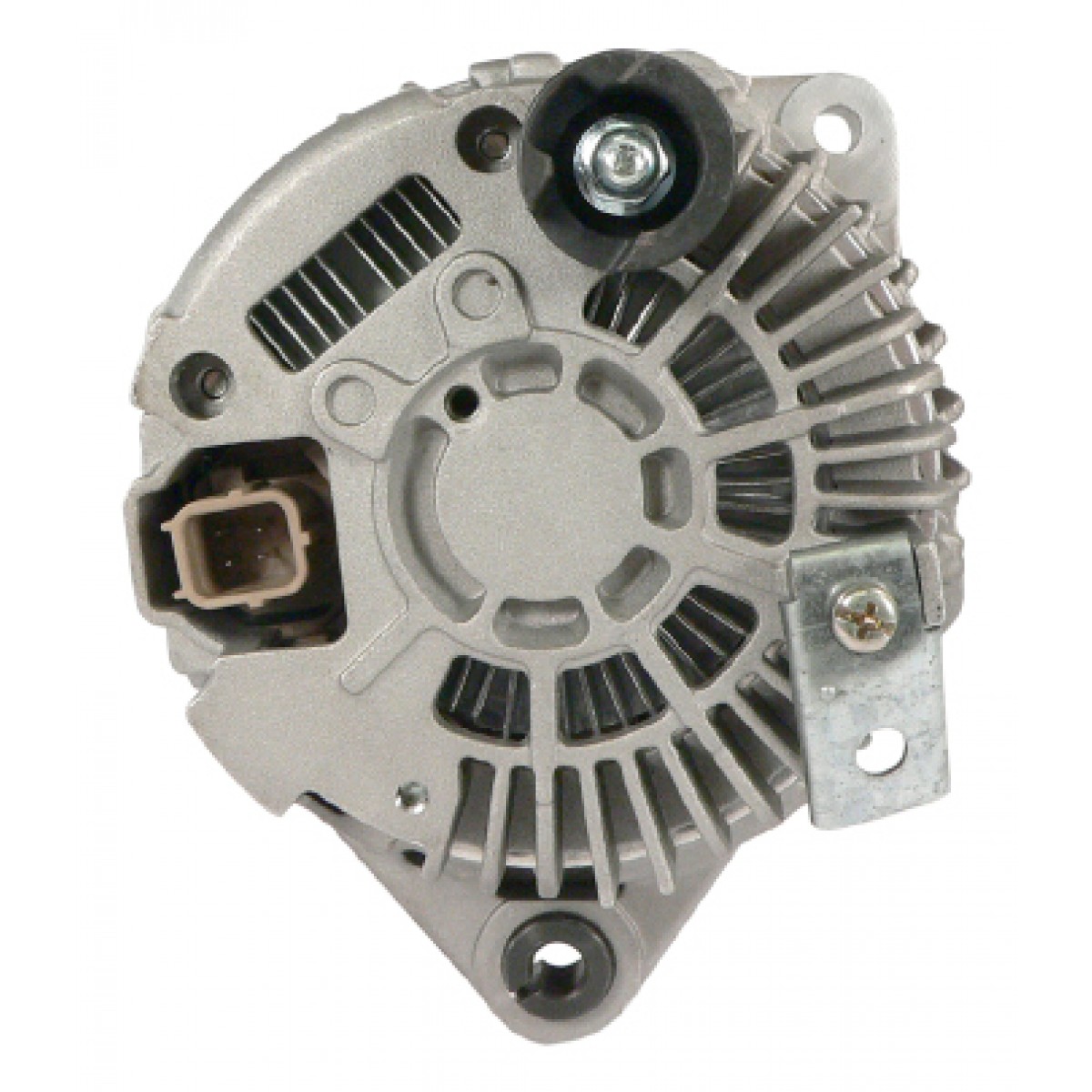

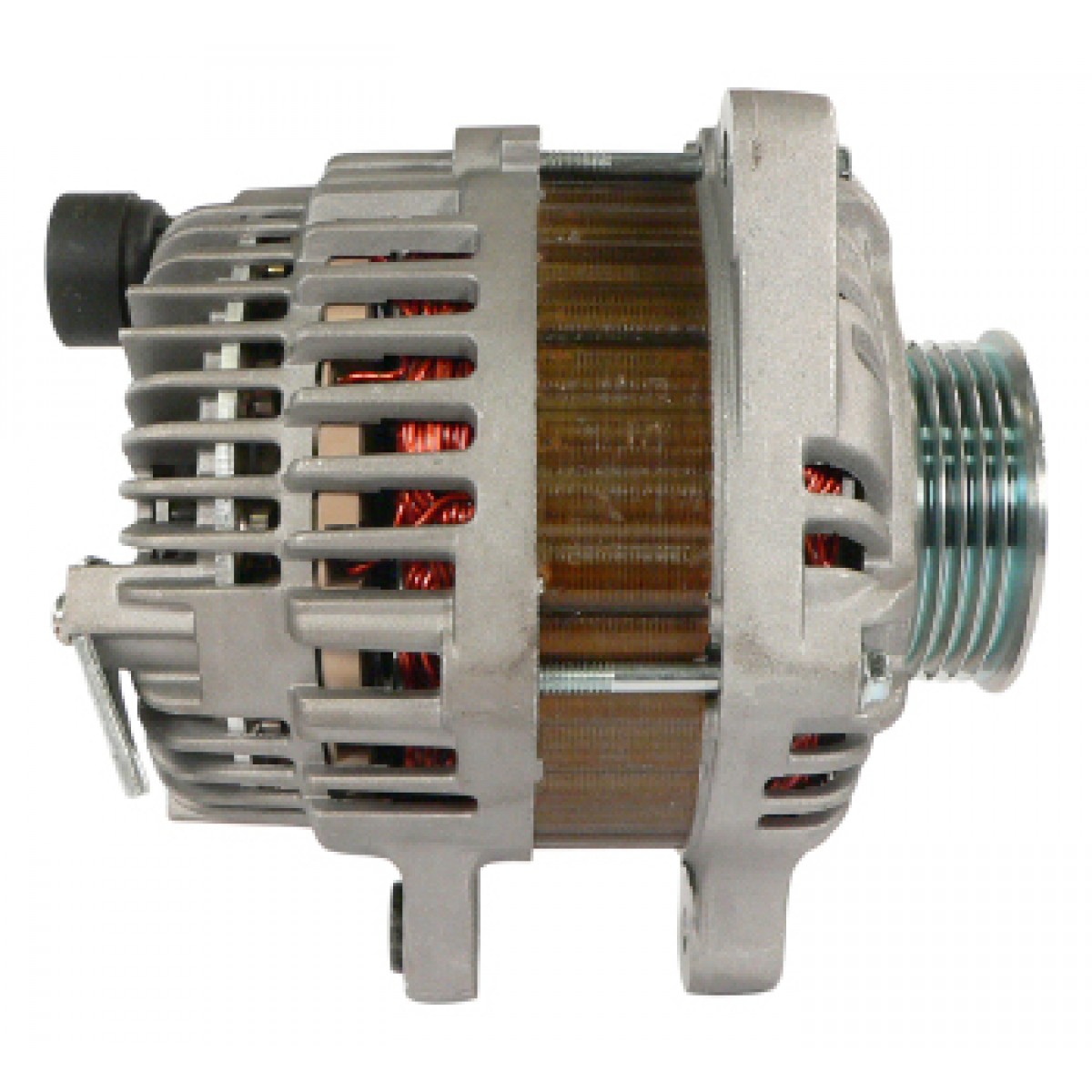

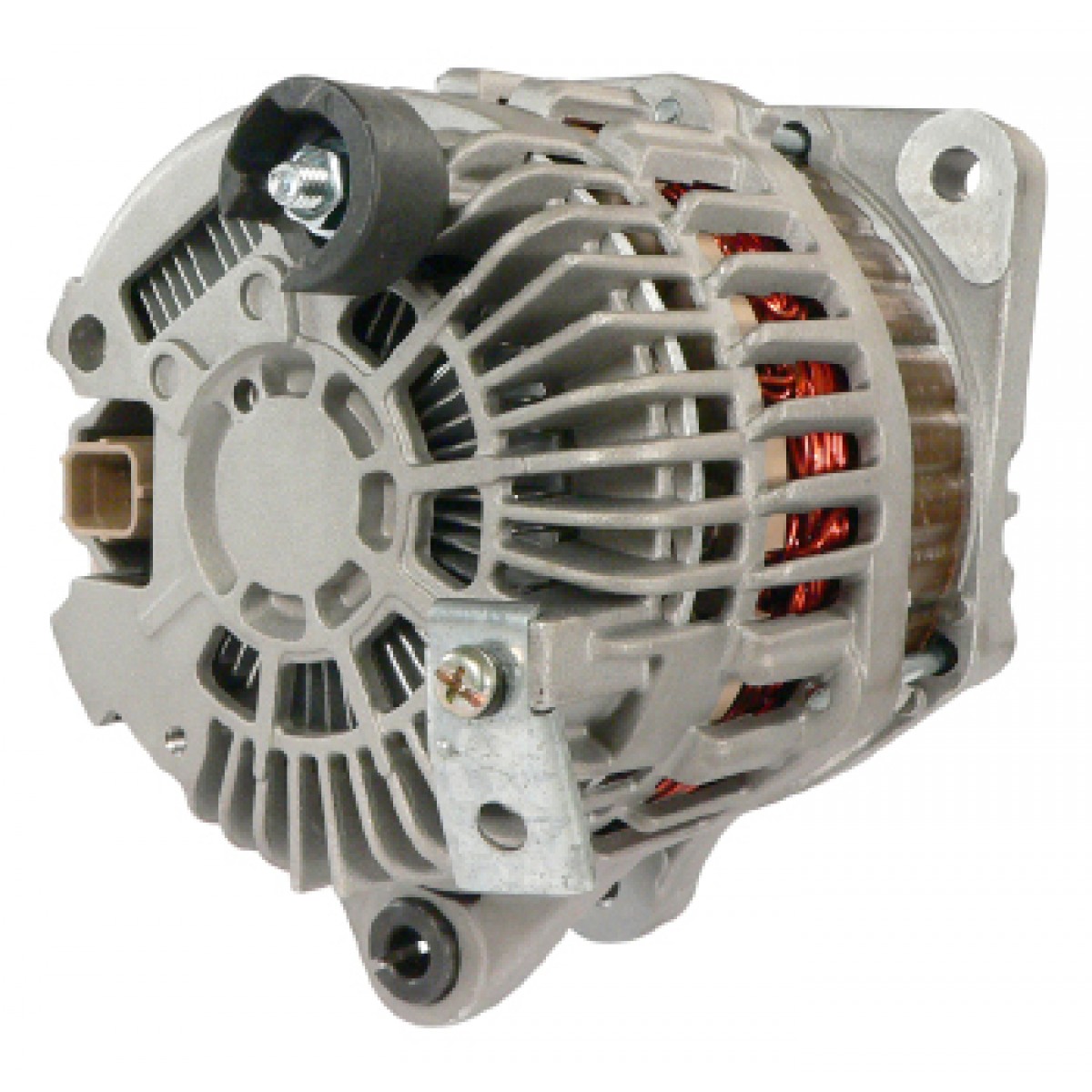

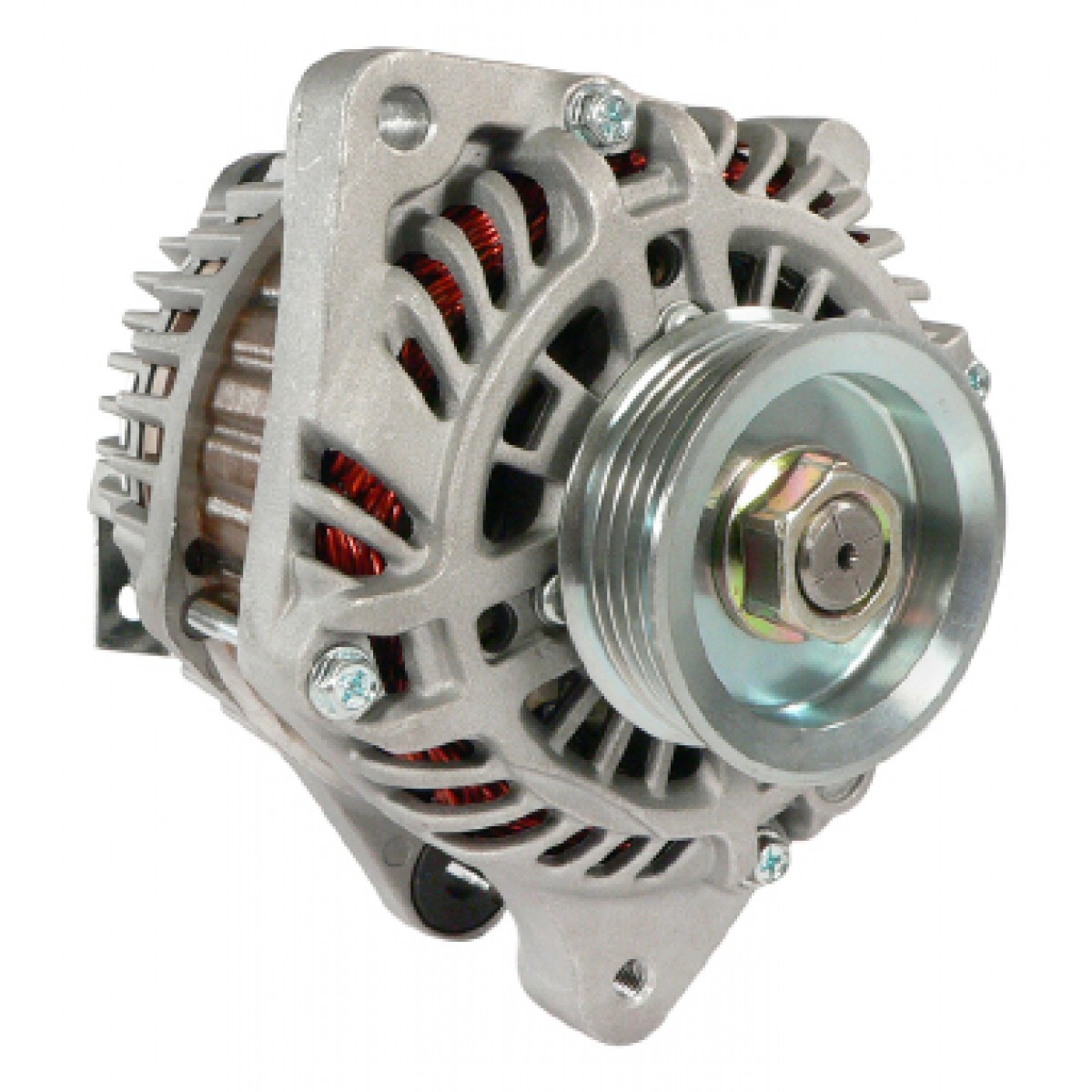

NEW Alternator for HONDA FIT 1.5L L4 Application; 400-48170, 31100-RB0-004, 1100-RB0-0041, 31100-RB0A-0243, A5TJ0091; LESTER 11410

$239.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
QUALITY TYPE Economy
VOLT 12
AMPS 95
REGULATOR CLOCK 9:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 8.600mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE ID 2 M8x1.25
MOUNT HOLE 2 TYPE Threaded
MOUNT HOLE ID 3 8.500mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.618″
MOUNTING EAR THICKNESS 15.700mm
MOUNTING EAR 2 THICKNESS 0.677″
MOUNTING EAR 2 THICKNESS 17.200mm
MOUNTING EAR 3 THICKNESS 0.630″
MOUNTING EAR 3 THICKNESS 16mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 IG
TERMINAL 3 SIZE Spade
TERMINAL ID 4 C
TERMINAL 4 SIZE Spade
TERMINAL ID 5 L
TERMINAL 5 SIZE Spade
TERMINAL ID 6 FR
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 5
GROOVE OD 2.441″
GROOVE OD 62mm
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.598″
PULLEY OUTER DIAMETER 66mm
WARRANTY 1 Year

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD A5TJ0091, AMT0233, VMT0233
HONDA 31100-RB0-004, 31100RB0-004, 31100-RB0-0041, 31100RB0-0041, 31100RB0A0243, 31100-RB0A-0243, AHGA77
J&N ELECTRICAL PRODUCTS 400-48170, 400-48249
LESTER 11410
LUCAS ELECTRIC LRA03853
MITSUBISHI A5TJ0091

Part fit

Year Make Model Engine
Year Make Model Engine
2009 - 2013 HONDA FIT 1.5L
