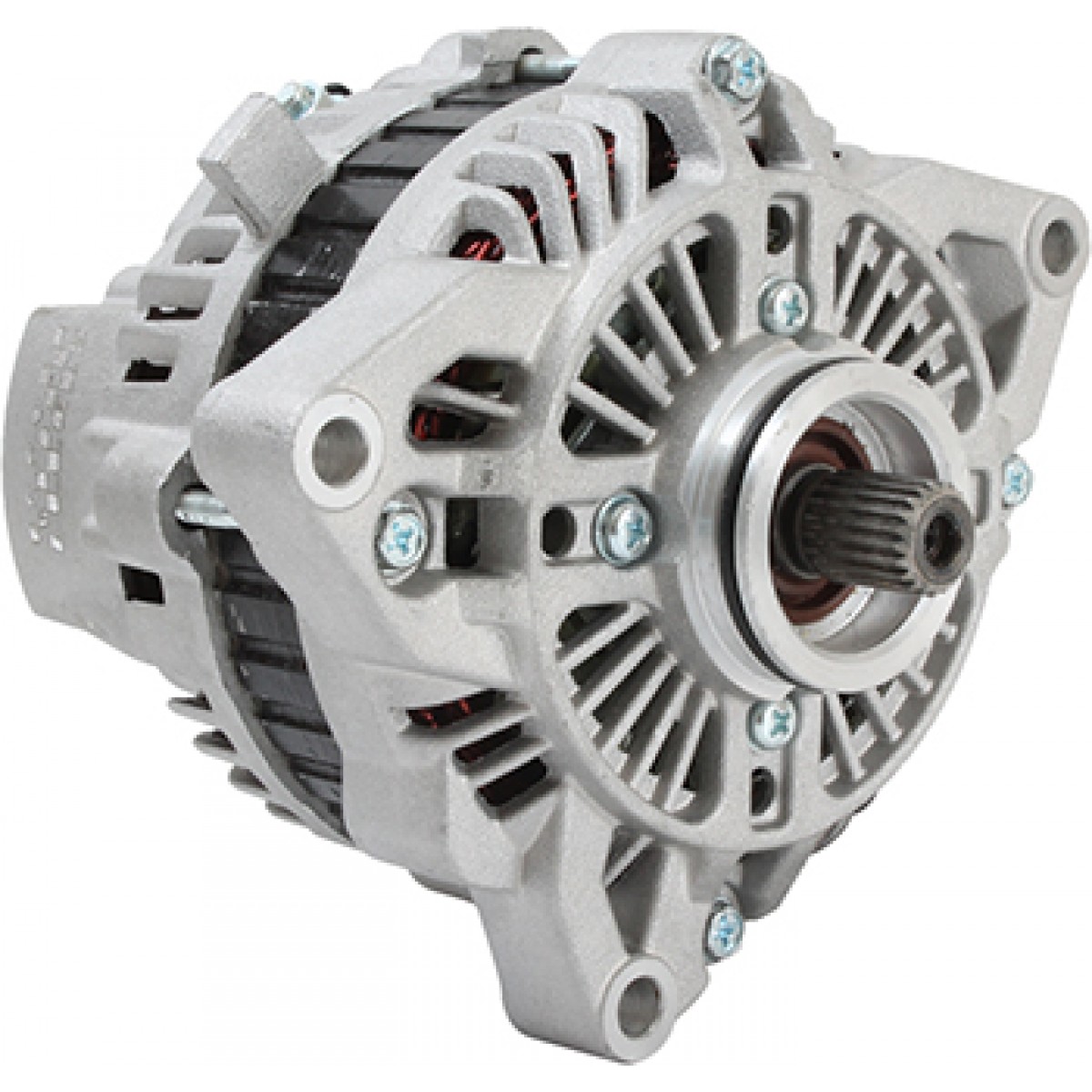

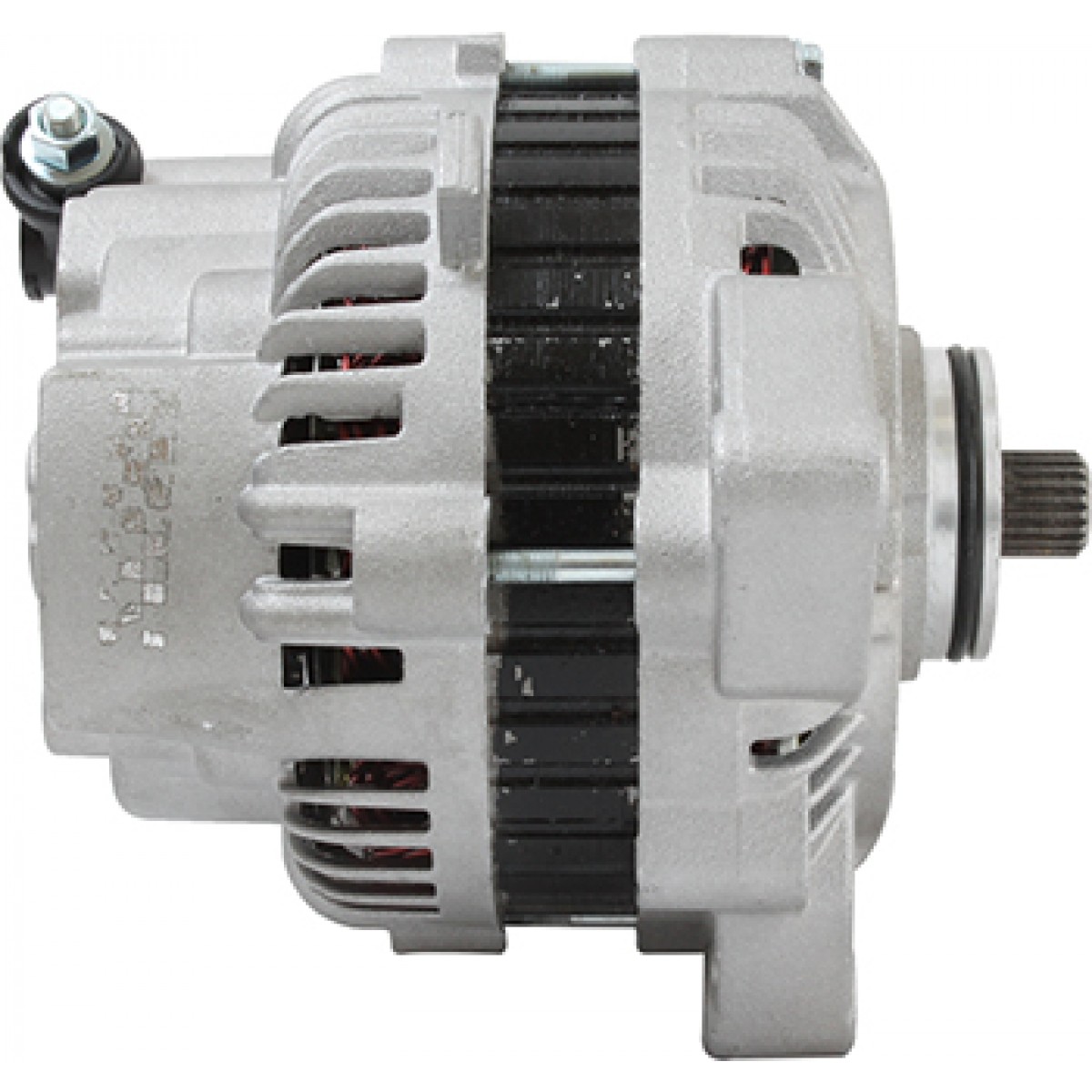

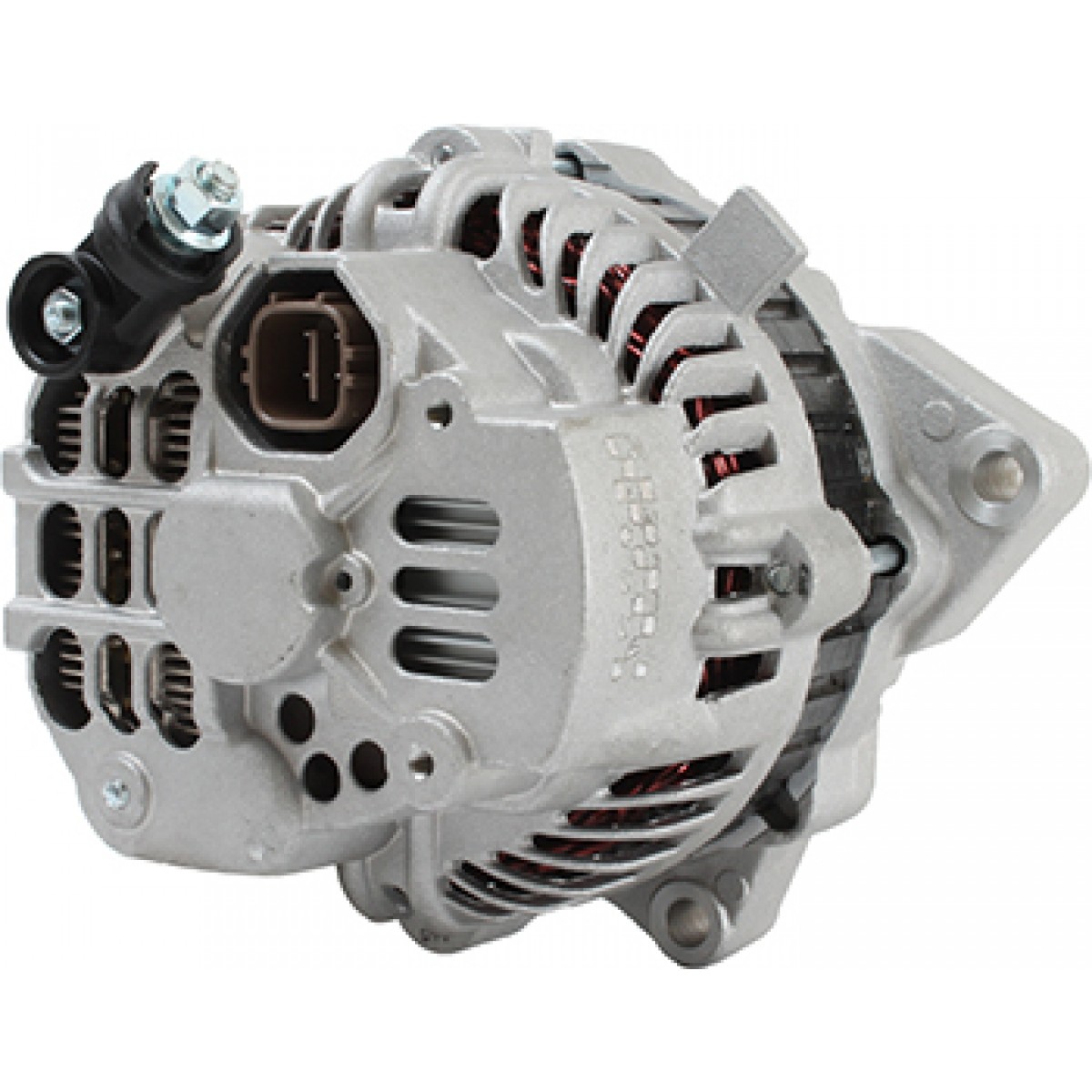

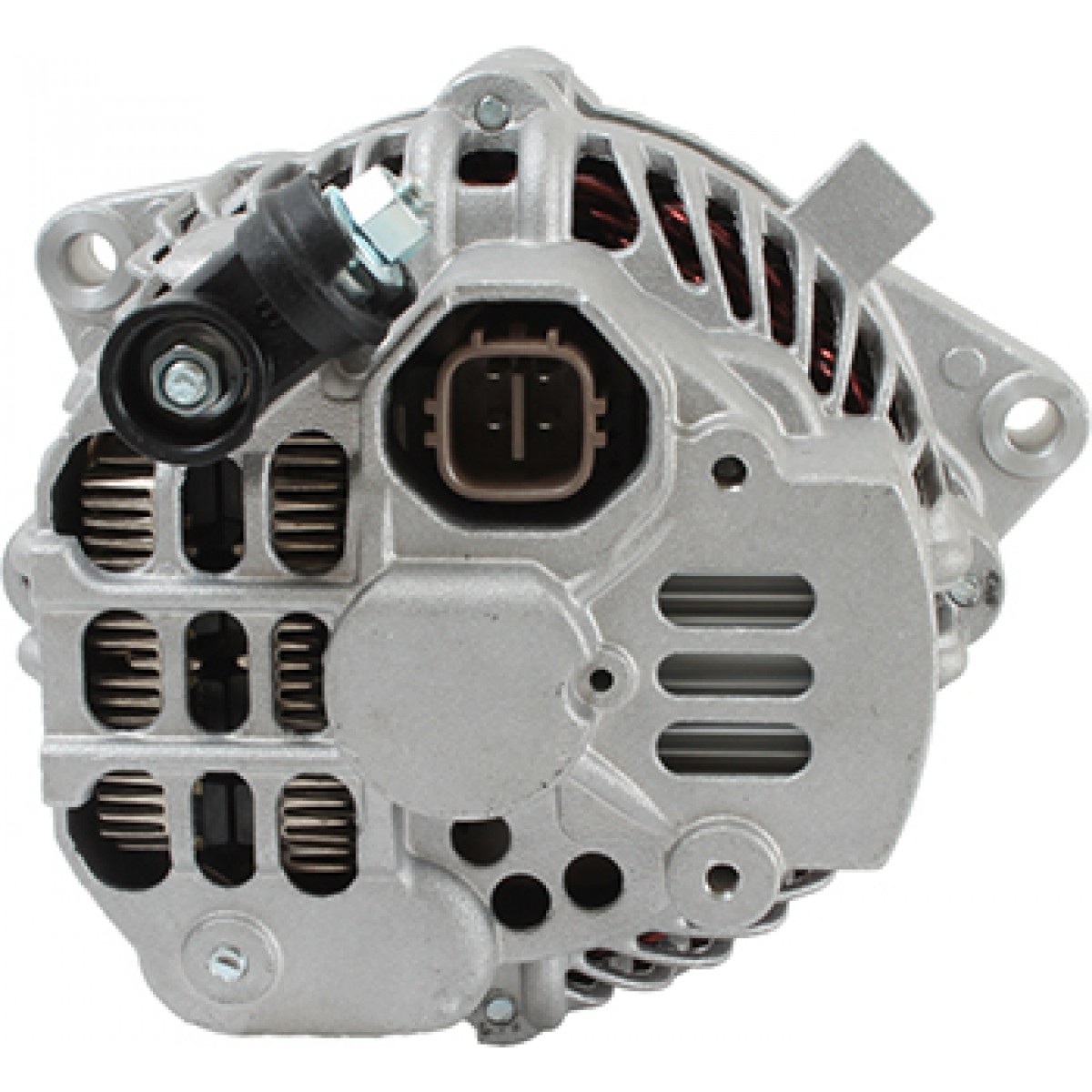

NEW Alternator for HONDA GOLDWING Motorcycles; 400-48174, 31100-MCA-A61, 31100MCA-A61, 31100-MCA-S41, 31100MCA-S41, 31100MCAV-S401, AHGA83, A005TG2079, A5TG2079; LESTER 11536
$259.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 90 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.866″ |
| MOUNTING EAR THICKNESS | 22mm |
| MOUNTING EAR 2 THICKNESS | 0.866″ |
| MOUNTING EAR 2 THICKNESS | 22mm |
| MOUNTING EAR 3 THICKNESS | 0.866″ |
| MOUNTING EAR 3 THICKNESS | 22mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | N/C |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| 16.2mm Diameter 21 Splined Shaft with M6-1.0 Internal Threads |
