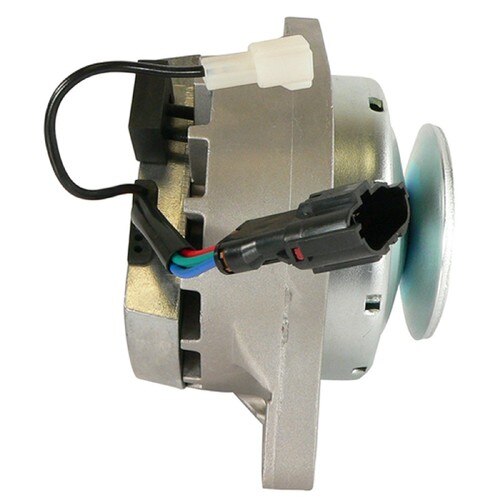

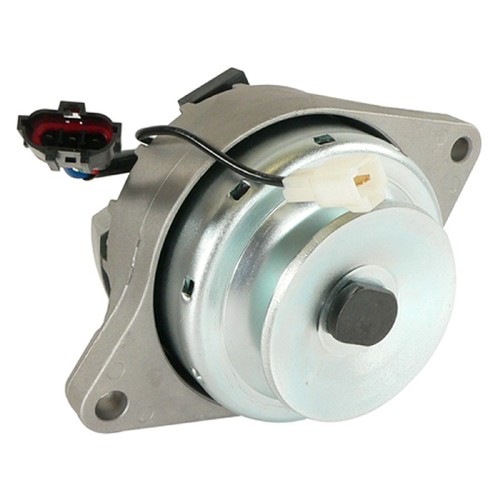

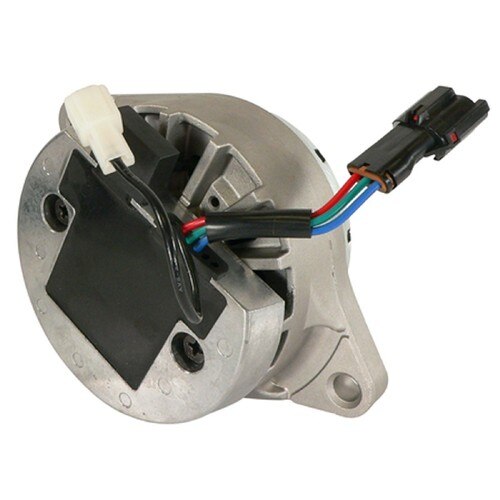

NEW Alternator for ISUZU 4LE1PV01 & 4LE1PV Industrial Engine Applications; 400-58007, 8772952712, 8972268403, 8972268404, 8981565270, GP9906, GP9926, GP992G; LESTER 10931
$214.99
Search: SIMILAR Alt
Specifications
| UNIT TYPE | Alternator |
| PART TYPE | Permanent Magnet Alternator |
| VOLT | 12 |
| AMPS | 20 |
| MOUNT HOLE ID 1 | 8.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.524″ |
| MOUNTING EAR THICKNESS | 13.300mm |
| MOUNTING EAR 2 THICKNESS | 0.606″ |
| MOUNTING EAR 2 THICKNESS | 15.400mm |
| REGULATOR LOCATION | Internal |
| TERMINAL ID | B+ |
| TERMINAL SIZE | 6mm Spade |
| TERMINAL ID 2 | IG |
| TERMINAL 2 SIZE | Spade |
| TERMINAL ID 3 | R |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.929″ |
| PULLEY OUTER DIAMETER | 74.400mm |
| WARRANTY | 1 Year |
| ADD’L INFO | Single wire plug is B+ Three wire plug is: IG (blue), R (green), L (red) |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | APM0004 |
| J & N | 400-58007 |
| ISUZU | 877-295-2712, 8972268403, 897226-840-3, 8972268404, 8981565270 |
| KOKUSAN DENKI | GP9906, GP9926, GP992G |
| LESTER | 10931 |
| MINNPAR | 47-5128 |
| MPA SMALL MOTOR | P888N |
| WILSON | 90-37-1001 |
| WILSON HD | 90-37-1001 |
