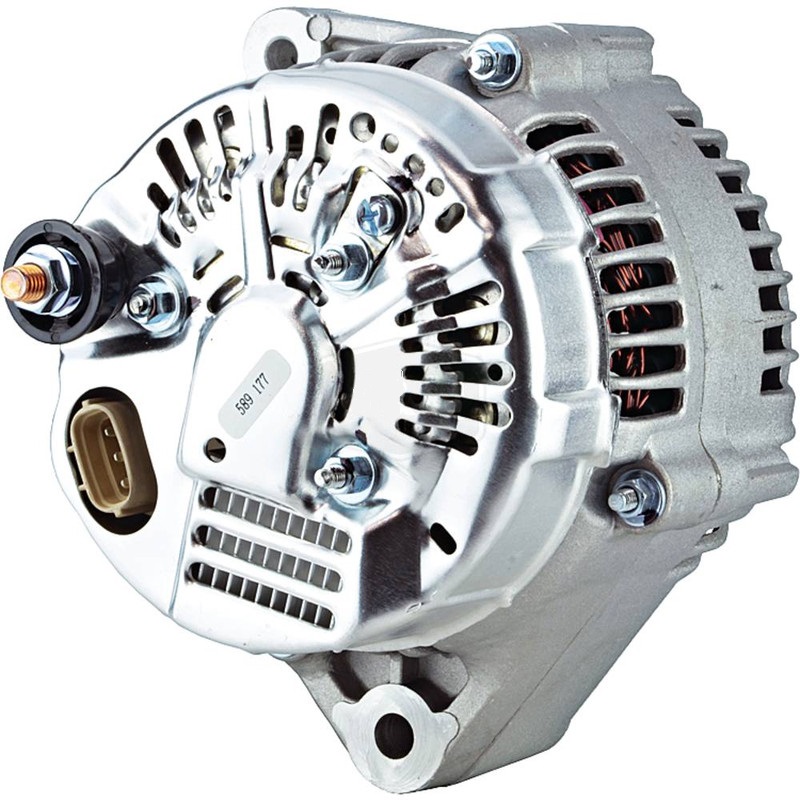

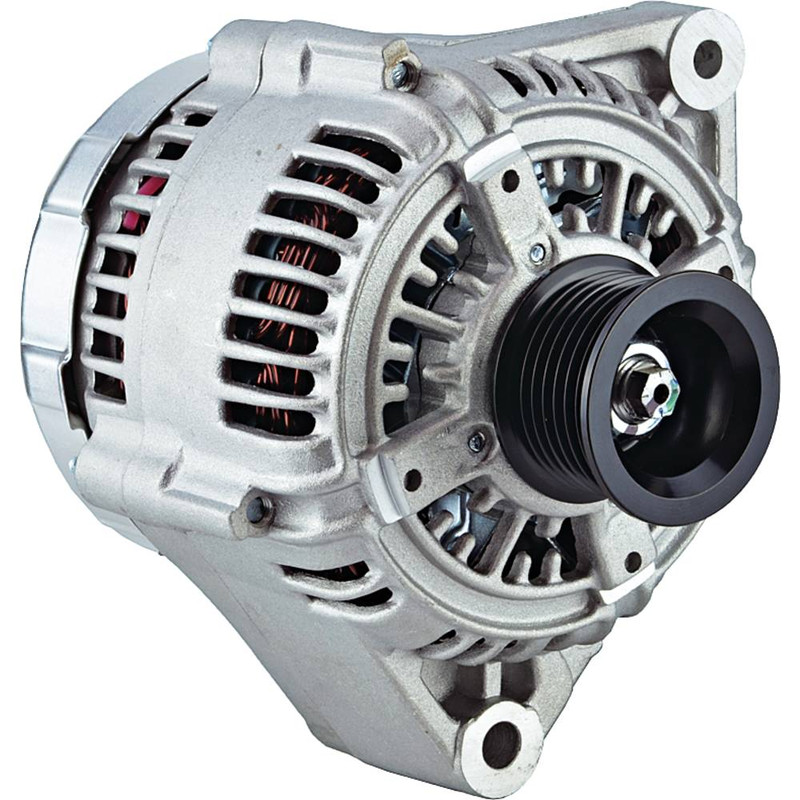

NEW Alternator for JAGUAR VANDEN PLAS, XJ8, XJR, XK8 & XKR; 400-52361, AL9402X, LJA1800, LJA-1800, LJA1800AC,[DENSO 101211-7630, 101211-7631, 101211-7632, 101211-7633, 210-0421]; LESTER 13758
$219.99 $248.59
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 8:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.858″ |
| MOUNTING EAR THICKNESS | 21.800mm |
| MOUNTING EAR 2 THICKNESS | 2.283″ |
| MOUNTING EAR 2 THICKNESS | 58mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | N/C |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | IG |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 7 |
| GROOVE OD | 1.890″ |
| GROOVE OD | 48mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.126″ |
| PULLEY OUTER DIAMETER | 54mm |
