NEW Alternator for JCB Backhoe w/ PERKINS 903-27, 1000-6, 1004-4 Engines; 400-30013, 2871A160, 26045025, 26045057, 714/26100, 714/26100R; LESTER 12365
$219.99
Quality Type: PREMIUM
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Lucas A127 |
| VOLT | 12 |
| AMPS | 70 |
| REGULATOR CLOCK | 9:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.100mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.433″/ 11mm |
| MOUNTING EAR 2 THICKNESS | 0.433″/ 11mm |
| MOUNTING EAR 3 THICKNESS | 0.787″/20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

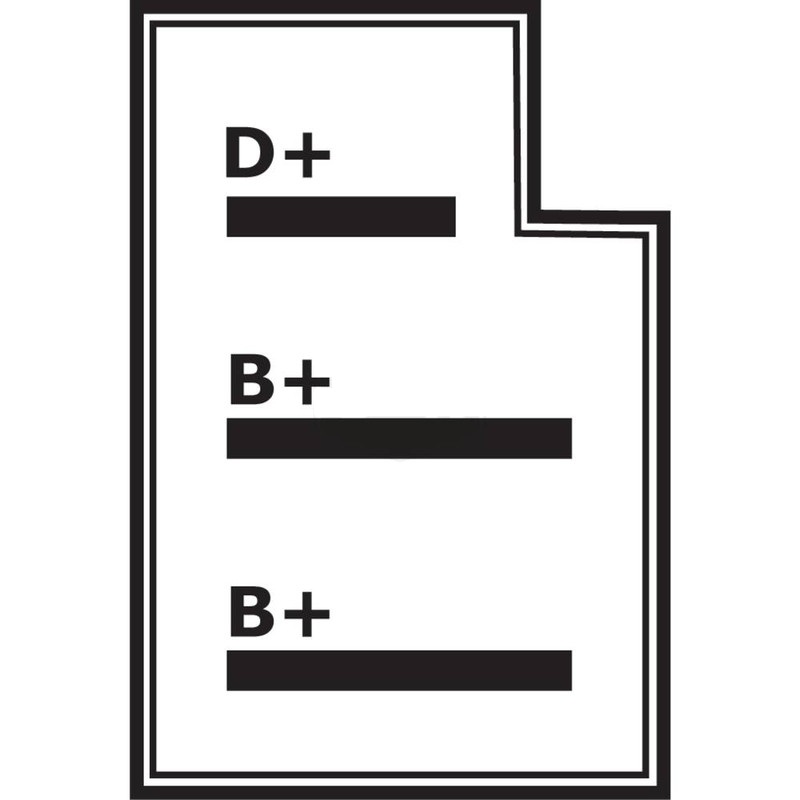

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | W |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | D+ |
| TERMINAL 4 SIZE | 6.5mm Spade |
| TERMINAL ID 5 | B+ |
| TERMINAL 5 SIZE | 9.3mm Spade |
| TERMINAL ID 6 | B+ |
| TERMINAL 6 SIZE | 9.3mm Spade |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.669″/ 17mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-30013, ALU0037 |
| J&N ELECTRICAL PRODUCTS | 400-30027 |
| JCB | 714/26100, 714/26100R |
| LEECE NEVILLE | 20110290 |
| LESTER | 12365 |
| LUCAS ELECTRIC | 24407 |
| LUCAS TVS | 26045025, 26045057 |
| MARELLI | 63324407, MAN817 |
| PERKINS | 2871A160 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Perkins | 1000-6 | 5977cc, 5977cc 6-Cyl | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | 1004-4 | 3980cc, 3980cc 4-Cyl | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | 903-27 | 2699cc, 2699cc 3-Cyl | |
| Perkins | Various Models | 1000-6 (5977cc) 6cy | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | Various Models | 1004-4 (3980cc) 4cy | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Perkins | Various Models | 903-27 (2699cc) 3cy |
