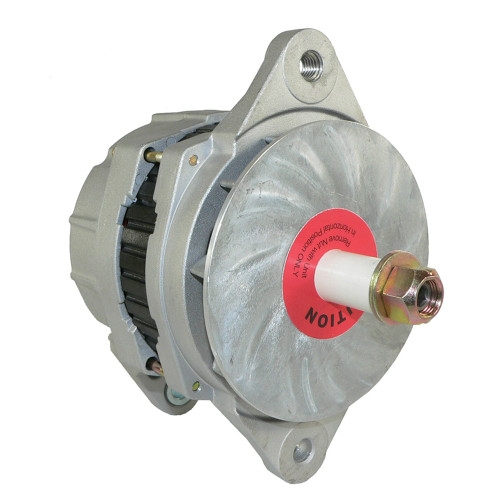

October 2, 2022![NEW Alternator for JOHN DEERE 1058 Forwarder, 608L & 950 Feller Buncher | TUG AC20D, GPU-Magnum | VOLVO EC140, EC210, EC 460 Excavators; 400-12272, F434805, 3675224RX, 3675226RX, [DELCO 10459306, 10459333, 10459468, 19020307, ...]; LESTER 8366, 8367, 8368](https://partszone.ca/wp-content/uploads/2022/10/400-12272.jpg)

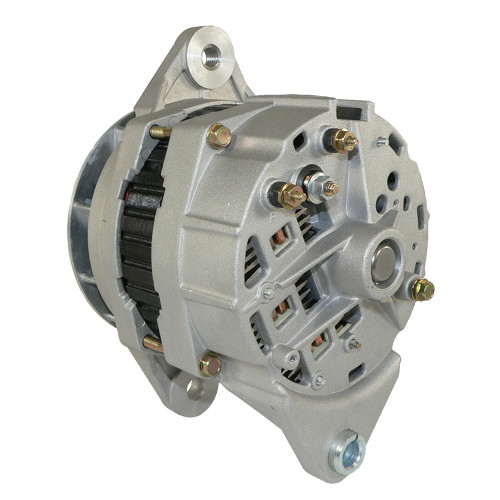

![NEW Alternator for JOHN DEERE 1058 Forwarder, 608L & 950 Feller Buncher | TUG AC20D, GPU-Magnum | VOLVO EC140, EC210, EC 460 Excavators; 400-12272, F434805, 3675224RX, 3675226RX, [DELCO 10459306, 10459333, 10459468, 19020307, ...]; LESTER 8366, 8367, 8368 - Image 2](https://partszone.ca/wp-content/uploads/2022/10/400-12272_b.jpg)
NEW Alternator for JOHN DEERE 1058 Forwarder, 608L & 950 Feller Buncher | TUG AC20D, GPU-Magnum | VOLVO EC140, EC210, EC 460 Excavators; 400-12272, F434805, 3675224RX, 3675226RX, [DELCO 10459306, 10459333, 10459468, 19020307, …]; LESTER 8366, 8367, 8368
$169.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Delco 22SI |
| VOLT | 24 |
| AMPS | 70 |
| REGULATOR CLOCK | 12:00 |
| QUALITY TYPE | Standard |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | I |
| TERMINAL 3 SIZE | M4x0.7 |
| TERMINAL ID 4 | R |
| TERMINAL 4 SIZE | M4x0.7 |
| POLARITY | Negative |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| ARROWHEAD | 400-12171, ADR0271, ADR0306 |
| ATLANTIC QUALITY PARTS | 1400-0539 |
| CLARK EQUIPMENT | 067005243 |
| CUMMINS | 3675224RX, 3675226RX, 3675242, 3675242RX, 3935530, 3935531, 4003446 |
| DELCO | 10459306, 10459333, 10459468, 19020307, 19020311, 19020346, 19020366, 19020376, 19020382, 19020383, 19020391 |
| DRESSER | 1305787H91 |
| J&N ELECTRICAL PRODUCTS | 400-12171, 400-12272, 400-12357R |
| JANNCO | 400-12171R |
| JOHN DEERE | F434805 |
| KOMATSU | 1305787H91, ALT1025 |
| LESTER | 8366, 8367, 8368 |
| LUCAS ELECTRIC | LRA02997, LRA03945 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Cummins | K Series | 1991, 1992 | |
| John Deere | 1058 | Cummins Engine | |
| John Deere | 1058 | ||
| John Deere | 608L | All | |
| John Deere | 608L | ||
| John Deere | 608S | 6081H Diesel | |
| John Deere | 753G | 6081H Diesel | |
| John Deere | 753G | 6081H Diesel | |
| John Deere | 753GL | All | |
| John Deere | 753GL | ||
| John Deere | 850 | All | |
| John Deere | 850 | ||
| John Deere | 853G | 6081H Diesel | |
| John Deere | 950 | All | |
| John Deere | 950 | ||
| John Deere | 953G | 6081H Diesel | |
| John Deere | 953G | 6081H Diesel | |
| Timberjack | 2618 | Cummins 8.3L Diesel | |
| Timberjack | 2628 | Cummins 8.3L Diesel | |
| Timberjack | 608 | Cummins 5.9L Diesel | |
| Timberjack | 618 | Cummins 8.3L Diesel | |
| Timberjack | 628 | Cummins 8.3L Diesel | |
| Tug | AC20D | Cummins B3. | |
| Tug | DEH-30 Heater | Cummins B3. | |
| Tug | GPU 400-60 | Cummins B3.9 Tier | |
| Tug | GPU-Magnum | Cummins B3.9 Tier | |
| Volvo | EC140 | Cummins B3-9 | |
| Volvo | EC210 | Cummins B5-9 | |
| Volvo | EC240 | Cummins C8-3 | |
| Volvo | EC290 | Cummins C8-3 | |
| Volvo | EC360 | Cummins M11 | |
| Volvo | EC460 | Cummins M11 |
