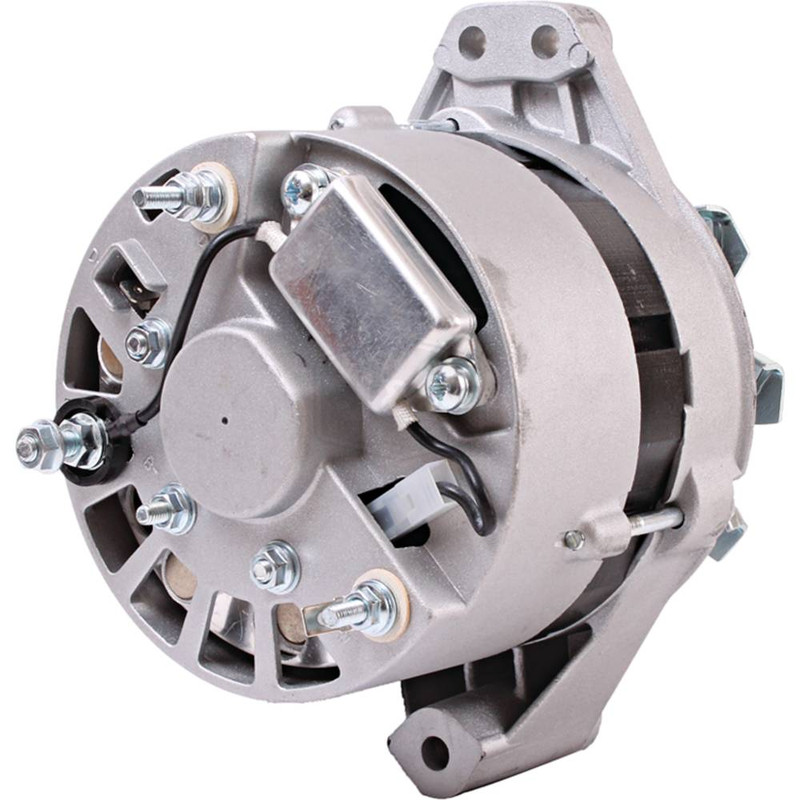

NEW Alternator for JOHN DEERE 240, 250, 260, CD3029DF, CD4039DF, CD4045TF, CD6059TF, CD6068TF Applications; 400-42008, RE506197, SE501828, 443-113-515-765, 9-515-765; LESTER 12366

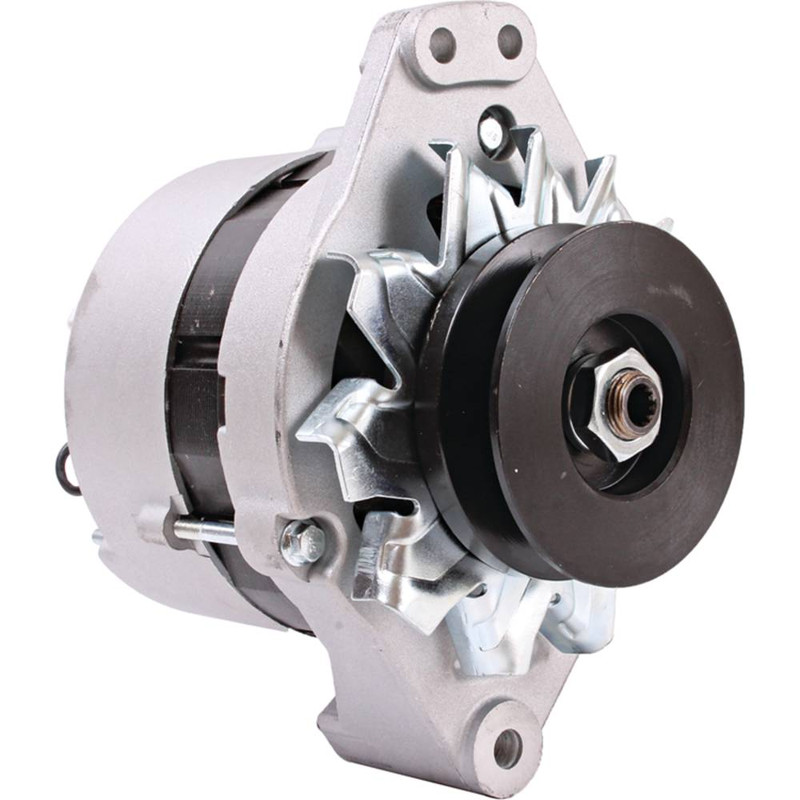

NEW Alternator for JOHN DEERE 240, 250, 260, CD3029DF, CD4039DF, CD4045TF, CD6059TF, CD6068TF Applications; 400-42008, RE506197, SE501828, 443-113-515-765, 9-515-765; LESTER 12366 - Image 2

NEW Alternator for JOHN DEERE 240, 250, 260, CD3029DF, CD4039DF, CD4045TF, CD6059TF, CD6068TF Applications; 400-42008, RE506197, SE501828, 443-113-515-765, 9-515-765; LESTER 12366

$179.99

Categories: , , ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 55
REGULATOR CLOCK 2:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 8.100mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.200mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.642″
MOUNTING EAR THICKNESS 16.300mm
MOUNTING EAR 2 THICKNESS 0.642″
MOUNTING EAR 2 THICKNESS 16.300mm
MOUNTING EAR 3 THICKNESS 2.201″
MOUNTING EAR 3 THICKNESS 55.900mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 D+
TERMINAL 4 SIZE Spade
TERMINAL ID 5 W
TERMINAL 5 SIZE M5x0.8 Spade Combo
TERMINAL ID 6 B-
TERMINAL 6 SIZE M5x0.8
POLARITY Negative
NUMBER OF GROOVES 1
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 3.346″
PULLEY OUTER DIAMETER 85mm
