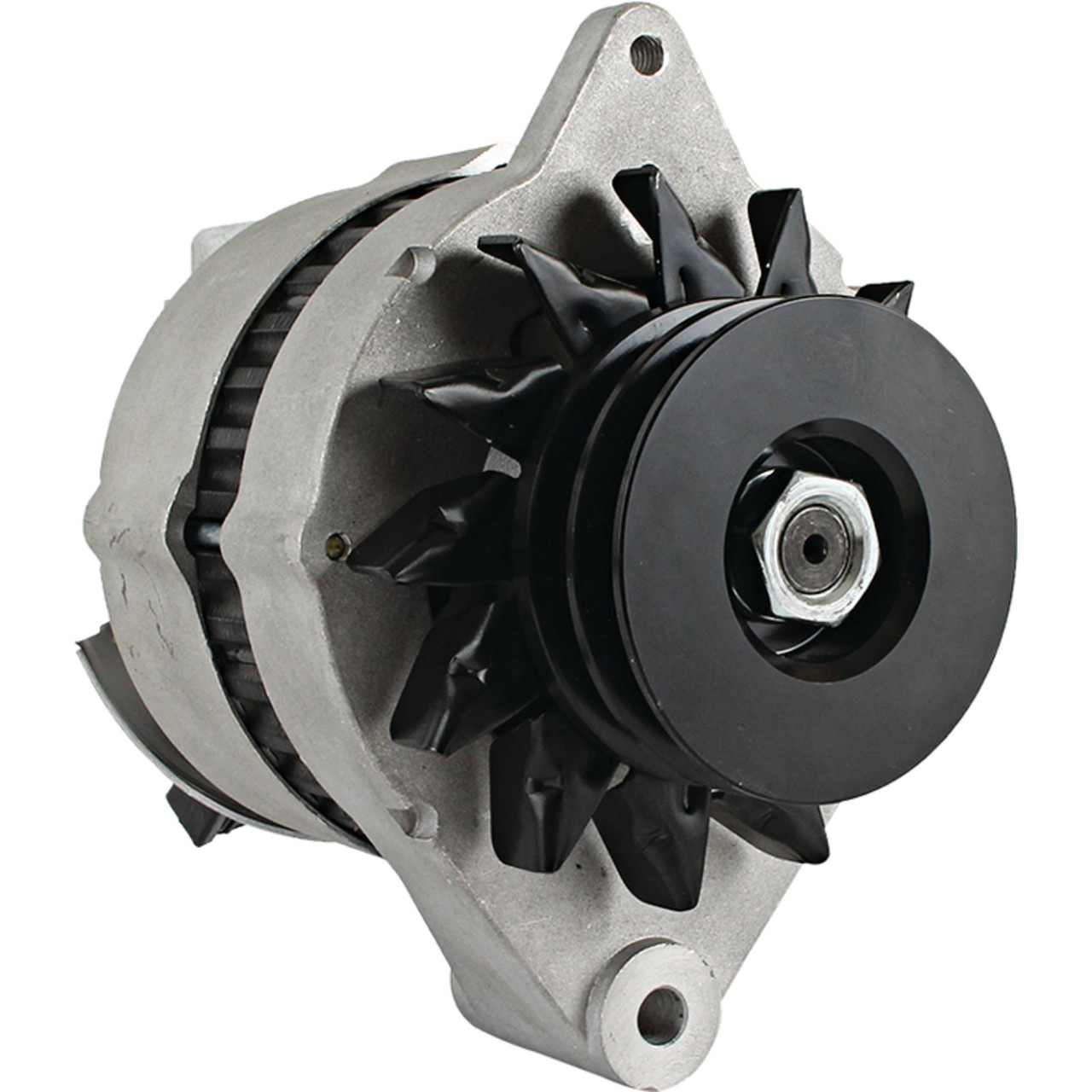

NEW Alternator for JOHN DEERE 500C, JD500, JD500A & JD500B Tractor – Backhoe; 400-16137, AR15009, AR40257, AR41592, AR42110, AR43632, AT27827; LESTER 7354
$229.99
Specifications
| UNIT TYPE |
Alternator |
| FAMILY |
Leece Neville 8AL/8AR |
| VOLT |
12 |
| AMPS |
51 |
| MOUNT HOLE ID 1 |
5/16-18 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
3/8 |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.445″ |
| MOUNTING EAR THICKNESS |
11.300mm |
| MOUNTING EAR 2 THICKNESS |
2″ |
| MOUNTING EAR 2 THICKNESS |
50.800mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
1/4-20 |

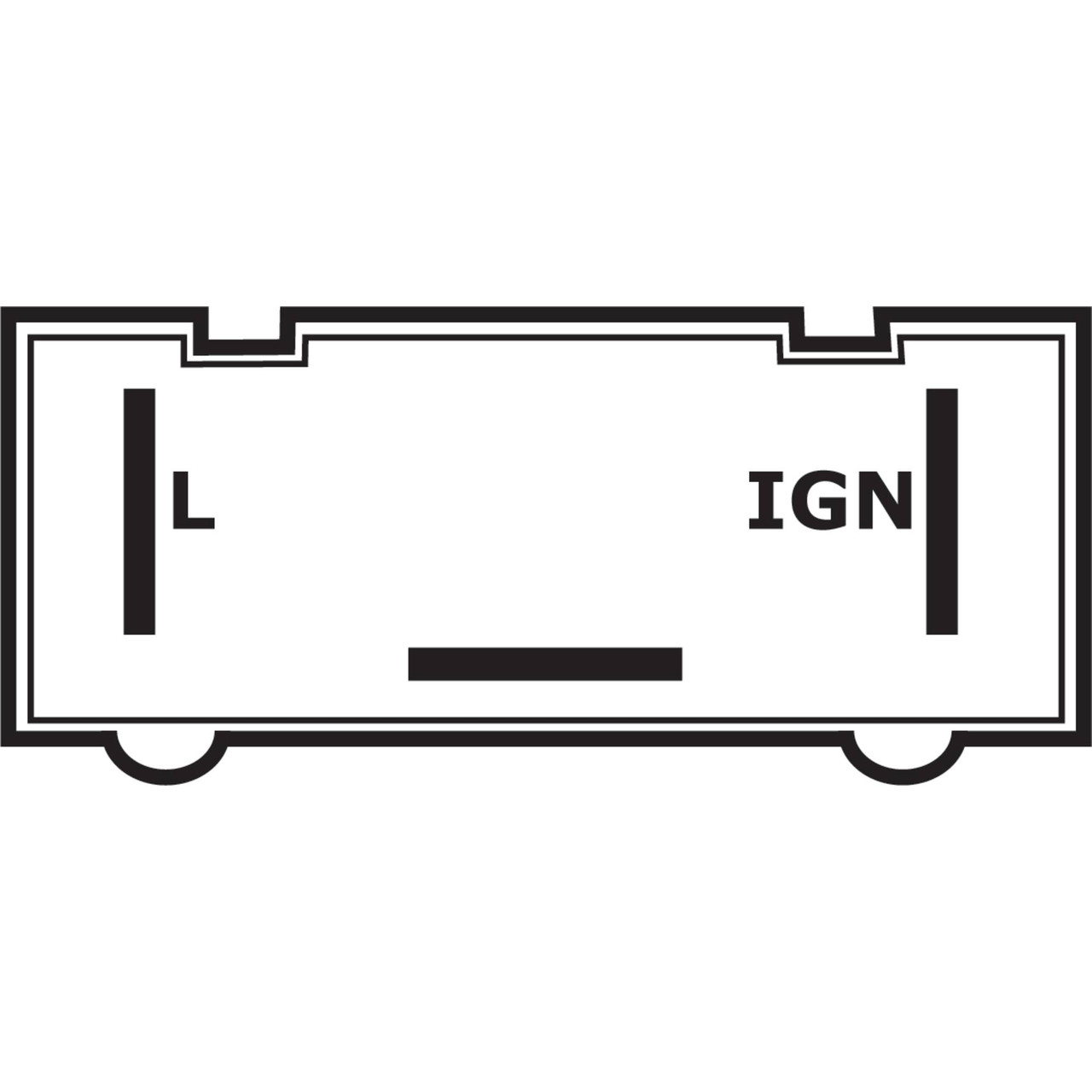

| TERMINAL ID 3 |
L |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
I |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
R |
| TERMINAL 5 SIZE |
10-24 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
2 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
3.209″ |
| PULLEY OUTER DIAMETER |
81.500mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AMO0089 |
| J&N ELECTRICAL PRODUCTS |
400-16137 |
| JOHN DEERE |
AR15009, AR40257, AR41592, AR42110, AR43632, AT27827 |
| LEECE NEVILLE |
A12NJD602, RA12N55JD1, RA12N55JD5, RA12N55JD8 |
| LESTER |
7354 |
| MOTOROLA |
A12NJD602, RA12N55-JD1, RA12N55-JD5, RA12N55-JD8 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| John Deere |
500C |
Diesel Engine |
1965, 1966, 1967 |
| John Deere |
JD500 |
Gas Engine |
1965, 1966, 1967 |
| John Deere |
JD500A |
Gas Engine |
1967, 1968, 1969, 1970 |
| John Deere |
JD500B |
Gas Engine |
1969, 1970 |
